Timing And Valve Train Timing Chain

Rolls Royce Phantom RR11(2017-2023)

Find Your Part

Rolls Royce Phantom RR11(2017-2023) - Timing and valve train timing chain

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11318661671 Timing chain with tensioning rail $148.76 To Order
Photo Part No Description Price (each) Stock
11318661670 Timing chain with tensioning rail $148.76 To Order
Photo Part No Description Price (each) Stock
11217571037 Sprocket $45.12 To Order
Photo Part No Description Price (each) Stock
7119951453 Woodruff key $1.22 IN STOCK
Photo Part No Description Price (each) Stock
11367567499 Adjustment unit, outlet camshaft $647.56 To Order
Photo Part No Description Price (each) Stock
11367598001 Adjustment unit, inlet camshaft $647.56 To Order
Photo Part No Description Price (each) Stock
11367598002 Adjustment unit, outlet camshaft $647.56 To Order
Photo Part No Description Price (each) Stock
11367564346 Central screw $4.22 To Order
Photo Part No Description Price (each) Stock
11317557741 Chain tensioner $123.42 To Order
Photo Part No Description Price (each) Stock
11317574338 Guide rail $48.28 To Order
Photo Part No Description Price (each) Stock
11317574334 Guide rail $48.28 To Order
Photo Part No Description Price (each) Stock
11317584403 Bearing screw, self-locking $9.95 To Order
Photo Part No Description Price (each) Stock
11317560666 Bearing screw $12.43 To Order
Photo Part No Description Price (each) Stock
11317504455 Torx bolt $9.37 To Order
Photo Part No Description Price (each) Stock
11317584402 Bearing screw, self-locking $4.97 To Order
Photo Part No Description Price (each) Stock
11317582925 Bearing screw $9.95 To Order
Photo Part No Description Price (each) Stock
11317574336 Slide rail $48.28 To Order
Photo Part No Description Price (each) Stock
11127570995 ISA screw $1.40 To Order
Photo Part No Description Price (each) Stock
11147574332 Chain guide $48.72 To Order
Photo Part No Description Price (each) Stock
7119905400 Hex Bolt with washer M6 x 25 $0.85 IN STOCK
View All

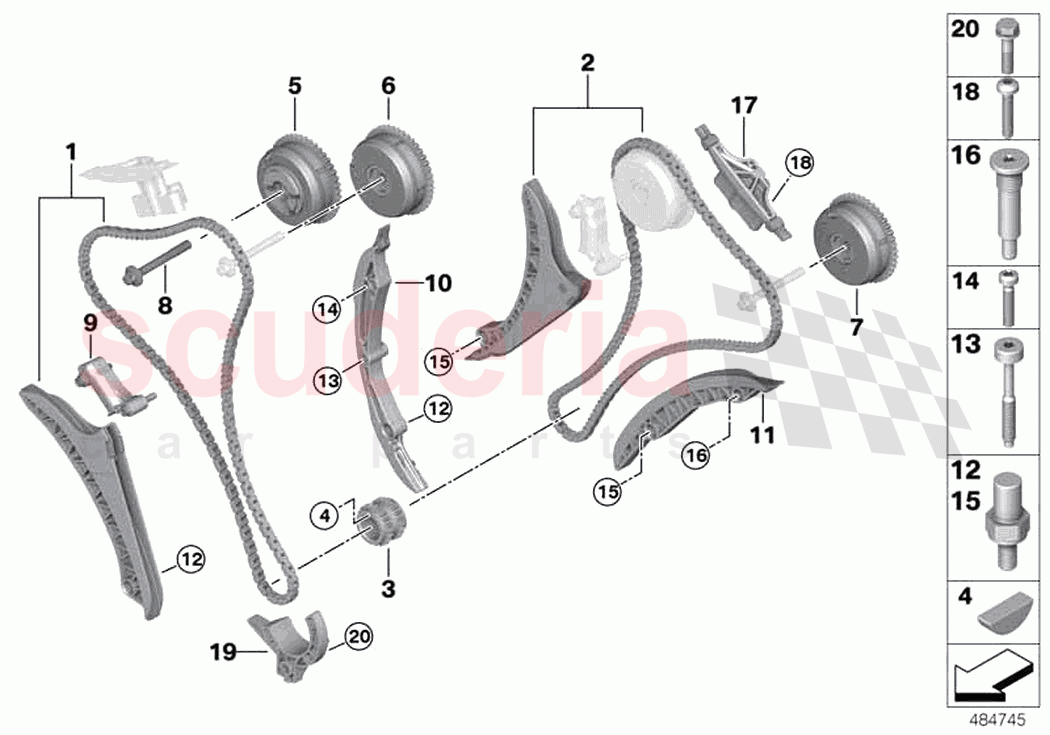

Timing and valve train timing chain of Rolls Royce Rolls Royce Phantom RR11(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 11318661671
Timing chain with tensioning rail
ZYL. 1-6 		$148.76 1
02 11318661670
Timing chain with tensioning rail
ZYL. 7-12 		$148.76 1
03 11217571037
Sprocket 		$45.12 1
04 7119951453
Woodruff key
4X5
IN STOCK 		$1.22 1
05 11367567499
Adjustment unit, outlet camshaft
ZYL. 1-6 		$647.56 1
06 11367598001
Adjustment unit, inlet camshaft 		$647.56 2
07 11367598002
Adjustment unit, outlet camshaft 		$647.56 1
08 11367564346
Central screw
M10X1X80 		$4.22 4
09 11317557741
Chain tensioner 		$123.42 2
10 11317574338
Guide rail 		$48.28 1
11 11317574334
Guide rail 		$48.28 1
12 11317584403
Bearing screw, self-locking 		$9.95 2
13 11317560666
Bearing screw 		$12.43 1
14 11317504455
Torx bolt
M8X38 		$9.37 1
15 11317584402
Bearing screw, self-locking 		$4.97 2
16 11317582925
Bearing screw 		$9.95 1
17 11317574336
Slide rail 		$48.28 2
18 11127570995
ISA screw
M7X45-8.8 		$1.40 4
19 11147574332
Chain guide 		$48.72 1
20 7119905400
Hex Bolt with washer M6 x 25
M6X25-ZNNIV SI
IN STOCK 		$0.85 1
