Name: Transfer case single parts ATC 13
Rating: 4.3 (1 reviews)

View All

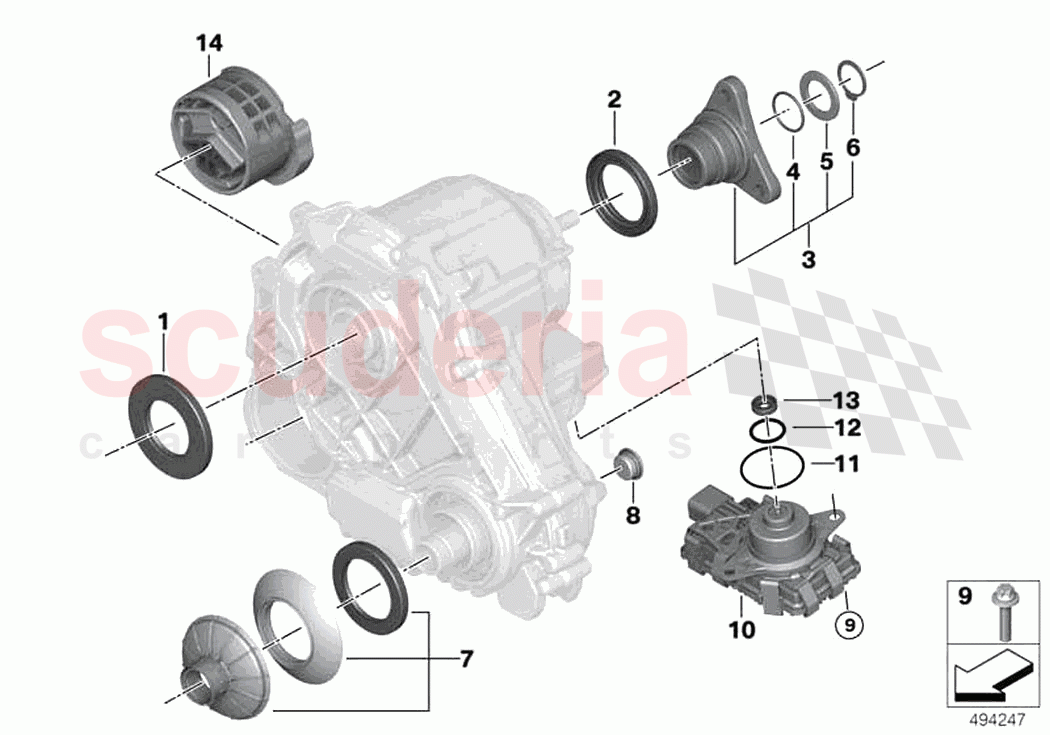

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	27108642594	Shaft seal	$47.72	To Order

Photo	Part No	Description	Price (each)	Stock
	27108642593	Shaft seal	$37.48	To Order

Photo	Part No	Description	Price (each)	Stock
	27107593440	Output flange set	$311.50	To Order

Photo	Part No	Description	Price (each)	Stock
	27107599326	O-ring	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	27107546670	Spacer rings set	$212.47	To Order

Photo	Part No	Description	Price (each)	Stock
	27107539525	Lock Ring	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	27108686654	Set of centrifugal discs	$97.63	To Order

Photo	Part No	Description	Price (each)	Stock
	33117525064	Screw plug with O-ring	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock
	27108637596	ASA-Bolt	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	27609469023	Longitudinal torque module	$1,692.48	To Order

Photo	Part No	Description	Price (each)	Stock
	27108637595	O-ring	$4.56	To Order

Photo	Part No	Description	Price (each)	Stock
	27108637594	O-ring	$4.56	To Order

Photo	Part No	Description	Price (each)	Stock
	27108642597	Shaft seal	$23.88	To Order

Photo	Part No	Description	Price (each)	Stock
	22326866514	Gearbox mount	$106.43	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	27108642594	Shaft seal	27108642594 Shaft seal 49,6X90X7,7	$47.72	1
2	27108642593	Shaft seal	27108642593 Shaft seal 52X75X8/12	$37.48	1
3	27107593440	Output flange set	27107593440 Output flange set LK=105MM	$311.50	1
4	27107599326	O-ring	27107599326 O-ring 31X2,5	$9.10	1
5	27107546670	Spacer rings set	27107546670 Spacer rings set	$212.47	1
6	27107539525	Lock Ring	27107539525 Lock Ring 28X2	$9.10	1
7	27108686654	Set of centrifugal discs	27108686654 Set of centrifugal discs ATC13	$97.63	1
8	33117525064	Screw plug with O-ring	33117525064 Screw plug with O-ring M22X1,5-ZNS3	$6.37	1
9	27108637596	ASA-Bolt	27108637596 ASA-Bolt M8X30-10.9	$4.68	2
10	27609469023	Longitudinal torque module	27609469023 Longitudinal torque module ATC13	$1,692.48	1
11	27108637595	O-ring	27108637595 O-ring 48X2,3	$4.56	1
12	27108637594	O-ring	27108637594 O-ring 23,8X3,1	$4.56	1
13	27108642597	Shaft seal	27108642597 Shaft seal 7.8X21X6	$23.88	1
14	22326866514	Gearbox mount	22326866514 Gearbox mount	$106.43	1

Transfer Case Single Parts Atc 13

Rolls Royce Ghost Extended RR22(2019-2023)
