Name: Armrest centre console
Rating: 4.7 (1 reviews)

View All

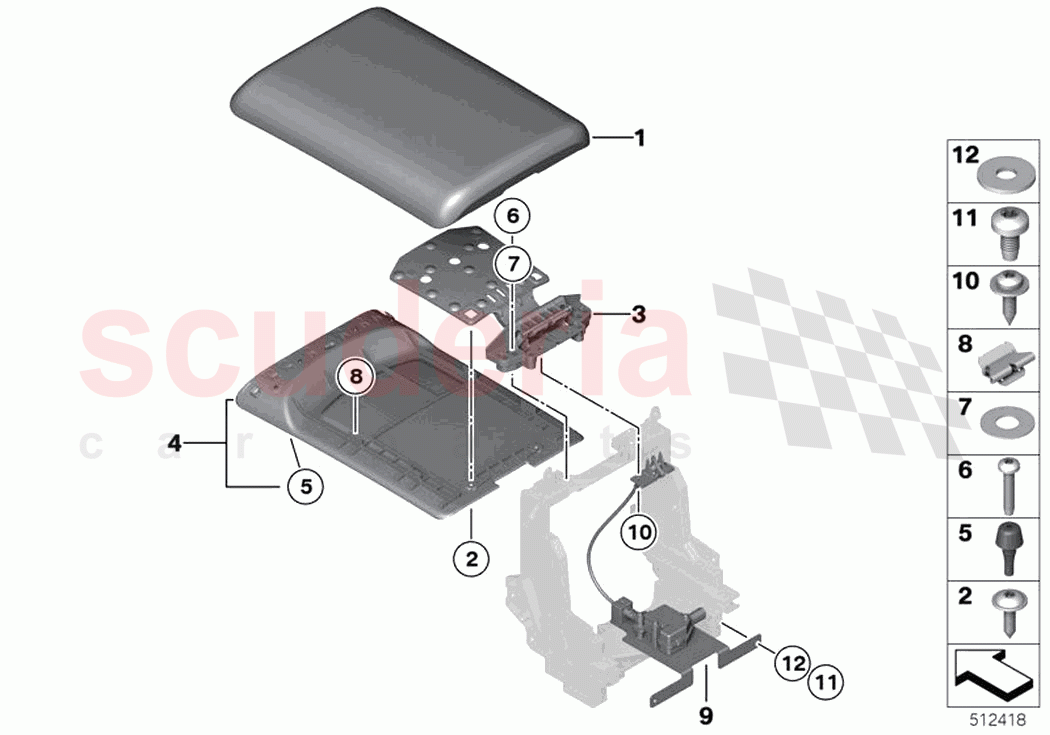

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169224534	Cover, centre arm rest	$933.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122392	Fillister head screw	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	51169156903	Hinge, centre armrest	$502.92	To Order

Photo	Part No	Description	Price (each)	Stock
	51169156904	Center armrest trim panel	$181.04	To Order

Photo	Part No	Description	Price (each)	Stock
	51169356180	Rubber buffer	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7149187248	Fillister head screw	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7147135526	Washer	$2.18	To Order

Photo	Part No	Description	Price (each)	Stock
	7149187247	Clamp	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	51169311901	Locking mechanism	$362.86	To Order

Photo	Part No	Description	Price (each)	Stock
	7147154525	Combi. fillister head self-tapping screw	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7147148547	Fillister head screw	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905969	Washer	$1.61	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51169224534	Cover, centre arm rest	51169224534 Cover, centre arm rest COLOUR NEUTRAL	$933.30	1
2	7147122392	Fillister head screw	7147122392 Fillister head screw	$1.54	2
3	51169156903	Hinge, centre armrest	51169156903 Hinge, centre armrest	$502.92	1
4	51169156904	Center armrest trim panel	51169156904 Center armrest trim panel	$181.04	1
5	51169356180	Rubber buffer	51169356180 Rubber buffer	$3.30	4
6	7149187248	Fillister head screw	7149187248 Fillister head screw 12X30	$1.68	2
7	7147135526	Washer	7147135526 Washer 6,4X15X0,5-ZNS3	$2.18	2
8	7149187247	Clamp	7149187247 Clamp	$2.04	4
9	51169311901	Locking mechanism	51169311901 Locking mechanism	$362.86	1
10	7147154525	Combi. fillister head self-tapping screw	7147154525 Combi. fillister head self-tapping screw	$1.54	2
11	7147148547	Fillister head screw	7147148547 Fillister head screw M4X8	$1.54	2
12	7119905969	Washer	7119905969 Washer 6,4X18X1,6	$1.61	2

Armrest Centre Console

Rolls Royce Dawn RR6(2017-2023)
