Name: Hydro steering oil pipes
Rating: 4.1 (1 reviews)

Hydro steering oil pipes of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

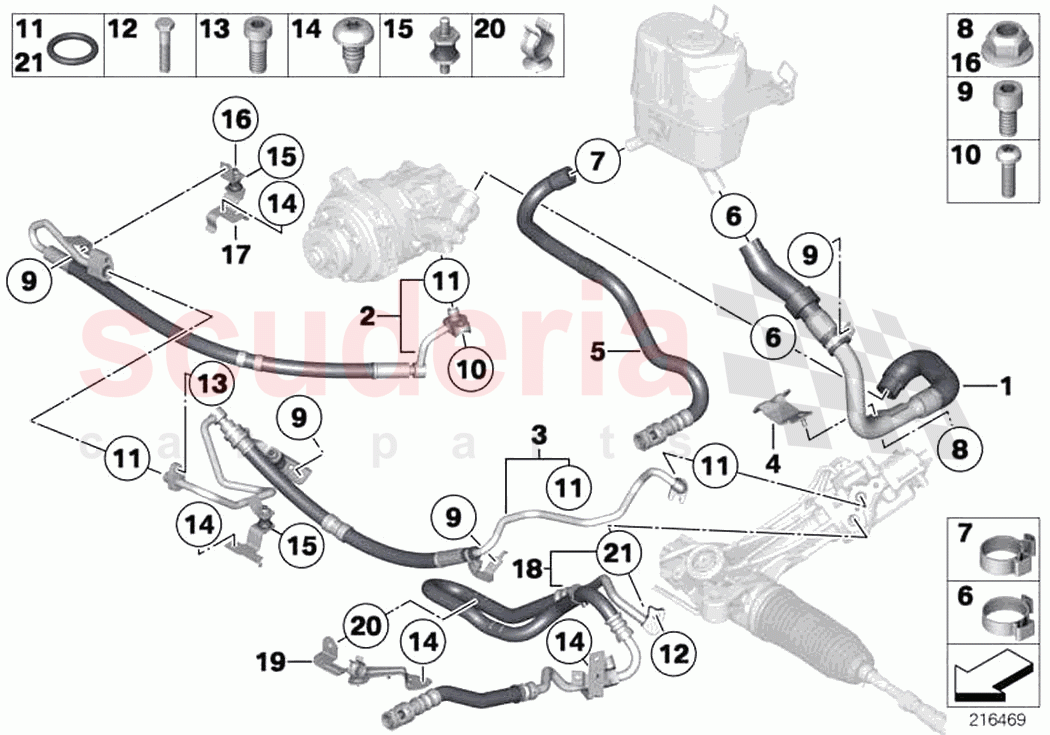

Rolls Royce Dawn RR6(2017-2023) - Hydro steering oil pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	32416850664	Suction pipe	$670.71	To Order

Photo	Part No	Description	Price (each)	Stock
	32416782509	Expansion hose 1st part	$528.02	To Order

Photo	Part No	Description	Price (each)	Stock
	32416869228	Expansion hose 2nd part	$751.01	To Order
	32416869101	Expansion hose 2nd part	$737.71	To Order

Photo	Part No	Description	Price (each)	Stock
	32416782508	Holder, suction line, steering	$31.21	To Order

Photo	Part No	Description	Price (each)	Stock
	32416795453	Radiator return line	$338.74	To Order

Photo	Part No	Description	Price (each)	Stock
	32416763470	Hose clamp	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	32416751127	Hose clamp	$2.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7119905949	Hex nut with plate	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7129905867	ISA screw	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	32416783049	ISA screw	$6.65	To Order

Photo	Part No	Description	Price (each)	Stock
	32416788696	O-ring	$9.09	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902910	Hex Bolt	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904375	Fillister head screw	$0.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	31146786689	Torx screw, self-tapping	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	32416769256	Rubber mounting	$12.26	To Order

Photo	Part No	Description	Price (each)	Stock
	32416792820	Bracket, expansion hose	$91.63	To Order

Photo	Part No	Description	Price (each)	Stock
	32416795316	Return pipe	$957.92	To Order
	32416798099	Return pipe	$722.47	To Order

Photo	Part No	Description	Price (each)	Stock
	32416792821	Holder, return line	$27.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11727511099	Hose clamp	$5.80	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	32416850664	Suction pipe	32416850664 Suction pipe	$670.71	1
2	32416782509	Expansion hose 1st part	32416782509 Expansion hose 1st part PART 1	$528.02	1
3	32416869228	Expansion hose 2nd part	32416869228 Expansion hose 2nd part PART 2	$751.01	1
3	32416869101	Expansion hose 2nd part	32416869101 Expansion hose 2nd part PART 2	$737.71	1
4	32416782508	Holder, suction line, steering	32416782508 Holder, suction line, steering	$31.21	1
5	32416795453	Radiator return line	32416795453 Radiator return line	$338.74	1
6	32416763470	Hose clamp	32416763470 Hose clamp D= 25MM	$4.10	2
7	32416751127	Hose clamp IN STOCK	32416751127 Hose clamp IN STOCK	$2.26	1
8	7119905949	Hex nut with plate IN STOCK	7119905949 Hex nut with plate M6-8-ZNNIV SI IN STOCK	$0.76	1
9	7129905867	ISA screw	7129905867 ISA screw M6X12-8.8-ZNNIV	$0.85	3
10	32416783049	ISA screw	32416783049 ISA screw M8X25-10.9	$6.65	1
11	32416788696	O-ring	32416788696 O-ring 11X1,8 HNBR	$9.09	3
12	7119902910	Hex Bolt	7119902910 Hex Bolt M8X40-8.8-ZNS3	$2.65	1
13	7119904375	Fillister head screw IN STOCK	7119904375 Fillister head screw M8X20-8.8-ZNS3 IN STOCK	$0.90	1
14	31146786689	Torx screw, self-tapping	31146786689 Torx screw, self-tapping M6X13-ZNNIVSI	$1.54	4
15	32416769256	Rubber mounting	32416769256 Rubber mounting H=17	$12.26	3
17	32416792820	Bracket, expansion hose	32416792820 Bracket, expansion hose	$91.63	1
18	32416795316	Return pipe	32416795316 Return pipe	$957.92	1
18	32416798099	Return pipe	32416798099 Return pipe	$722.47	1
19	32416792821	Holder, return line	32416792821 Holder, return line	$27.92	1
20	11727511099	Hose clamp	11727511099 Hose clamp	$5.80	2

Hydro Steering Oil Pipes

Rolls Royce Dawn RR6(2017-2023)

Rolls Royce Dawn RR6(2017-2023) - Hydro steering oil pipes
