Rear Axle Support Wheel Suspension

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Rear axle support wheel suspension

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
33326863843 Wheel carrier, rear left $669.08 To Order
33326863844 Wheel carrier, rear right $669.08 To Order
Photo Part No Description Price (each) Stock
33306786218 Hex Bolt with washer $12.89 To Order
Photo Part No Description Price (each) Stock
7119906287 Self-locking hex nut $2.81 IN STOCK
Photo Part No Description Price (each) Stock
33326782131 Wishbone, left $475.19 To Order
33326782132 Wishbone, right $475.19 To Order
Photo Part No Description Price (each) Stock
7146888627 Eccentric bolt $11.72 To Order
Photo Part No Description Price (each) Stock
31106890194 Hexagon nut with collar $5.10 To Order
Photo Part No Description Price (each) Stock
33326775902 Track strut with rubber mount $190.08 To Order
Photo Part No Description Price (each) Stock
7119906489 Hexagon screw with flange $2.81 To Order
Photo Part No Description Price (each) Stock
33326865897 Left swing part $937.94 To Order
33326865898 Right swing part $937.94 To Order
Photo Part No Description Price (each) Stock
33326780438 Ball joint $106.38 To Order
Photo Part No Description Price (each) Stock
33321091687 Snap ring $4.56 To Order
Photo Part No Description Price (each) Stock
31106786144 Hexagon collar screw $11.72 To Order
Photo Part No Description Price (each) Stock
33326775683 Integral link $118.80 To Order
Photo Part No Description Price (each) Stock
33306793891 Securing bolt $4.22 To Order
Photo Part No Description Price (each) Stock
33326764927 Hex screw with collar $5.28 To Order
Photo Part No Description Price (each) Stock
34526775864 Pulse generator, DSC rear $153.76 To Order
Photo Part No Description Price (each) Stock
7129905536 ISA screw $0.86 IN STOCK
Photo Part No Description Price (each) Stock
34526790833 Tubing support, left $22.35 To Order
34526790834 Tubing support, right $22.35 To Order
Photo Part No Description Price (each) Stock
34526783705 Tubing support $6.29 To Order
Photo Part No Description Price (each) Stock
34526783179 Pipe clip $1.32 To Order
View All

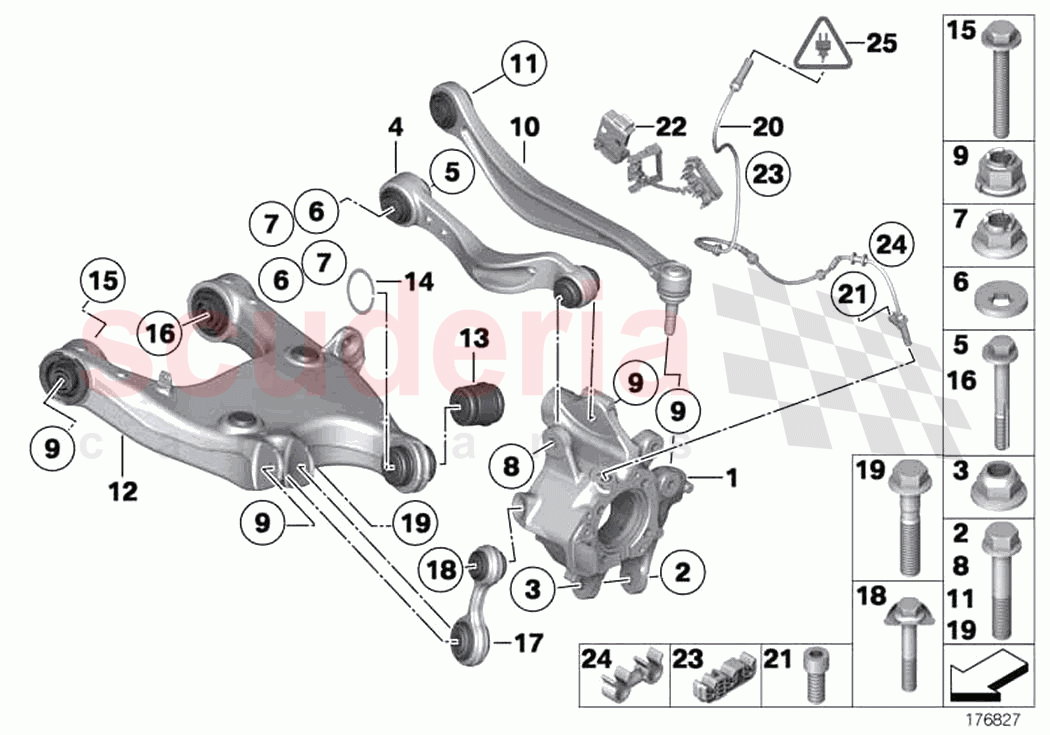

Rear axle support wheel suspension of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 31106768886
Hexagon nut with collar
M14X1,5-10 ZNS3 		- 1 Enquire
- 33326779785
Eccentric bolt
M14X105-10.9 		- 1 Enquire
- 33326783031
Hexagon collar screw
M14X120-10.9 		$5.87 1
- 33306786187
Eccentric flat washer 		$4.15 1
- 33306787062
Combination nut
M14X1,5-10ZNNIV
IN STOCK 		$4.32 1
1 33326863843
Wheel carrier, rear left 		$669.08 1
1 33326863844
Wheel carrier, rear right 		$669.08 1
2 33306786218
Hex Bolt with washer
M16X118-10.9 		$12.89 2
3 7119906287
Self-locking hex nut
M16X1,5-10 ZNS3
IN STOCK 		$2.81 2
4 33326782131
Wishbone, left 		$475.19 1
4 33326782132
Wishbone, right 		$475.19 1
5 7146888627
Eccentric bolt
M14X105-10.9 		$11.72 2
7 31106890194
Hexagon nut with collar
M14X1,5-10 ZNS3 		$5.10 4
10 33326775902
Track strut with rubber mount 		$190.08 2
11 7119906489
Hexagon screw with flange
M12X1,5X67-10.9 		$2.81 2
12 33326865897
Left swing part 		$937.94 1
12 33326865898
Right swing part 		$937.94 1
13 33326780438
Ball joint 		$106.38 2
14 33321091687
Snap ring 		$4.56 1
15 31106786144
Hexagon collar screw
M14X120-10.9-MK 		$11.72 2
17 33326775683
Integral link 		$118.80 2
18 33306793891
Securing bolt
M12X1,5X74-10.9 		$4.22 2
19 33326764927
Hex screw with collar
M14X1,5X74-10.9 		$5.28 2
20 34526775864
Pulse generator, DSC rear 		$153.76 2
21 7129905536
ISA screw
M6X16-8.8-ZNNIV
IN STOCK 		$0.86 2
22 34526790833
Tubing support, left 		$22.35 1
22 34526790834
Tubing support, right 		$22.35 1
23 34526783705
Tubing support 		$6.29 2
24 34526783179
Pipe clip 		$1.32 1
