Name: Charge air cooler
Rating: 5.0 (1 reviews)

View All

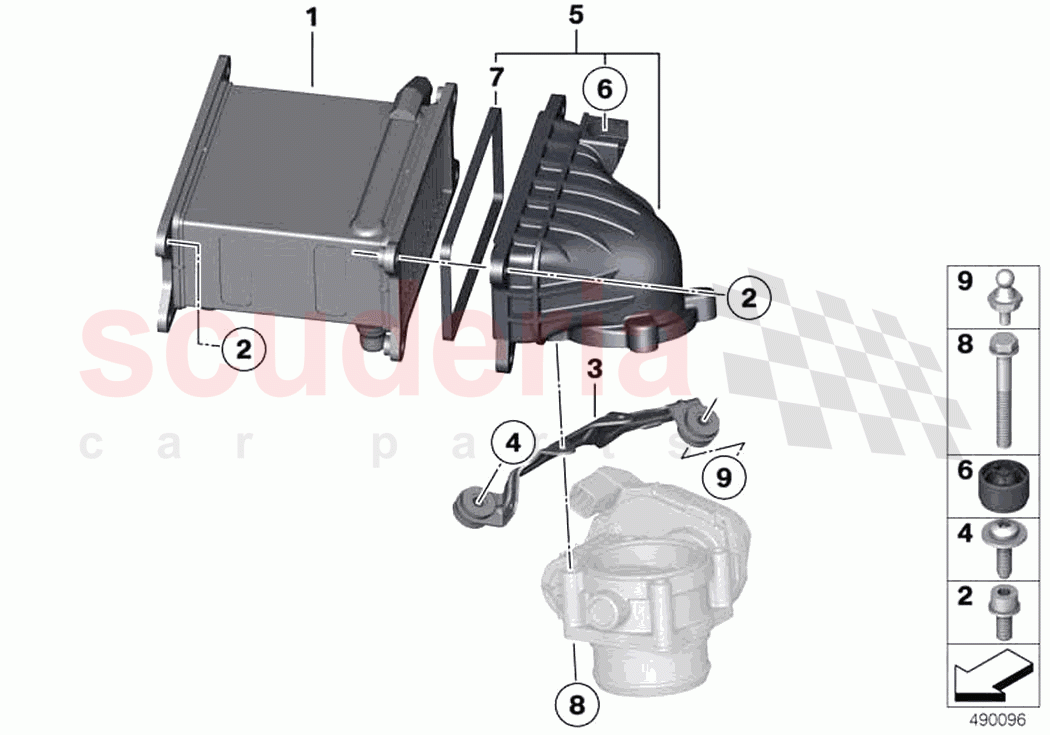

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7119905182	Fillister head screw	$4.20	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	17117594307	ISA screw	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13717588501	Rubber buffer	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11617561009	Profile-gasket	$11.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7119904526	Hex Bolt with washer	$1.16	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	7149362188	Ball pin	7149362188 Ball pin from 02.2018	$3.28	1
1	17517566391	Charge-air cooler	17517566391 Charge-air cooler 7-12; from 11.2018	$687.70	1
1	17517566392	Charge-air cooler	17517566392 Charge-air cooler 1-6; from 11.2018	$687.70	1
2	7119905182	Fillister head screw	7119905182 Fillister head screw M6X22; from 11.2018	$4.20	16
3	17517566396	Bracket, charge-air cooler	17517566396 Bracket, charge-air cooler 7-12; from 02.2018	$49.41	1
3	17518695450	Bracket, charge-air cooler	17518695450 Bracket, charge-air cooler CYL.7-12; from 02.2018	$50.20	1
3	17519796608	Bracket, charge-air cooler	17519796608 Bracket, charge-air cooler CYL.7-12; from 02.2018	$52.07	1
3	17517566397	Bracket, charge-air cooler	17517566397 Bracket, charge-air cooler 1-6; from 02.2018	$49.41	1
3	17518695449	Bracket, charge-air cooler	17518695449 Bracket, charge-air cooler CYL.1-6; from 02.2018	$66.27	1
4	17117594307	ISA screw	17117594307 ISA screw M6X27; from 02.2018	$1.65	4
5	17517578863	Air channel	17517578863 Air channel 7-12; from 11.2018	$102.76	1
5	17517578864	Air channel	17517578864 Air channel 1-6; from 11.2018	$89.88	1
6	13717588501	Rubber buffer	13717588501 Rubber buffer from 11.2018	$5.31	2
7	11617561009	Profile-gasket IN STOCK	11617561009 Profile-gasket from 11.2018 IN STOCK	$11.25	2
8	7119904526	Hex Bolt with washer	7119904526 Hex Bolt with washer M6X55-Z1; from 11.2018	$1.16	8

Charge Air Cooler

Rolls Royce Dawn RR6(2017-2023)
