Name: Rear door hinge door brake
Rating: 5.0 (1 reviews)

View All

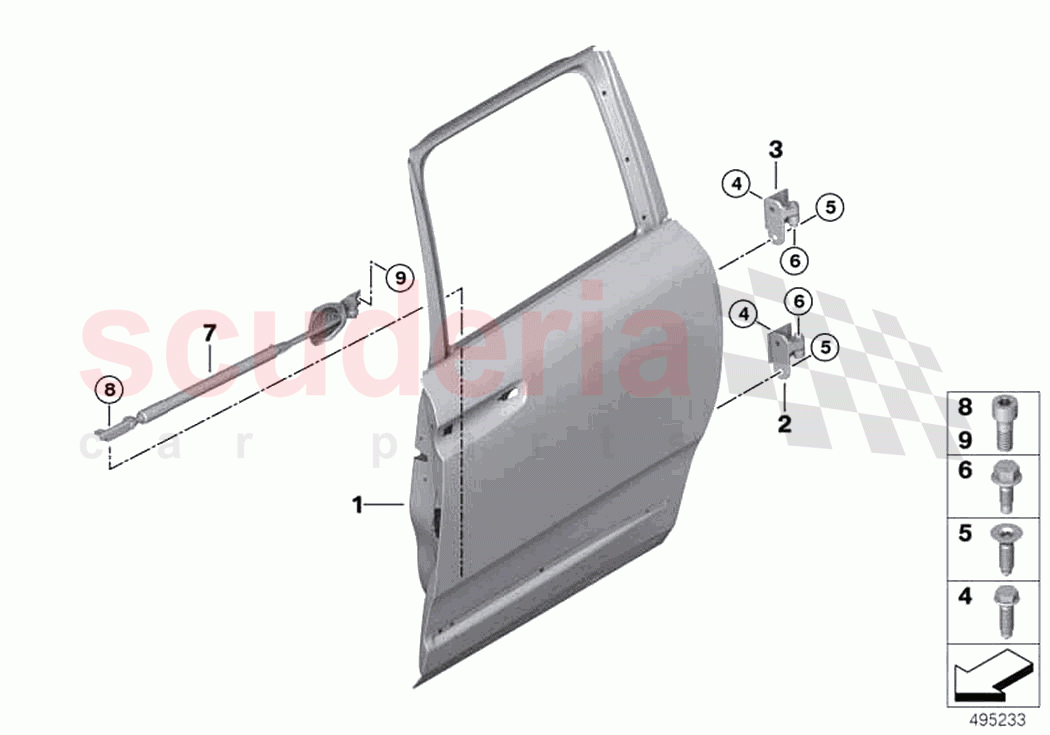

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7146979757	Hex Bolt	$21.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7147261771	Torx-countersunk screw	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	7147284478	Hexagon screw with flange	$1.75	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904065	ISA screw	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7129909447	ISA screw	$10.87	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	41008737111	Door, rear left	41008737111 Door, rear left	$13,229.45	1
01	41008737112	Door, rear right	41008737112 Door, rear right	$13,229.45	1
02	41007497519	Hinge, rear door, lower, left	41007497519 Hinge, rear door, lower, left	$508.60	1
02	41007497520	Hinge, rear door, lower, right	41007497520 Hinge, rear door, lower, right	$508.60	1
03	41007497517	Hinge, rear door, upper, left	41007497517 Hinge, rear door, upper, left	$508.60	1
03	41007497518	Hinge, rear door, upper, right	41007497518 Hinge, rear door, upper, right	$508.60	1
04	7146979757	Hex Bolt	7146979757 Hex Bolt M12X48	$21.54	2
05	7147261771	Torx-countersunk screw	7147261771 Torx-countersunk screw ISA M8X29.5	$1.66	4
06	7147284478	Hexagon screw with flange	7147284478 Hexagon screw with flange M8X24	$1.75	2
07	51227448771	Door brake, rear left	51227448771 Door brake, rear left	$896.09	1
07	51227448772	Door brake, rear right	51227448772 Door brake, rear right	$896.09	1
08	7129904065	ISA screw	7129904065 ISA screw M8X20-8.8-ZNS3	$2.81	4
09	7129909447	ISA screw	7129909447 ISA screw M12X20-10.9	$10.87	2

Rear Door Hinge Door Brake

Rolls Royce Cullinan RR31(2017-2023)
