Name: Actuator HSR mounting parts control unit
Rating: 5.0 (1 reviews)

View All

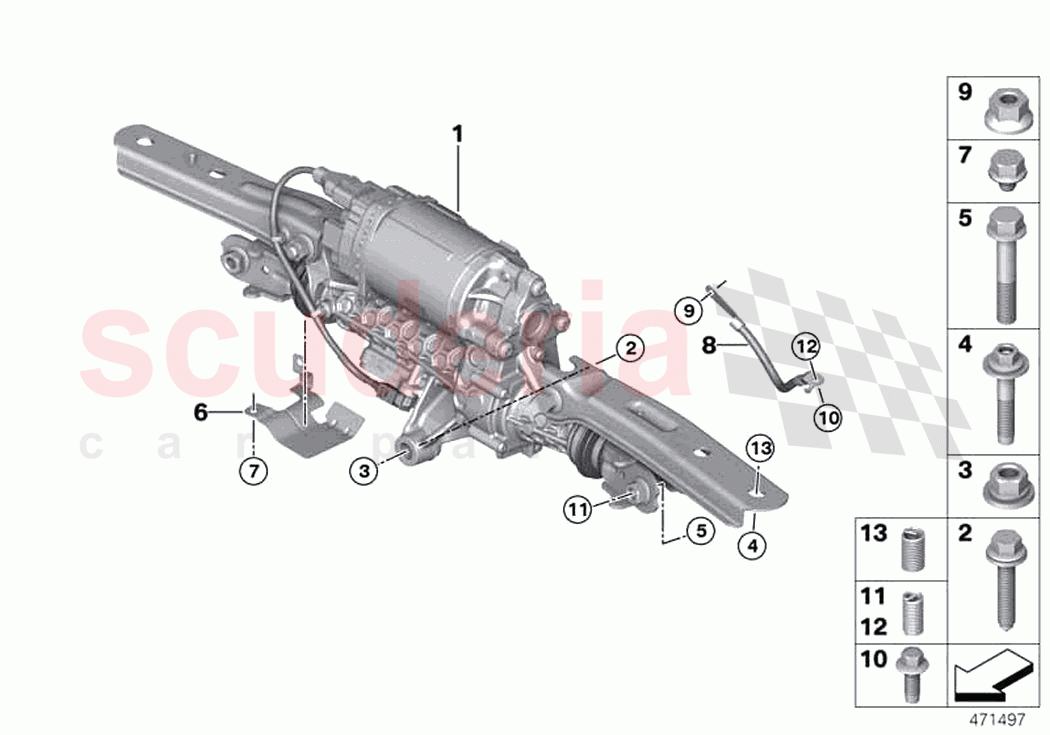

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33346895076	Actuator HSR	$2,093.71	To Order

Photo	Part No	Description	Price (each)	Stock
	33556790913	Hexagon nut with collar	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	33326760374	Self-locking collar nut	$5.09	To Order

Photo	Part No	Description	Price (each)	Stock
	31106850776	Screw, self tapping	$10.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906489	Hexagon screw with flange	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7147128161	Hexagon screw with flange	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	41248147832	Hex nut with flange	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	37146869771	Hexagon screw, self-tapping	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907889	Heli-Coil threaded insert	$18.44	To Order

Photo	Part No	Description	Price (each)	Stock
	33306780502	Threaded plug	$6.86	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	33346895076	Actuator HSR	33346895076 Actuator HSR	$2,093.71	1
02	33556790913	Hexagon nut with collar	33556790913 Hexagon nut with collar M10-10 ZNS3	$1.42	2
03	33326760374	Self-locking collar nut	33326760374 Self-locking collar nut M12X1,5-10 ZNS3	$5.09	1
04	31106850776	Screw, self tapping	31106850776 Screw, self tapping M14X1,5X75-10.9	$10.54	8
05	7119906489	Hexagon screw with flange	7119906489 Hexagon screw with flange M12X1,5X67-10.9	$2.81	1
06	7147128161	Hexagon screw with flange	7147128161 Hexagon screw with flange M6	$1.54	2
08	33346870078	Earth strap	33346870078 Earth strap PHEV; from 09.2021	$48.11	1
08	33348846960	Earth strap	33348846960 Earth strap	$42.77	1
09	41248147832	Hex nut with flange	41248147832 Hex nut with flange M6	$1.35	1
10	37146869771	Hexagon screw, self-tapping	37146869771 Hexagon screw, self-tapping M6X16	$1.54	1
11	7129907889	Heli-Coil threaded insert	7129907889 Heli-Coil threaded insert M12X1,5X12 - A2	$18.44	1
13	33306780502	Threaded plug	33306780502 Threaded plug M14X1,5X35	$6.86	1

Actuator Hsr Mounting Parts Control Unit

Rolls Royce Cullinan RR31(2017-2023)
