Seat Rear Seat Frame Basic Seat

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Seat rear seat frame basic seat

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
52207950597 Foam insert, rear left $259.80 To Order
Photo Part No Description Price (each) Stock
52207463584 Insert rear centre $440.56 To Order
Photo Part No Description Price (each) Stock
52207950598 Foam insert, rear right $259.80 To Order
Photo Part No Description Price (each) Stock
63129194594 Oval-head screw/washer assembly $1.66 To Order
Photo Part No Description Price (each) Stock
7119904209 Washer $2.17 To Order
Photo Part No Description Price (each) Stock
52207462193 Backrest frame support $4,514.98 To Order
Photo Part No Description Price (each) Stock
52207476239 Backrest frame, basic, left $7,853.36 To Order
Photo Part No Description Price (each) Stock
52207476240 Backrest frame, basic, right $7,853.36 To Order
Photo Part No Description Price (each) Stock
52207495875 Centre backrest bearing bracket $87.94 To Order
Photo Part No Description Price (each) Stock
52207478860 Bearing sleeve $30.53 To Order
Photo Part No Description Price (each) Stock
7147301867 Torx-bolt with washer $1.75 To Order
Photo Part No Description Price (each) Stock
7129908679 Torx screw $3.75 To Order
Photo Part No Description Price (each) Stock
52207478863 Catch bracket left $85.29 To Order
52207478864 Catch bracket right $85.29 To Order
Photo Part No Description Price (each) Stock
7149148299 Fillister head screw $5.01 To Order
Photo Part No Description Price (each) Stock
7146976577 Fillister head screw with collar $1.66 To Order
Photo Part No Description Price (each) Stock
52209890529 Lock, middle $63.85 To Order
Photo Part No Description Price (each) Stock
52209461439 Lock left $528.53 To Order
52209461440 Lock right $528.53 To Order
Photo Part No Description Price (each) Stock
7119904955 Fillister head screw $1.31 To Order
View All

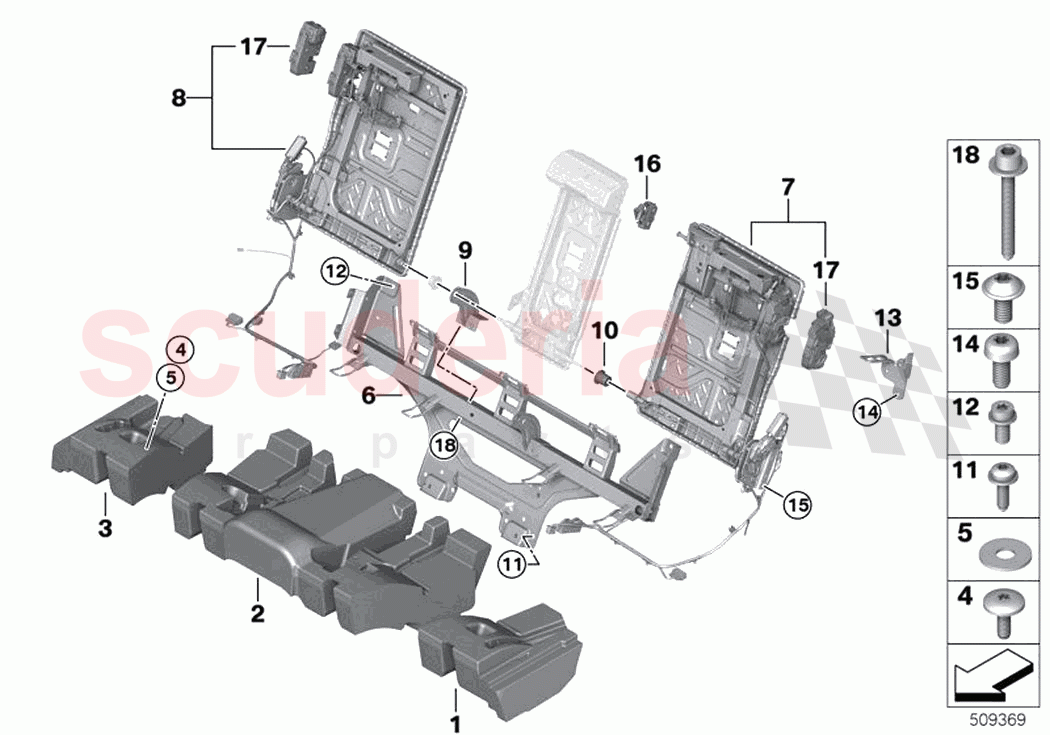

Seat rear seat frame basic seat of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 52207950597
Foam insert, rear left 		$259.80 1
02 52207463584
Insert rear centre 		$440.56 1
03 52207950598
Foam insert, rear right 		$259.80 1
04 63129194594
Oval-head screw/washer assembly 		$1.66 4
05 7119904209
Washer
10-200 ZNS3 		$2.17 4
06 52207462193
Backrest frame support 		$4,514.98 1
07 52207476239
Backrest frame, basic, left 		$7,853.36 1
08 52207476240
Backrest frame, basic, right 		$7,853.36 1
09 52207495875
Centre backrest bearing bracket 		$87.94 1
10 52207478860
Bearing sleeve 		$30.53 2
11 7147301867
Torx-bolt with washer
ISA M8X25 		$1.75 6
12 7129908679
Torx screw
M10X22-10.9 		$3.75 4
13 52207478863
Catch bracket left 		$85.29 1
13 52207478864
Catch bracket right 		$85.29 1
14 7149148299
Fillister head screw
M10X22 		$5.01 6
15 7146976577
Fillister head screw with collar
M8X16 		$1.66 8
16 52209890529
Lock, middle 		$63.85 1
17 52209461439
Lock left 		$528.53 1
17 52209461440
Lock right 		$528.53 1
18 7119904955
Fillister head screw
M8X60-ZNS3 		$1.31 2
