McLaren Senna GTR - 28 - AIR INDUCTION SYSTEMS - AIS - 28.1 - AIS - LOW PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0362CP SENSOR - MASS AIR FLOW $285.92 To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
26FA246SP AIR FILTER $192.94 IN STOCK
Photo Part No Description Price (each) Stock
15FA346CP AIR FILTER HOUSING $424.48 To Order
Photo Part No Description Price (each) Stock
15FA247CP BRACKET - AIRBOX TO BULKHEAD - INBOARD LH $53.60 To Order
Photo Part No Description Price (each) Stock
15FA257CP BRACKET - AIRBOX TO BULKHEAD - OUTBOARD LH $53.04 To Order
Photo Part No Description Price (each) Stock
15FA248CP BRACKET - AIRBOX TO BULKHEAD - INBOARD RH $53.60 To Order
Photo Part No Description Price (each) Stock
15FA259CP BRACKET - AIRBOX TO BULKHEAD - OUTBOARD RH $49.01 To Order
Photo Part No Description Price (each) Stock
15FA276CP BRACKET - AIRBOX TO REAR FRAME - LH $81.98 To Order
Photo Part No Description Price (each) Stock
15FA345CP BRACKET - AIRBOX TO REAR FRAME - RH $81.98 To Order
Photo Part No Description Price (each) Stock
00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
15FA040CP RETAINER - AIRFILTER $168.36 To Order
Photo Part No Description Price (each) Stock
00RB031 CLAMP - HOSE - 90-110 Enquire To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
15FA028CP TUBE - CLEAR AIR DUCT $65.22 To Order
Photo Part No Description Price (each) Stock
15FA188CP COUPLING SLEEVE - CLEAN AIR DUCT $65.22 To Order
Photo Part No Description Price (each) Stock
15FA192CP RESONATOR - CLEAN AIR DUCT - LH $563.12 To Order
Photo Part No Description Price (each) Stock
15FA193CP RESONATOR - CLEAN AIR DUCT - RH $563.12 To Order
Photo Part No Description Price (each) Stock
00RA542 CLIP - SNAPLOC - 16X8 Enquire To Order
Photo Part No Description Price (each) Stock
15FA401CP ASSY-DIRTY AIR DUCT-LH Enquire To Order
15FA151CP NVH - DIRTY AIR DUCT ASSY - LH Enquire To Order
15FA151CP NVH - DIRTY AIR DUCT ASSY - LH Enquire To Order
Photo Part No Description Price (each) Stock
15FA402CP ASSY-DIRTY AIR DUCT-RH Enquire To Order
15FA152CP NVH - DIRTY AIR DUCT ASSY - RH Enquire To Order
15FA152CP NVH - DIRTY AIR DUCT ASSY - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15FA310CP BOLLHOFF SNAPLOC BALL STUD 403 $6.58 To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
12F0954RP BLANKING CAP - 9.5MM $48.78 To Order
View All

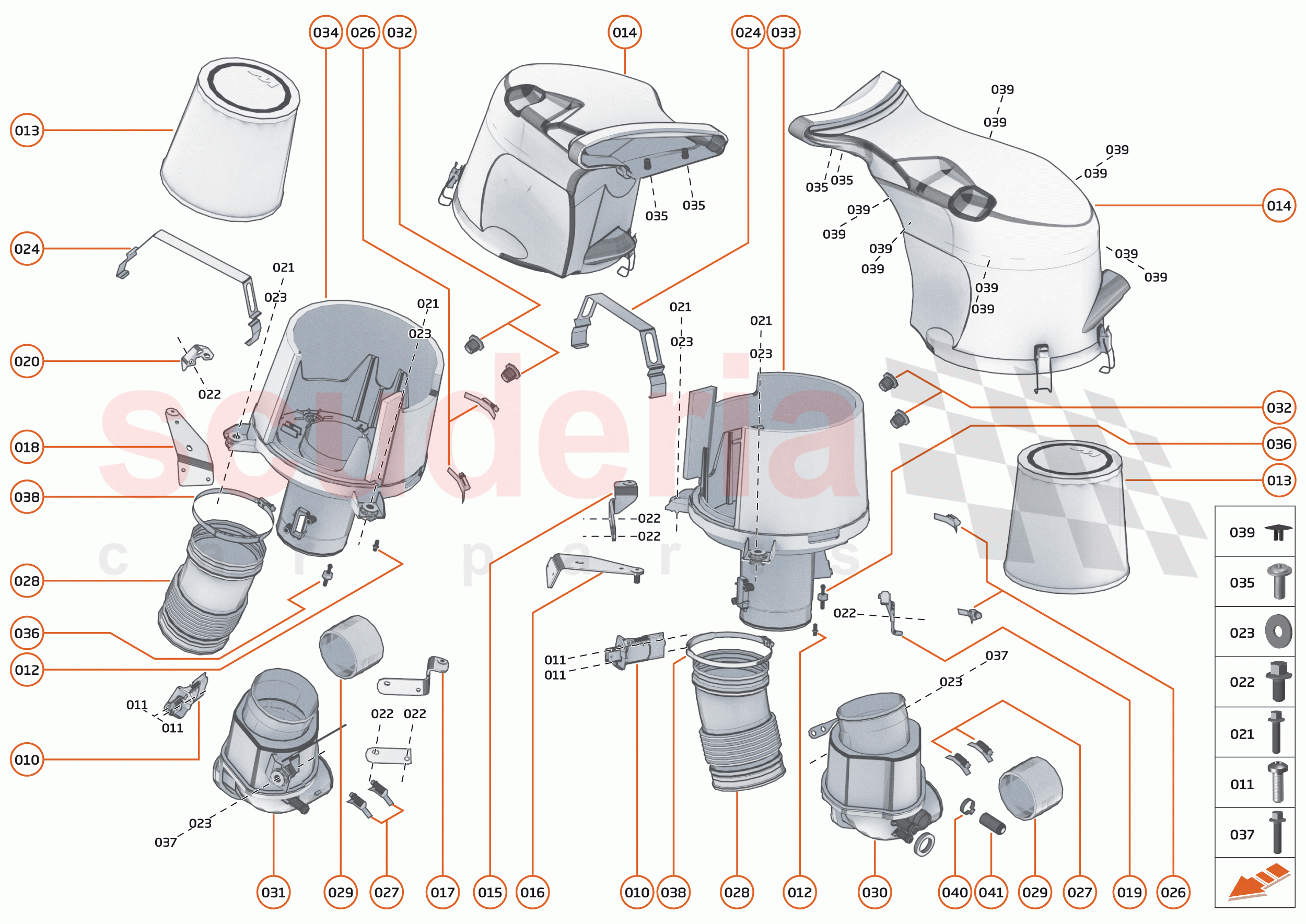

28 - AIR INDUCTION SYSTEMS - AIS - 28.1 - AIS - LOW PRESSURE SYSTEM of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0362CP
SENSOR - MASS AIR FLOW 		$285.92 2
011 00RA363
SCREW - TORX - 4X12 		- 4 Enquire
012 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 2 Enquire
013 26FA246SP
AIR FILTER
IN STOCK 		$192.94 2
014 15FA346CP
AIR FILTER HOUSING 		$424.48 2
015 15FA247CP
BRACKET - AIRBOX TO BULKHEAD - INBOARD LH 		$53.60 1
016 15FA257CP
BRACKET - AIRBOX TO BULKHEAD - OUTBOARD LH 		$53.04 1
017 15FA248CP
BRACKET - AIRBOX TO BULKHEAD - INBOARD RH 		$53.60 1
018 15FA259CP
BRACKET - AIRBOX TO BULKHEAD - OUTBOARD RH 		$49.01 1
019 15FA276CP
BRACKET - AIRBOX TO REAR FRAME - LH 		$81.98 1
020 15FA345CP
BRACKET - AIRBOX TO REAR FRAME - RH 		$81.98 1
021 00RA581
BOLT - HEX HEAD - FLANGE - M6X30 		- 4 Enquire
022 00RA313
SCREW - M6X16 - HEX - SILVER 		- 6 Enquire
023 00RC043
WASHER - M6XOD25 		- 4 Enquire
024 15FA040CP
RETAINER - AIRFILTER 		$168.36 1
025 00RX001
BOLT - M5X16 - HEX 		- 4 Enquire
026 00RB031
CLAMP - HOSE - 90-110 		- 4 Enquire
027 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 4 Enquire
028 15FA028CP
TUBE - CLEAR AIR DUCT 		$65.22 2
029 15FA188CP
COUPLING SLEEVE - CLEAN AIR DUCT 		$65.22 2
030 15FA192CP
RESONATOR - CLEAN AIR DUCT - LH 		$563.12 1
031 15FA193CP
RESONATOR - CLEAN AIR DUCT - RH 		$563.12 1
032 00RA542
CLIP - SNAPLOC - 16X8 		- 4 Enquire
033 15FA401CP
ASSY-DIRTY AIR DUCT-LH 		- 1 Enquire
033 15FA151CP
NVH - DIRTY AIR DUCT ASSY - LH 		- 1 Enquire
033 15FA151CP
NVH - DIRTY AIR DUCT ASSY - LH 		- 1 Enquire
034 15FA402CP
ASSY-DIRTY AIR DUCT-RH 		- 1 Enquire
034 15FA152CP
NVH - DIRTY AIR DUCT ASSY - RH 		- 1 Enquire
034 15FA152CP
NVH - DIRTY AIR DUCT ASSY - RH 		- 1 Enquire
035 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4 Enquire
036 15FA310CP
BOLLHOFF SNAPLOC BALL STUD 403 		$6.58 2
037 00RA235
BOLT - M5X35 - FLANGED - 8.8 		- 2 Enquire
038 00RB228
CLMP-HOSE-WORM DR CT-110X9-SS- 		- 2 Enquire
039 00RM005
ANIXTER RIVET - BLACK 		- 24 Enquire
040 00RB094
OETIKER CLIP - 21.0 		- 1 Enquire
041 12F0954RP
BLANKING CAP - 9.5MM 		$48.78 -
