McLaren Senna GTR - 23 - ENGINE - 23.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $91.18 To Order
Photo Part No Description Price (each) Stock
28FA063CP WATER PUMP $1,631.79 To Order
Photo Part No Description Price (each) Stock
11F0686CP ENGINE WATER PUMP GASKET $33.81 IN STOCK
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.43 IN STOCK
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $19.30 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.61 To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $125.57 To Order
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $124.77 To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $12.53 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $251.18 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.50 To Order
Photo Part No Description Price (each) Stock
15FA067CP TOP HOSE - ENGINE RADIATOR - LH $318.24 To Order
Photo Part No Description Price (each) Stock
15FA068CP TOP HOSE - ENGINE RADIATOR - RH $299.66 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $13.99 To Order
Photo Part No Description Price (each) Stock
15FA158CP HEATER FEED PIPE - ENGINE $297.83 To Order
Photo Part No Description Price (each) Stock
15FA070CP ASSY - HOSE - COOLANT DEGAS - ENGINE $164.21 To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $7.91 To Order
Photo Part No Description Price (each) Stock
15FA075CP ASSY - HOSE - COOLANT DEGAS - VEHICLE $67.61 To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
14F0638CP HOSE - DEGAS Enquire To Order
Photo Part No Description Price (each) Stock
14F0371CP CLAMP OETIKER 00076445 16 - 19.2MM $9.06 To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $106.26 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $43.45 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $9.66 To Order
Photo Part No Description Price (each) Stock
14F0562CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RB141 SWIVEL CLIP - FEMALE CSC9 Enquire To Order
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
14F0561CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH Enquire To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $24.14 To Order
Photo Part No Description Price (each) Stock
15FA161CP PIPE - WATER RETURN - LH - 01948991-3 $374.15 To Order
Photo Part No Description Price (each) Stock
11F1674CP T PIECE - DEGAS $16.41 To Order
Photo Part No Description Price (each) Stock
13F0831CP ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH Enquire To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH $53.11 To Order
Photo Part No Description Price (each) Stock
11F1955CP SEAL - O-RING - 23.2 $5.40 To Order
Photo Part No Description Price (each) Stock
15FA271CP CLAMP - 50MM DIA Enquire To Order
Photo Part No Description Price (each) Stock
15FA274CP SEAL - O-RING 39.7X3.53 $5.16 To Order
Photo Part No Description Price (each) Stock
11F2412CP P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE Enquire To Order
View All

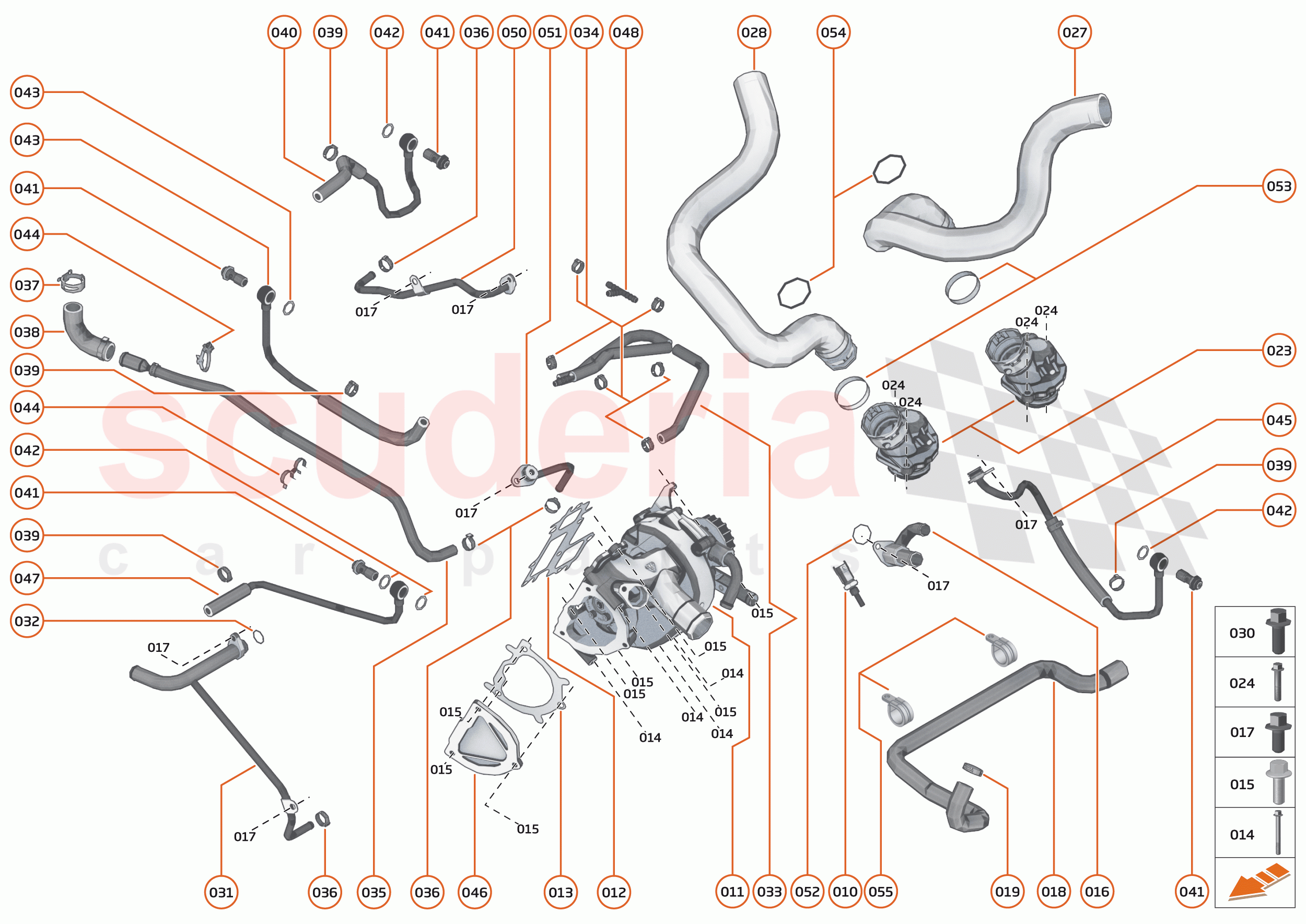

23 - ENGINE - 23.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2418CP
SENSOR - HEAD TEMPERATURE 		$91.18 1
011 28FA063CP
WATER PUMP 		$1,631.79 1
012 11F0686CP
ENGINE WATER PUMP GASKET
IN STOCK 		$33.81 1
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$15.43 1
014 11F1784CP
BOLT - M6X80 - HEX 		$19.30 4
015 11F1793CP
BOLT - M6X20 - HEX 		$10.61 16
016 11F0802CP
Heater Return Stub - Engine - Water Pump 		$125.57 1
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$124.77 1
019 11F1859CP
OETIKER CLAMP - 24.1MM 		$12.53 1
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10 		$8.28 2
023 13FA050CP
THERMOSTAT AND HOUSING-ENGINE 		$251.18 2
024 11F1783CP
BOLT - M8X30 - HEX 		$13.50 4
027 15FA067CP
TOP HOSE - ENGINE RADIATOR - LH 		$318.24 1
028 15FA068CP
TOP HOSE - ENGINE RADIATOR - RH 		$299.66 1
030 11F1782CP
BOLT - M6X10 - HEX 		$13.99 2
031 15FA158CP
HEATER FEED PIPE - ENGINE 		$297.83 1
032 11F1954CP
O-RING - 16-0X2-0 		$5.40 1
033 15FA070CP
ASSY - HOSE - COOLANT DEGAS - ENGINE 		$164.21 1
034 11F1863CP
OETIKER CLIP - 14.1-16.6 		$7.91 6
035 15FA075CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE 		$67.61 1
036 00RB093
OETIKER CLIP - 16.6 		- 1 Enquire
037 00RB204
CLAMP - SPRING BAND - 27X12 		- 1 Enquire
038 14F0638CP
HOSE - DEGAS 		- 1 Enquire
039 14F0371CP
CLAMP OETIKER 00076445 16 - 19.2MM 		$9.06 1
040 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$106.26 1
041 12F0684CP
Banjo Bolt - M14x1.5 		$43.45 1
042 12F0685CP
Washer - Sealing - M14 		$9.66 1
043 14F0562CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - RH 		- 1 Enquire
044 00RB141
SWIVEL CLIP - FEMALE CSC9 		- 1 Enquire
044 00RB044
SWIVEL PIPE CLIP - 16MM 		- 1 Enquire
045 14F0561CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH 		- 1 Enquire
046 11F2433CP
COVER - WATER PUMP - ENGINE 		$24.14 1
047 15FA161CP
PIPE - WATER RETURN - LH - 01948991-3 		$374.15 1
048 11F1674CP
T PIECE - DEGAS 		$16.41 1
049 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
050 13F0831CP
ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH 		- 1 Enquire
051 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH 		$53.11 1
052 11F1955CP
SEAL - O-RING - 23.2 		$5.40 1
053 15FA271CP
CLAMP - 50MM DIA 		- - Enquire
054 15FA274CP
SEAL - O-RING 39.7X3.53 		$5.16 1
055 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE 		- 2 Enquire
