42 - Interior Systems - 42.1 - Facia - Components & Hardware

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 42 - INTERIOR SYSTEMS - 42.1 - FACIA - COMPONENTS & HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13MA049CP MOUNTING - BODY CONTROL UNIT - FACIA $35.66 To Order
Photo Part No Description Price (each) Stock
15NA085RP ASSY PAB COVER FACIA LHD $7,106.92 To Order
15NA071CP ASSY PAB COVER FACIA LHD Enquire To Order
Photo Part No Description Price (each) Stock
14MA366CP DISPLAY - TELL-TALE - LH $210.83 To Order
15NA090RP COVER-TELL TALE MODULE LH Enquire To Order
Photo Part No Description Price (each) Stock
14MA368CP LED TELL-TALE MODULE RH $210.83 To Order
15NA091RP COVER-TELL TALE MODULE RH Enquire To Order
Photo Part No Description Price (each) Stock
15NA112CP BEZEL - FACIA VENT Enquire To Order
Photo Part No Description Price (each) Stock
13A2619CP SENSOR - CABIN TEMPERATURE $125.37 To Order
Photo Part No Description Price (each) Stock
14N1784CP VENT - WINDSCREEN DEMIST $187.56 To Order
Photo Part No Description Price (each) Stock
14MA394CP DRIV DISPLAY DEPLOYMENT SWITCH $190.20 To Order
Photo Part No Description Price (each) Stock
15NA694CP BADGE - INTERIOR - SENNA $1,437.57 To Order
Photo Part No Description Price (each) Stock
14MA286CP SWITCH - MASTER LIGHTING Enquire To Order
Photo Part No Description Price (each) Stock
14MA397CP SWITCH - MIRROR CONTROL - PDC $482.29 To Order
14MA396CP SWITCH - MIRROR CONTROL $498.35 To Order
Photo Part No Description Price (each) Stock
15NA688CP SWITCH - SPACER $51.93 To Order
Photo Part No Description Price (each) Stock
15NA236CP GAITER - STEERING COLUMN $346.26 To Order
Photo Part No Description Price (each) Stock
11M2477CP BRACKET - OBD SOCKET MOUNTING $105.40 To Order
Photo Part No Description Price (each) Stock
11N1083CP BRACKET - KNEEBOLSTER - REST OF WORLD $62.68 To Order
Photo Part No Description Price (each) Stock
13NA253CP AIRBAG - PASSENGER - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
00RA614 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11N1873SP FIR TREE - TRIM $2.87 To Order
Photo Part No Description Price (each) Stock
14N1539CP CLOSURE PANEL - FACIA - LH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
14N1560CP LAMP - FOOTWELL - LH $52.70 To Order
Photo Part No Description Price (each) Stock
14N1561CP LAMP - FOOTWELL - RH $52.70 To Order
Photo Part No Description Price (each) Stock
14N1540CP CLOSURE PANEL - FACIA - RH - LHD Enquire To Order
14N1544CP CLOSURE PANEL - FACIA - RH - LHD - FEDERAL Enquire To Order
Photo Part No Description Price (each) Stock
11N0999CP KNEEBAG - US Enquire To Order
Photo Part No Description Price (each) Stock
15NA301CP FACIA - END CAP - LH Enquire To Order
Photo Part No Description Price (each) Stock
15NA302CP FACIA - END CAP - RH Enquire To Order
Photo Part No Description Price (each) Stock
15NA086CP MOULDING FACE VENT - MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
15MA026RP HARNESS FACIA LHD $12,853.67 To Order
Photo Part No Description Price (each) Stock
00RB229 CLIP-PNL-8X0.8-1.6X18-NYL-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RC103 WASHER - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
View All

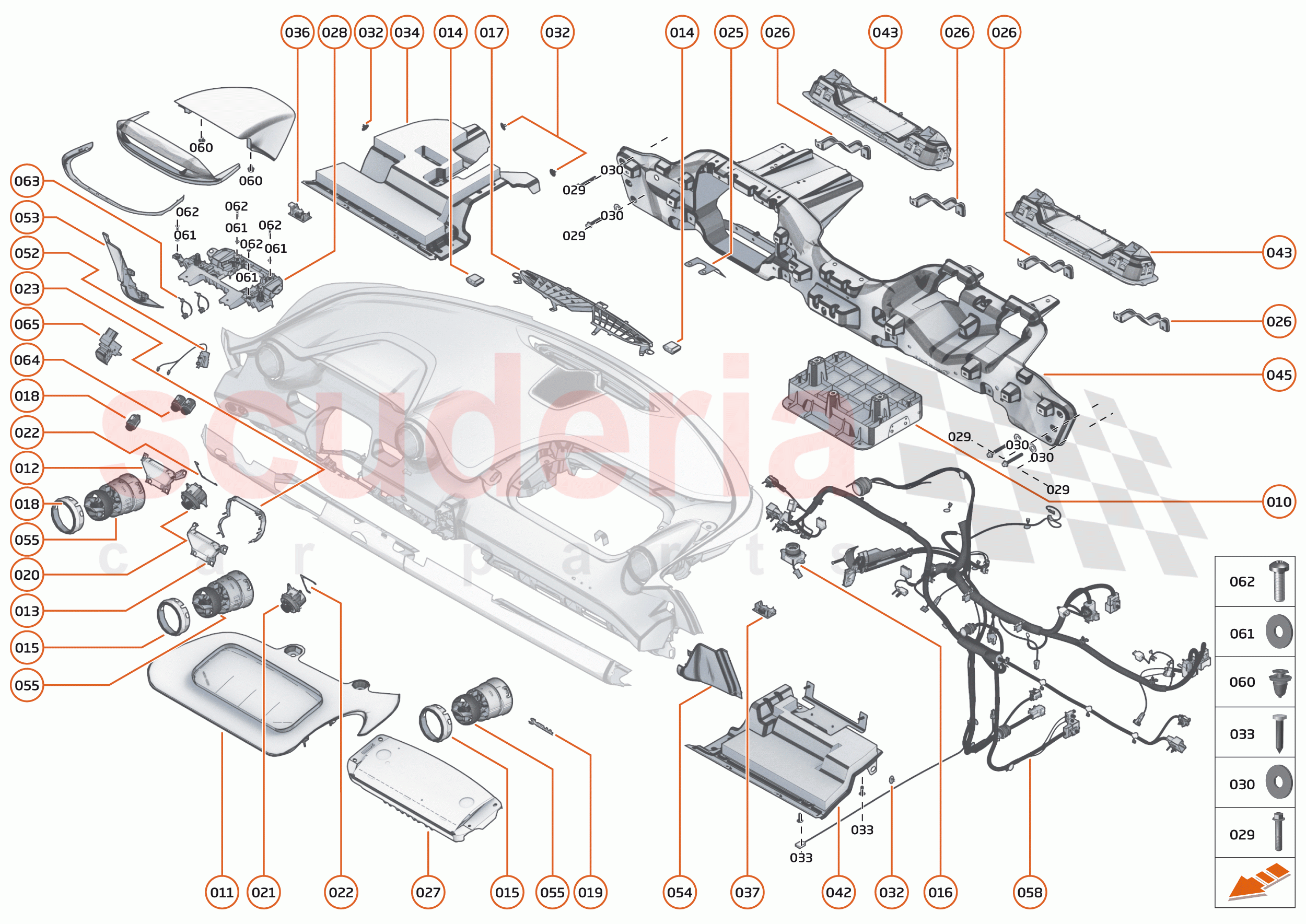

42 - INTERIOR SYSTEMS - 42.1 - FACIA - COMPONENTS & HARDWARE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13MA049CP
MOUNTING - BODY CONTROL UNIT - FACIA 		$35.66 1
011 15NA085RP
ASSY PAB COVER FACIA LHD 		$7,106.92 1
011 15NA071CP
ASSY PAB COVER FACIA LHD 		- 1 Enquire
012 14MA366CP
DISPLAY - TELL-TALE - LH 		$210.83 1
012 15NA090RP
COVER-TELL TALE MODULE LH 		- 1 Enquire
013 14MA368CP
LED TELL-TALE MODULE RH 		$210.83 -
013 15NA091RP
COVER-TELL TALE MODULE RH 		- 1 Enquire
015 15NA112CP
BEZEL - FACIA VENT 		- 3 Enquire
016 13A2619CP
SENSOR - CABIN TEMPERATURE 		$125.37 1
017 14N1784CP
VENT - WINDSCREEN DEMIST 		$187.56 1
018 14MA394CP
DRIV DISPLAY DEPLOYMENT SWITCH 		$190.20 -
019 15NA694CP
BADGE - INTERIOR - SENNA 		$1,437.57 1
020 14MA286CP
SWITCH - MASTER LIGHTING 		- 1 Enquire
021 14MA397CP
SWITCH - MIRROR CONTROL - PDC 		$482.29 -
021 14MA396CP
SWITCH - MIRROR CONTROL 		$498.35 1
022 15NA688CP
SWITCH - SPACER 		$51.93 2
023 15NA236CP
GAITER - STEERING COLUMN 		$346.26 1
025 11M2477CP
BRACKET - OBD SOCKET MOUNTING 		$105.40 1
026 11N1083CP
BRACKET - KNEEBOLSTER - REST OF WORLD 		$62.68 4
027 13NA253CP
AIRBAG - PASSENGER - LHD 		- - Enquire
028 15NA095RP
ASSY MTG BRKT-DRIVER DISPLAY L 		$5,193.92 1
028 14N1254CP
BRACKET - TFT 		$1,004.44 1
029 00RA064
BOLT - M5X12 - HEX 		- 4 Enquire
029 00RA614
BOLT - M8X1.25 - HEX 		- 4 Enquire
030 00RC017
WASHER - M5X15X1.2 		- 4 Enquire
030 00RC015
WASHER - M8X24X2 		- 4 Enquire
031 00RA112
TORX SCREW-WASHER 4.2X16 		- 2 Enquire
032 00RM005
ANIXTER RIVET - BLACK 		- 1 Enquire
033 11N1873SP
FIR TREE - TRIM 		$2.87 2
034 14N1539CP
CLOSURE PANEL - FACIA - LH - LHD 		- 1 Enquire
036 14N1560CP
LAMP - FOOTWELL - LH 		$52.70 1
037 14N1561CP
LAMP - FOOTWELL - RH 		$52.70 1
042 14N1540CP
CLOSURE PANEL - FACIA - RH - LHD 		- 1 Enquire
042 14N1544CP
CLOSURE PANEL - FACIA - RH - LHD - FEDERAL 		- 1 Enquire
043 11N0999CP
KNEEBAG - US 		- 2 Enquire
045 15NA201CP
CROSS CAR BEAM - FACIA - LHD 		- 1 Enquire
047 15NA870CP
INFILL PANEL - LH 		- 1 Enquire
048 15NA871CP
ASSY INFILL PANEL RH 		- 1 Enquire
053 15NA301CP
FACIA - END CAP - LH 		- 1 Enquire
054 15NA302CP
FACIA - END CAP - RH 		- 1 Enquire
055 15NA086CP
MOULDING FACE VENT - MECHANISM 		- 3 Enquire
056 14N0812CP
BEZEL - FRONT CLUSTER 		- 1 Enquire
057 15NA587CP
BEZEL - CLUSTER - RACE 		- 1 Enquire
058 15MA026RP
HARNESS FACIA LHD 		$12,853.67 1
059 15NA097RP
COVER UPR-DRIVER DISPLAY LHD 		- 1 Enquire
060 00RB229
CLIP-PNL-8X0.8-1.6X18-NYL-BLK 		- 2 Enquire
061 00RC103
WASHER - M5X10 		- 4 Enquire
062 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- 4 Enquire
063 00RL001
CABLE TIE - FIRTREE BASE 		- 2 Enquire
064 16MA406CP
BLANK LINEAR 		- 2 Enquire
065 14MA398CP
SWITCH - EPB
EPB SWITCH; 		$91.62 -
