17 - Suspension - 17.3 - Transverse Links Front

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
A1BA081QP WISHBONE FRONT UPPER $1,140.73 To Order
Photo Part No Description Price (each) Stock
ZZVA006QP WHW 137 SPIROLOX $4.02 To Order
Photo Part No Description Price (each) Stock
A1BA083QP TOP HAT FTWB INBOARD $43.35 To Order
Photo Part No Description Price (each) Stock
ZZVA007QP SPIROLOX WHM 100 $5.36 To Order
Photo Part No Description Price (each) Stock
ZZWA054QP NMB ABYTE10 SPH BRG $433.69 To Order
Photo Part No Description Price (each) Stock
ZZWA030QP NMB ABWTE8 SPH BRG $364.90 To Order
Photo Part No Description Price (each) Stock
15BA162RP SHIM FTWB 0.5MM M10 $224.87 To Order
A1BA111QP SHIM FTWB 4.0MM M10 $116.21 To Order
A1BA107QP SHIM FTWB 2.0MM M10 $116.21 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
A1BA115QP BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK $18.23 To Order
Photo Part No Description Price (each) Stock
ZZUA018QP M10X1.5 6PT KNUT $8.44 To Order
Photo Part No Description Price (each) Stock
15BA110RP CLEVIS FR UPR WISHBONE $2,450.21 To Order
Photo Part No Description Price (each) Stock
ZZVA003QP M10 WASHER $0.94 To Order
Photo Part No Description Price (each) Stock
15BA166RP SPACER FTWB 10MM $277.88 To Order
Photo Part No Description Price (each) Stock
A1BA089QP WISHBONE FRONT LOWER LH $4,850.85 To Order
Photo Part No Description Price (each) Stock
A1BA683QP TOP HAT - FLWB OUTER BALLJOINT $43.35 To Order
Photo Part No Description Price (each) Stock
A1BA093QP TOPHAT FLWB INBOARD $43.35 To Order
Photo Part No Description Price (each) Stock
ZZWA033QP NMB ABWTE12 SPH BRG $537.75 To Order
Photo Part No Description Price (each) Stock
A1BA117QP BOLT-SUSPENSION CLEVIS - M10X66 50MM SHANK $34.73 To Order
Photo Part No Description Price (each) Stock
15BA108RP CLEVIS FR LWR WISHBONE FW $2,912.66 To Order
Photo Part No Description Price (each) Stock
15BA109RP CLEVIS FR LWR WISHBONE RW $3,112.22 To Order
Photo Part No Description Price (each) Stock
A1BA090QP WISHBONE FRONT LOWER RH $4,850.85 To Order
View All

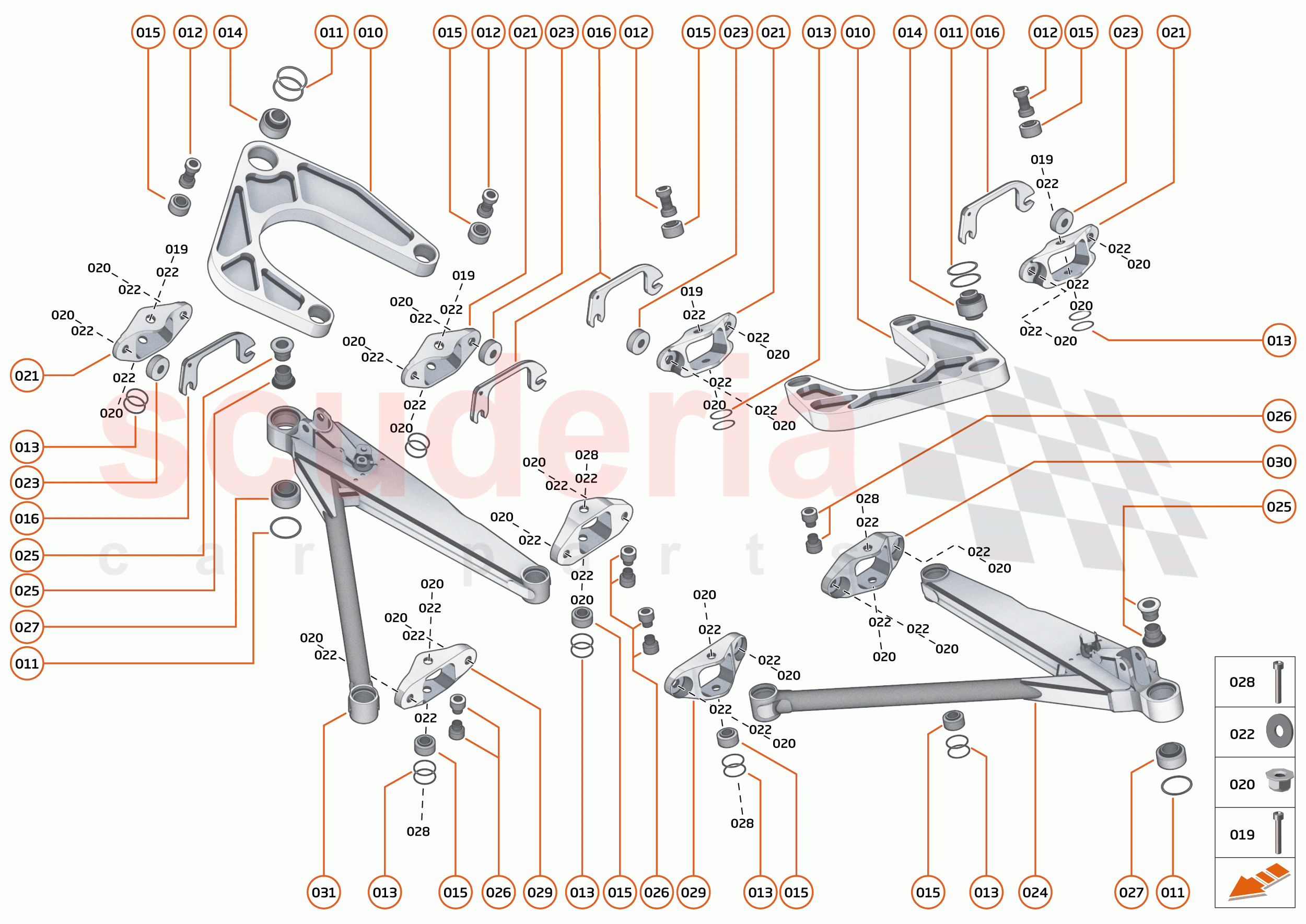

17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 A1BA081QP
WISHBONE FRONT UPPER 		$1,140.73 1
011 ZZVA006QP
WHW 137 SPIROLOX 		$4.02 -
012 A1BA083QP
TOP HAT FTWB INBOARD 		$43.35 4
013 ZZVA007QP
SPIROLOX WHM 100 		$5.36 -
014 ZZWA054QP
NMB ABYTE10 SPH BRG 		$433.69 -
015 ZZWA030QP
NMB ABWTE8 SPH BRG 		$364.90 -
016 15BA162RP
SHIM FTWB 0.5MM M10 		$224.87 -
016 A1BA111QP
SHIM FTWB 4.0MM M10 		$116.21 -
016 A1BA107QP
SHIM FTWB 2.0MM M10 		$116.21 -
016 A1BA103QP
SHIM FTWB 1.0MM M10 		$116.21 4
019 A1BA115QP
BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK 		$18.23 -
020 ZZUA018QP
M10X1.5 6PT KNUT 		$8.44 -
021 15BA110RP
CLEVIS FR UPR WISHBONE 		$2,450.21 -
022 ZZVA003QP
M10 WASHER
M10 WASHER; 		$0.94 -
023 15BA166RP
SPACER FTWB 10MM 		$277.88 -
024 A1BA089QP
WISHBONE FRONT LOWER LH 		$4,850.85 1
025 A1BA683QP
TOP HAT - FLWB OUTER BALLJOINT 		$43.35 -
026 A1BA093QP
TOPHAT FLWB INBOARD 		$43.35 -
027 ZZWA033QP
NMB ABWTE12 SPH BRG 		$537.75 -
028 A1BA117QP
BOLT-SUSPENSION CLEVIS - M10X66 50MM SHANK 		$34.73 -
029 15BA108RP
CLEVIS FR LWR WISHBONE FW 		$2,912.66 -
030 15BA109RP
CLEVIS FR LWR WISHBONE RW 		$3,112.22 -
031 A1BA090QP
WISHBONE FRONT LOWER RH 		$4,850.85 1
