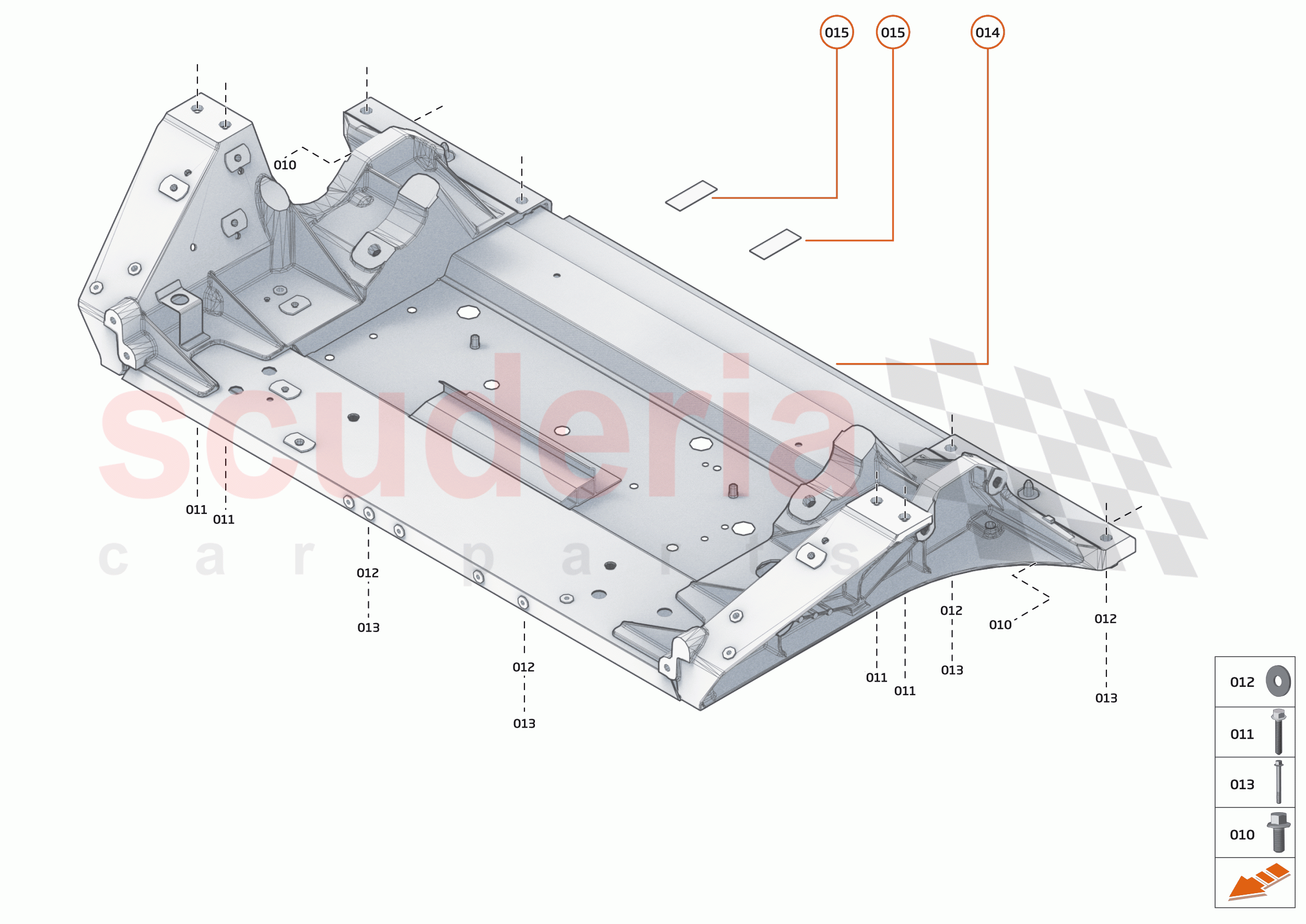

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9786CP	BOLT - M10X85 - HEX	$4.41	To Order

Photo	Part No	Description	Price (each)	Stock
	15AB709CP	SUBFRAME - FRONT	$5,616.01	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL004	FELT TAPE	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX	-	2	Enquire
011	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9	-	4	Enquire
012	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0	-	4	Enquire
013	11A9786CP	BOLT - M10X85 - HEX	11A9786CP BOLT - M10X85 - HEX	$4.41	4
014	15AB709CP	SUBFRAME - FRONT	15AB709CP SUBFRAME - FRONT	$5,616.01	1
015	00RL004	FELT TAPE	00RL004 FELT TAPE FELT TAPE;	-	2	Enquire
