Name: 11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS
Rating: 4.5 (1 reviews)

11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS of McLaren McLaren Senna

View All

McLaren Senna - 11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS

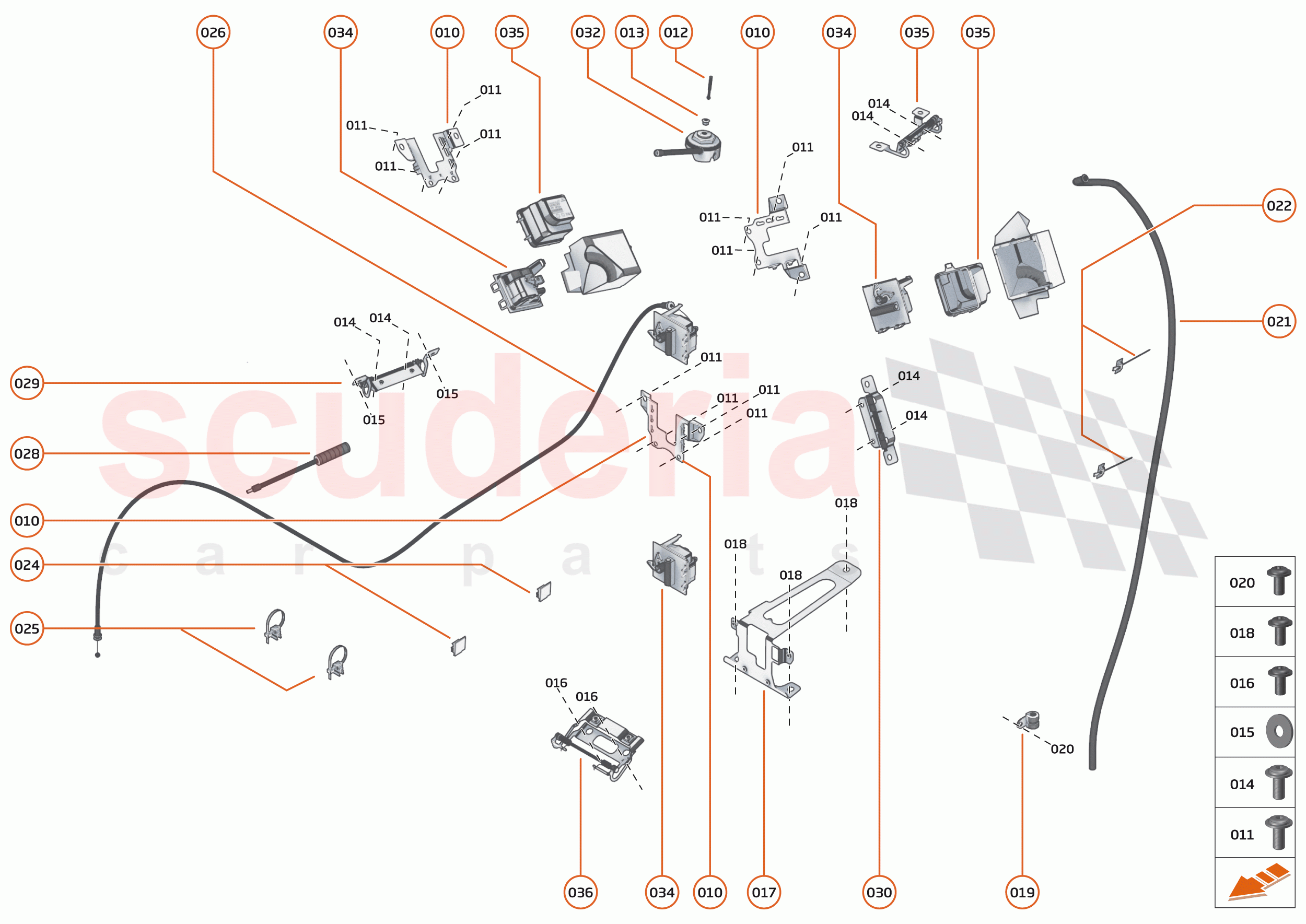

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15AA853CP	BRACKET - ACTUATOR MOUNTING	$38.84	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA430	SCREW - M4X10 - BUTTON HEAD - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC198CP	STRIKER - OIL FILLER FLAP	$733.50	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC103	WASHER - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA903CP	BRACKET - LATCH	$132.81	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA609	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5198CP	FUEL FILLER DRAINAGE HOSE	$184.55	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL009	TY-FAST PLATFORM-750-0-C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB211	CLIP - PIPE - WINDSCREEN WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC338CP	SERVICE COVER RELEASE - MANUAL	$291.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9828LP	TOOL - ENGINE COVER - 675LT	$122.82	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC898CP	HINGE - WATER FILLER FLAP	$217.95	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC899CP	ASSY HINGE - FUEL FILLER FLAP	$180.88	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC708CP	LATCH - OIL FILLER FLAP	$334.64	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3932CP	ACTUATOR - FUEL FILLER	$82.02	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3933CP	HEATSHIELD - ACTUATOR HELLA	$58.25	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5805CP	ASSY HINGE SERVICE COVER	$116.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AA853CP	BRACKET - ACTUATOR MOUNTING	15AA853CP BRACKET - ACTUATOR MOUNTING	$38.84	3
011	00RA430	SCREW - M4X10 - BUTTON HEAD - 10.9	00RA430 SCREW - M4X10 - BUTTON HEAD - 10.9 Superseded parts: 00RA111;	-	12	Enquire
012	15AC198CP	STRIKER - OIL FILLER FLAP	15AC198CP STRIKER - OIL FILLER FLAP	$733.50	1
013	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX	-	1	Enquire
014	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10	-	6	Enquire
015	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10	-	2	Enquire
016	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	2	Enquire
017	15AA903CP	BRACKET - LATCH	15AA903CP BRACKET - LATCH	$132.81	1
018	00RA609	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85	00RA609 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85	-	3	Enquire
019	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6	-	1	Enquire
020	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD	-	1	Enquire
021	13A5198CP	FUEL FILLER DRAINAGE HOSE	13A5198CP FUEL FILLER DRAINAGE HOSE	$184.55	1
022	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C	-	2	Enquire
024	00RB211	CLIP - PIPE - WINDSCREEN WASHER	00RB211 CLIP - PIPE - WINDSCREEN WASHER	-	2	Enquire
025	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM	-	2	Enquire
026	15AC338CP	SERVICE COVER RELEASE - MANUAL	15AC338CP SERVICE COVER RELEASE - MANUAL	$291.40	1
028	11A9828LP	TOOL - ENGINE COVER - 675LT	11A9828LP TOOL - ENGINE COVER - 675LT	$122.82	1
029	15AC898CP	HINGE - WATER FILLER FLAP	15AC898CP HINGE - WATER FILLER FLAP	$217.95	1
030	15AC899CP	ASSY HINGE - FUEL FILLER FLAP	15AC899CP ASSY HINGE - FUEL FILLER FLAP	$180.88	1
031	15AC897CP	HINGE - OIL FILLER FLAP	15AC897CP HINGE - OIL FILLER FLAP	$205.21	1
032	15AC708CP	LATCH - OIL FILLER FLAP	15AC708CP LATCH - OIL FILLER FLAP	$334.64	1
034	13A3932CP	ACTUATOR - FUEL FILLER	13A3932CP ACTUATOR - FUEL FILLER	$82.02	3
035	13A3933CP	HEATSHIELD - ACTUATOR HELLA	13A3933CP HEATSHIELD - ACTUATOR HELLA	$58.25	2
036	13A5805CP	ASSY HINGE SERVICE COVER	13A5805CP ASSY HINGE SERVICE COVER	$116.55	1

11 - Exterior Ornamentation - 11.5 - Filler Bowls And Covers

McLaren Senna

McLaren Senna - 11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS
