14 - Hvac - 14.1 - Hvac Inlet And Distribution

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 14 - HVAC - 14.1 - HVAC INLET AND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $306.42 To Order
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
00RC075 WASHER - NYLON - 14.35X6.45X2.39 Enquire To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A1711CP UNIT-HVAC INLET 24 Enquire To Order
Photo Part No Description Price (each) Stock
11A7034CP Drain Tube - HVAC $48.18 To Order
Photo Part No Description Price (each) Stock
11A6274CP Distribution Unit - HVAC Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA369 SCREW - PLAS TECH - M6X16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $72.28 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $443.34 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $62.63 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
12A2498CP Hose - Heater to Pump - HVAC $983.08 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Enquire To Order
Photo Part No Description Price (each) Stock
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
Photo Part No Description Price (each) Stock
12A2496CP Hose - Heater to Engine - HVAC $1,869.82 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
12A2542CP Hose Assy - Compressor to Condenser - Front $402.17 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
12A2494CP Hose Assy - Compressor to HVAC Unit - Longitudinal Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
12A2500CP Hose Assy - Condenser - Lateral $555.39 To Order
Photo Part No Description Price (each) Stock
12A2544CP Hose - Condenser to Lateral Pipe - LH $574.55 To Order
Photo Part No Description Price (each) Stock
12A2545CP Hose - Condenser to Lateral Pipe - RH $574.55 To Order
Photo Part No Description Price (each) Stock
12A2546CP Hose - Compressor - Rear - HVAC $1,137.29 To Order
Photo Part No Description Price (each) Stock
12A2547CP Hose - Compressor - Front - HVAC $1,137.29 To Order
Photo Part No Description Price (each) Stock
12A2965CP Hose - Condenser to Receiver Drier - HVAC - inc. Pressure Sensor $976.74 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $306.42 To Order
Photo Part No Description Price (each) Stock
00RB098 P-CLIP - DIA 10 - SILICONE Enquire To Order
Photo Part No Description Price (each) Stock
12A2751CP Hose Assy - Receiver Drier to - Longitudinal Pipe $325.57 To Order
Photo Part No Description Price (each) Stock
12A2492CP Hose Assy - Receiver Drier to HVAC Unit - Longitudinal $459.64 To Order
Photo Part No Description Price (each) Stock
12L0225CP Clip - 4 Way - Rear $173.46 To Order
Photo Part No Description Price (each) Stock
12A0822CP CONDENSER - HVAC - LH $2,371.02 To Order
Photo Part No Description Price (each) Stock
12A0875CP CONDENSER - HVAC - RH $2,371.02 To Order
Photo Part No Description Price (each) Stock
11A4152CP HVAC CABIN AIR FILTER $77.09 IN STOCK
Photo Part No Description Price (each) Stock
12AA108CP O-RING ID9.19 X THK2.62 $6.93 To Order
Photo Part No Description Price (each) Stock
12AA109CP O-RING ID6.7 X THK1.8 $6.93 To Order
View All

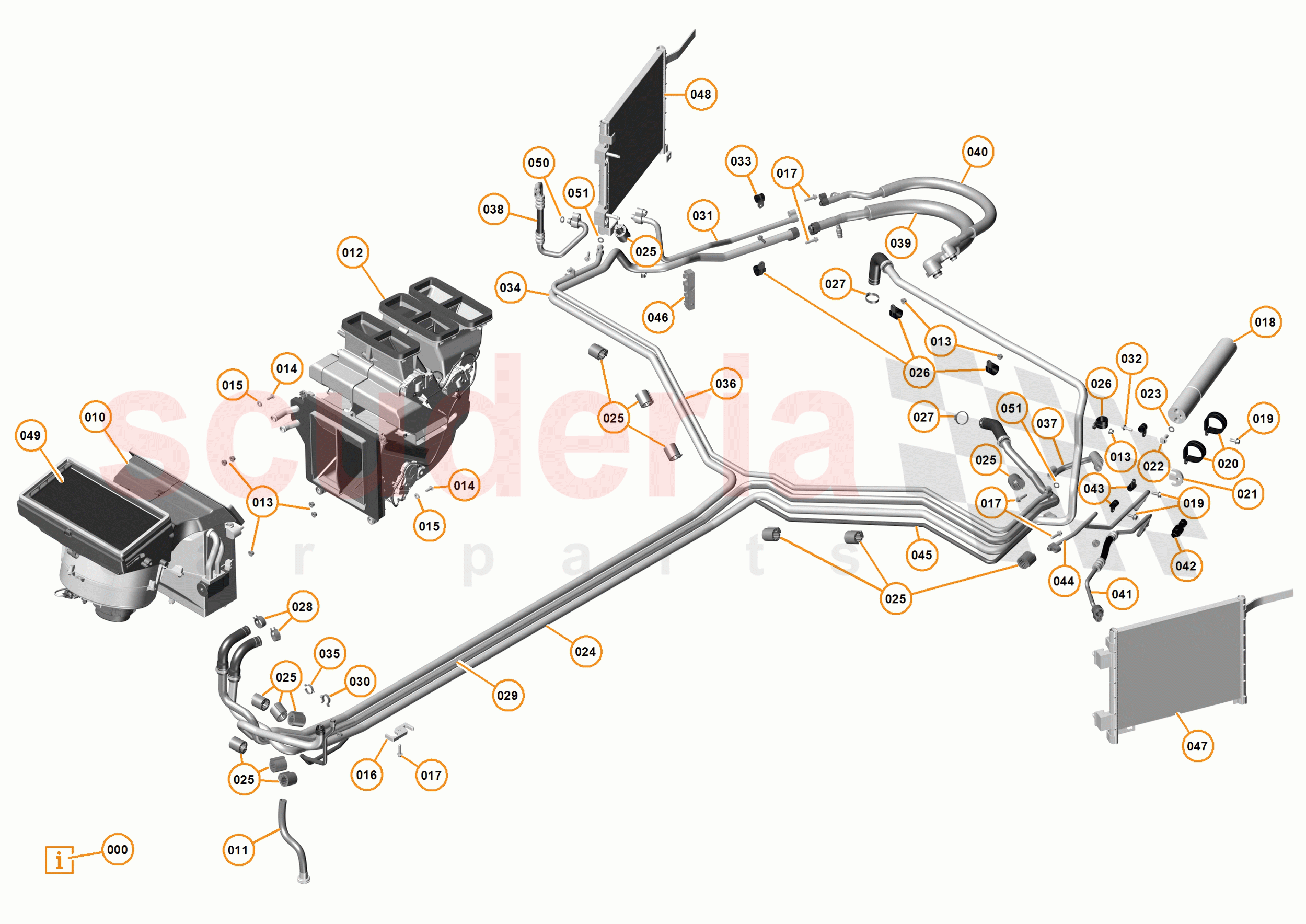

14 - HVAC - 14.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A6627CP
SENSOR - PRESSURE - HVAC 		$306.42 1
000 00RB130
CLIP - SPRING BAND - 22/12 		- 4 Enquire
000 00RC075
WASHER - NYLON - 14.35X6.45X2.39 		- 2 Enquire
000 11A4857CP
HVAC-COVER-FLAP MOTOR 		$33.73 1
000 11A4141CP
Pipe - Venturi to Sensor - HVAC 		$91.54 1
000 11A4138CP
Sensor - Cabin Temp - HVAC 		$81.38 1
000 11A4151CP
HVAC DUCT FACIA SEAL SET 		$72.28 1
000 11A4150CP
HVAC BULKHEAD SEAL24IST UNIT 		$106.01 1
000 11A4149CP
HVAC BULKHEAD SEAL INTAKE UNIT 		$106.01 1
000 11A4153CP
HVAC FAN AND MODULE 		$727.77 1
000 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
010 11A1711CP
UNIT-HVAC INLET 24 		- 1 Enquire
011 11A7034CP
Drain Tube - HVAC 		$48.18 1
012 11A6274CP
Distribution Unit - HVAC 		- 1 Enquire
013 00RA055
NUT - M6 - LOCKING - HEX 		- 9 Enquire
014 00RA369
SCREW - PLAS TECH - M6X16MM 		- 2 Enquire
015 00RA075
NUT - M8-8 - HEX 		- 6 Enquire
016 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.28 1
017 00RA120
SCREW - M6X25 - HEX 		- 6 Enquire
018 12A2757CP
RECEIVER DRIER - HVAC 		$443.34 1
019 00RA061
Screw - M6x16 - Flange Hex 		- 3 Enquire
020 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
021 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$62.63 1
022 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
023 00RC038
WASHER - WAVE M8 		- 1 Enquire
024 12A2498CP
Hose - Heater to Pump - HVAC 		$983.08 1
025 00RA367
PIPE PROTECTOR - 19MM ID 		- 14 Enquire
026 00RB060
P CLIP - DIA 20 		- 3 Enquire
027 00RB137
HOSE CLAMP - 28.6 - 706R - OETIKER 		- 2 Enquire
028 00RB130
CLIP - SPRING BAND - 22/12 		- 2 Enquire
029 12A2496CP
Hose - Heater to Engine - HVAC 		$1,869.82 1
030 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
031 12A2542CP
Hose Assy - Compressor to Condenser - Front 		$402.17 1
032 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
033 00RB027
P-CLIP - DIAMETER 13 - M6 		- 1 Enquire
034 12A2494CP
Hose Assy - Compressor to HVAC Unit - Longitudinal 		- 1 Enquire
035 00RB008
CLIP - 18-20MM - MALE 		- 1 Enquire
036 12A2500CP
Hose Assy - Condenser - Lateral 		$555.39 1
037 12A2544CP
Hose - Condenser to Lateral Pipe - LH 		$574.55 1
038 12A2545CP
Hose - Condenser to Lateral Pipe - RH 		$574.55 1
039 12A2546CP
Hose - Compressor - Rear - HVAC 		$1,137.29 1
040 12A2547CP
Hose - Compressor - Front - HVAC 		$1,137.29 1
041 12A2965CP
Hose - Condenser to Receiver Drier - HVAC - inc. Pressure Sensor 		$976.74 1
042 11A6627CP
SENSOR - PRESSURE - HVAC 		$306.42 1
043 00RB098
P-CLIP - DIA 10 - SILICONE 		- 3 Enquire
044 12A2751CP
Hose Assy - Receiver Drier to - Longitudinal Pipe 		$325.57 1
045 12A2492CP
Hose Assy - Receiver Drier to HVAC Unit - Longitudinal 		$459.64 1
046 12L0225CP
Clip - 4 Way - Rear 		$173.46 1
047 12A0822CP
CONDENSER - HVAC - LH 		$2,371.02 1
048 12A0875CP
CONDENSER - HVAC - RH 		$2,371.02 1
049 11A4152CP
HVAC CABIN AIR FILTER
IN STOCK 		$77.09 1
050 12AA108CP
O-RING ID9.19 X THK2.62 		$6.93 1
051 12AA109CP
O-RING ID6.7 X THK1.8 		$6.93 1
