45 - Wiring Harness - 45.2 - Body Wiring Harness

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 45 - WIRING HARNESS - 45.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
00RL004 FELT TAPE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12M0929CP Wiring Harness - Body $24,265.86 To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA239 SCREW - M6X16 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB085 P-CLIP - NORMA - DIA 25X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB098 P-CLIP - DIA 10 - SILICONE Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
12M0776CP Tray - Body Harness - Upper $605.81 To Order
Photo Part No Description Price (each) Stock
12M0777CP Tray - Body Harness - Lower $862.19 To Order
Photo Part No Description Price (each) Stock
12M0557CP Bracket - Fusebox - Retention $231.42 To Order
Photo Part No Description Price (each) Stock
RA011 Nut - M6x1.0 Flange $1.89 To Order
Photo Part No Description Price (each) Stock
12M0801CP Cap - Insulation 4x20mm $1.14 To Order
Photo Part No Description Price (each) Stock
00RA511 Nut - M6 - Locking - Hex Flange - Copper Plate Enquire To Order
View All

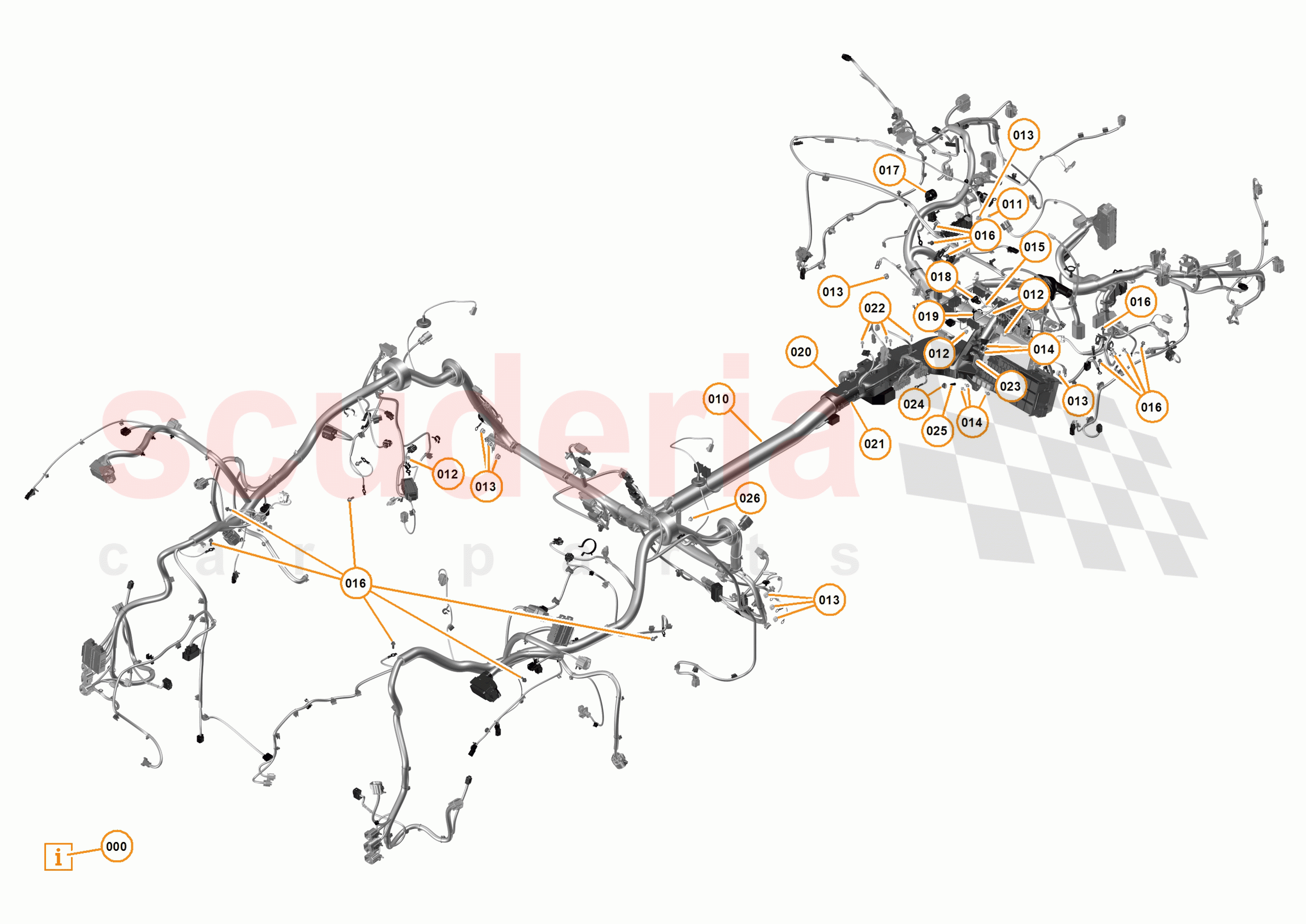

45 - WIRING HARNESS - 45.2 - BODY WIRING HARNESS of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA263
SCREW - M6X20 - BUTTON 		- 1 Enquire
000 00RL001
CABLE TIE - FIRTREE BASE 		- 2 Enquire
000 00RL004
FELT TAPE
Felt Tape; 		- 1 Enquire
000 00RL013
CABLE TIE - 360X4.8MM 		- 2 Enquire
010 12M0929CP
Wiring Harness - Body 		$24,265.86 1
011 00RA054
Nut - M5 - Lock Hex 		- 1 Enquire
012 00RA055
NUT - M6 - LOCKING - HEX 		- 5 Enquire
013 00RA075
NUT - M8-8 - HEX 		- 9 Enquire
014 00RA087
SCREW - M5X10 - HEX 		- 12 Enquire
015 00RA239
SCREW - M6X16 - LOCK HEX 		- 1 Enquire
016 00RA313
SCREW - M6X16 - HEX - SILVER 		- 15 Enquire
017 00RB085
P-CLIP - NORMA - DIA 25X15 		- 1 Enquire
018 00RB098
P-CLIP - DIA 10 - SILICONE 		- 1 Enquire
019 00RL012
CABLE TIE - 300X4.6MM 		- 4 Enquire
020 12M0776CP
Tray - Body Harness - Upper 		$605.81 1
021 12M0777CP
Tray - Body Harness - Lower 		$862.19 1
022 00RA063
Screw - M5x16 - Hex 		- 4 Enquire
023 12M0557CP
Bracket - Fusebox - Retention 		$231.42 1
024 RA011
Nut - M6x1.0 Flange 		$1.89 1
025 12M0801CP
Cap - Insulation 4x20mm 		$1.14 1
026 00RA511
Nut - M6 - Locking - Hex Flange - Copper Plate 		- 1 Enquire
