McLaren P1 Coupe - 44 - HYBRID - 44.1 - ENERGY STORAGE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RE010 Screw In - Gore - Vent Nut Enquire To Order
00RE009 Seal - Vent - Screw - M12X1.5X10 - NYL - Black Enquire To Order
12J0399CP Spacer - Burst Valve Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12J0178CP Handle - Service Disconnect - ESS $573.01 To Order
Photo Part No Description Price (each) Stock
12J0450CP High Voltage Battery Assy $137,234.76 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC082 Washer - M8 14x87x1 - Dowty Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12J0244CP Primary Seal - Bulkhead - High Voltage Battery $420.21 To Order
Photo Part No Description Price (each) Stock
12J0245CP Seal - High Voltage Battery Bulkhead - MCU $267.40 To Order
Photo Part No Description Price (each) Stock
12J0185CP Stud Assy - Bulkhead Ground $187.30 To Order
Photo Part No Description Price (each) Stock
00RA163 Nut - M8-8.8 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
12J0090CP Busbar - High Voltage Battery to MCU $38.65 To Order
Photo Part No Description Price (each) Stock
00RA407 Hex Head - M10x18 - Overmoulded Enquire To Order
Photo Part No Description Price (each) Stock
00RA108 SCREW - BUTTON HEAD - FLANGE - M4X12-10.9 Enquire To Order
Photo Part No Description Price (each) Stock
12J0151CP Hose - Coolant - Outlet - High Voltage Battery - External $386.67 To Order
Photo Part No Description Price (each) Stock
00RE006 Grommet - Open - 20mm Enquire To Order
Photo Part No Description Price (each) Stock
00RB097 P-CLIP - DIA 25 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB154 Hose Clamp - Oetiker - 27.1 Enquire To Order
Photo Part No Description Price (each) Stock
12J0383CP Hose - Coolant - Inlet - High Voltage Battery - External $109.99 To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
12J0228CP Foam - HV Battery - LH $236.02 To Order
Photo Part No Description Price (each) Stock
12J0229CP Foam - HV Battery - RH $233.96 To Order
Photo Part No Description Price (each) Stock
12J0234CP Foam - HV Battery - Front $403.38 To Order
Photo Part No Description Price (each) Stock
12J0235CP Foam - HV Battery - Rear $1,344.66 To Order
Photo Part No Description Price (each) Stock
12J0331CP Burst Valve - HV Battery $154.66 To Order
Photo Part No Description Price (each) Stock
12J0174CP Earth Braid - High Voltage Battery $281.37 To Order
Photo Part No Description Price (each) Stock
12J0390CP Battery Insulation - Front - Lower $230.50 To Order
Photo Part No Description Price (each) Stock
12J0391CP Battery Insulation - Front - Upper $143.72 To Order
Photo Part No Description Price (each) Stock
12J0392CP Battery Insulation - Top $211.29 To Order
Photo Part No Description Price (each) Stock
12J0393CP Battery Insulation - Service Disconnect Cover $33.83 To Order
Photo Part No Description Price (each) Stock
12J0330CP Bulkhead Drain Fitting $33.61 To Order
Photo Part No Description Price (each) Stock
12J0198CP Bleed Valve - Battery $148.26 To Order
Photo Part No Description Price (each) Stock
13FA041SP STEPLESS EAR CLAMP - 7.0-8.7 $6.95 To Order
Photo Part No Description Price (each) Stock
00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Enquire To Order
View All

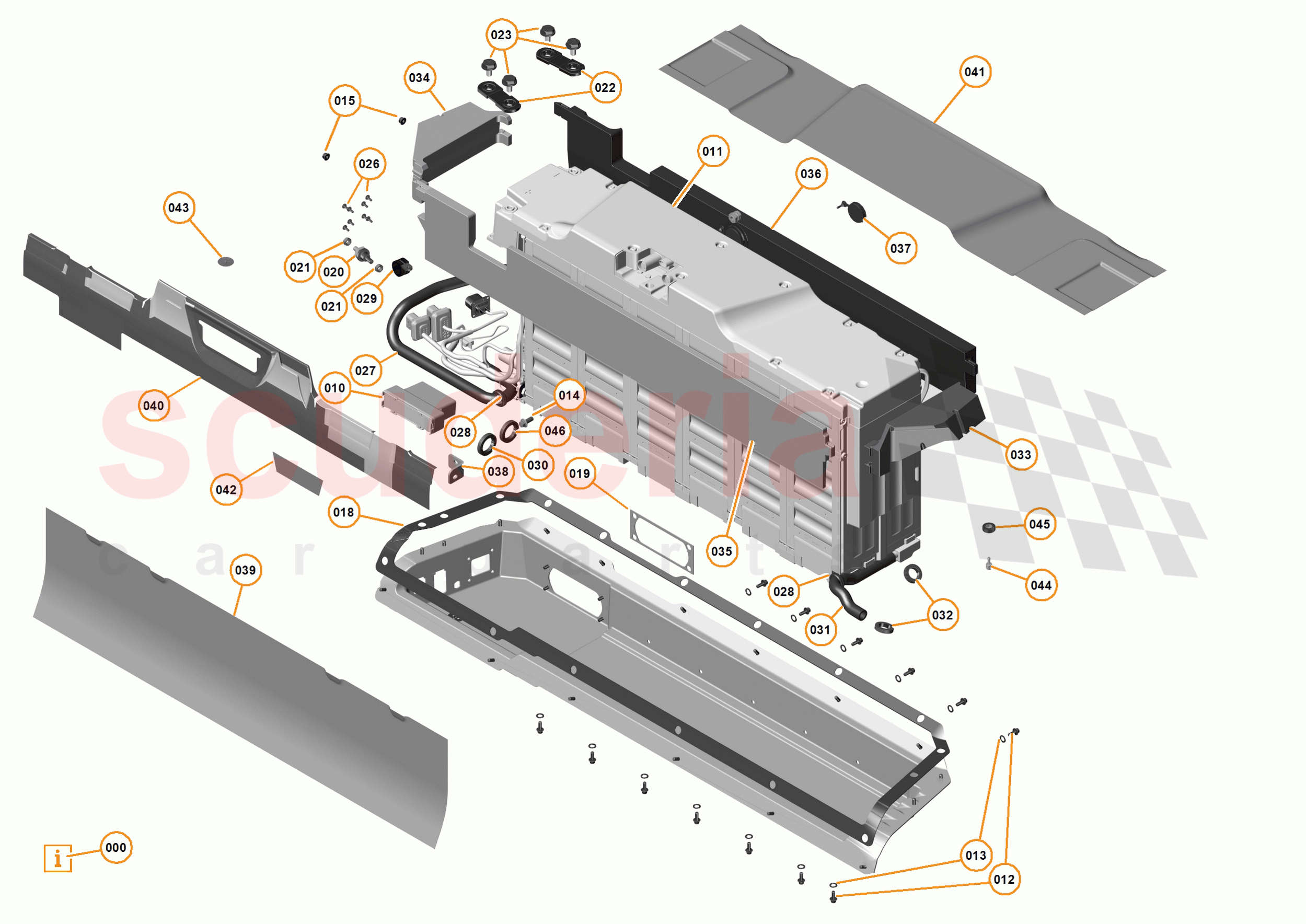

44 - HYBRID - 44.1 - ENERGY STORAGE SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RE010
Screw In - Gore - Vent Nut 		- 1 Enquire
000 00RE009
Seal - Vent - Screw - M12X1.5X10 - NYL - Black 		- 1 Enquire
000 12J0399CP
Spacer - Burst Valve 		- 1 Enquire
000 12JA013CP
PCB ASSY - HYBRID BATTERY 		$9,663.37 1
000 12JA478CP
P1UP Hybrid Battery Installation Kit 		$144.06 1
000 12JA178CP
P1 GEN 2 BATTERY DEPOSIT 		$40,165.87 1
010 12J0178CP
Handle - Service Disconnect - ESS 		$573.01 1
011 12J0450CP
High Voltage Battery Assy 		$137,234.76 1
012 00RA313
SCREW - M6X16 - HEX - SILVER 		- 13 Enquire
013 00RC082
Washer - M8 14x87x1 - Dowty 		- 13 Enquire
014 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
015 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
018 12J0244CP
Primary Seal - Bulkhead - High Voltage Battery 		$420.21 1
019 12J0245CP
Seal - High Voltage Battery Bulkhead - MCU 		$267.40 1
020 12J0185CP
Stud Assy - Bulkhead Ground 		$187.30 1
021 00RA163
Nut - M8-8.8 - Hex 		- 2 Enquire
022 12J0090CP
Busbar - High Voltage Battery to MCU 		$38.65 2
023 00RA407
Hex Head - M10x18 - Overmoulded 		- 4 Enquire
026 00RA108
SCREW - BUTTON HEAD - FLANGE - M4X12-10.9 		- 8 Enquire
027 12J0151CP
Hose - Coolant - Outlet - High Voltage Battery - External 		$386.67 1
028 00RE006
Grommet - Open - 20mm 		- 2 Enquire
029 00RB097
P-CLIP - DIA 25 - M6 		- 1 Enquire
030 00RB154
Hose Clamp - Oetiker - 27.1 		- 2 Enquire
031 12J0383CP
Hose - Coolant - Inlet - High Voltage Battery - External 		$109.99 1
032 00RB094
OETIKER CLIP - 21.0 		- 2 Enquire
033 12J0228CP
Foam - HV Battery - LH 		$236.02 1
034 12J0229CP
Foam - HV Battery - RH 		$233.96 1
035 12J0234CP
Foam - HV Battery - Front 		$403.38 1
036 12J0235CP
Foam - HV Battery - Rear 		$1,344.66 1
037 12J0331CP
Burst Valve - HV Battery 		$154.66 1
038 12J0174CP
Earth Braid - High Voltage Battery 		$281.37 1
039 12J0390CP
Battery Insulation - Front - Lower 		$230.50 1
040 12J0391CP
Battery Insulation - Front - Upper 		$143.72 1
041 12J0392CP
Battery Insulation - Top 		$211.29 1
042 12J0393CP
Battery Insulation - Service Disconnect Cover 		$33.83 1
043 12J0330CP
Bulkhead Drain Fitting 		$33.61 1
044 12J0198CP
Bleed Valve - Battery 		$148.26 1
045 13FA041SP
STEPLESS EAR CLAMP - 7.0-8.7 		$6.95 1
046 00RB137
HOSE CLAMP - 28.6 - 706R - OETIKER 		- 1 Enquire
