McLaren GT - 10 - CLOSURES_ANCILLARIES - 10.5 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
13A4868CP SEAL - DOOR MIRROR - GASKET - LOWER - LH $35.29 To Order
13A4870CP SEAL - DOOR MIRROR - GASKET - LOWER - RH $35.29 To Order
22AA720GP SEAL DOOR MIRROR GASKET LOWER LH $16.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH Enquire To Order
11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH Enquire To Order
11A8434CP MIRROR GLASS ASSEMBLY - CONVEX - LH $332.40 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8446CP ACTUATOR - DOOR MIRROR GLASS $140.01 To Order
Photo Part No Description Price (each) Stock
11A8454CP FRAME - DOOR MIRROR GLASS - LH $99.99 To Order
11A8453CP FRAME - DOOR MIRROR GLASS - RH $99.99 To Order
Photo Part No Description Price (each) Stock
11A8456CP MOTOR - DOOR MIRROR GLASS - LH $130.00 To Order
11A8455CP MOTOR - DOOR MIRROR GLASS - RH $130.00 To Order
Photo Part No Description Price (each) Stock
13A4869CP SEAL - DOOR MIRROR - MOUNT - LH $45.37 To Order
13A4871CP SEAL - DOOR MIRROR - MOUNT - RH $45.37 To Order
Photo Part No Description Price (each) Stock
13A4912CP INTERNAL ARM - DOOR MIRROR - LH $170.02 To Order
13A4911CP INTERNAL ARM - DOOR MIRROR - RH $170.02 To Order
Photo Part No Description Price (each) Stock
22AA048MP SCALP LH BLACK $389.94 To Order
22AA046MP SCALP RH BLACK $423.61 To Order
14AB092CP SCALP - DOOR MIRROR - CARBON - RH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8417CP SCALP - LOWER - UNPAINTED - LH $60.00 To Order
14A4331CP SCALP - DOOR MIRROR - LOWER - LH $63.21 To Order
14A4329CP SCALP - DOOR MIRROR - LOWER - RH $63.21 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14AA715CP SCALP - REINFORCEMENT - LH $36.25 To Order
14AA673CP SCALP - REINFORCEMENT - RH $34.52 To Order
Photo Part No Description Price (each) Stock
13A4872CP BASE COVER - DOOR MIRROR - UPPER - LH $50.00 To Order
13A4873CP BASE COVER - DOOR MIRROR - UPPER - RH $50.00 To Order
22AA717GP MLDG BASE DOOR MIRROR COVER UPR LH $40.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A2049CP COVER - DOOR MIRROR BASE - LOWER - LH $39.99 To Order
13A2055CP COVER - DOOR MIRROR BASE - LOWER - RH $39.99 To Order
22AA722GP MLDG BASE DOOR MIRROR COVER LWR LH $30.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA374 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA599 SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
14A1450CP WIRING HARNESS - DOOR MIRROR - LH $95.00 To Order
14A1427CP WIRING HARNESS - DOOR MIRROR - RH $95.00 To Order
Photo Part No Description Price (each) Stock
22AA904GP HARNESS WITH CONNECTOR - DR MIR LH $80.68 To Order
22AA905GP HARNESS WITH CONNECTOR - DR MIR RH $85.71 To Order
Photo Part No Description Price (each) Stock
13AA564CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH Enquire To Order
13AA570CP DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH $4,080.15 To Order
View All

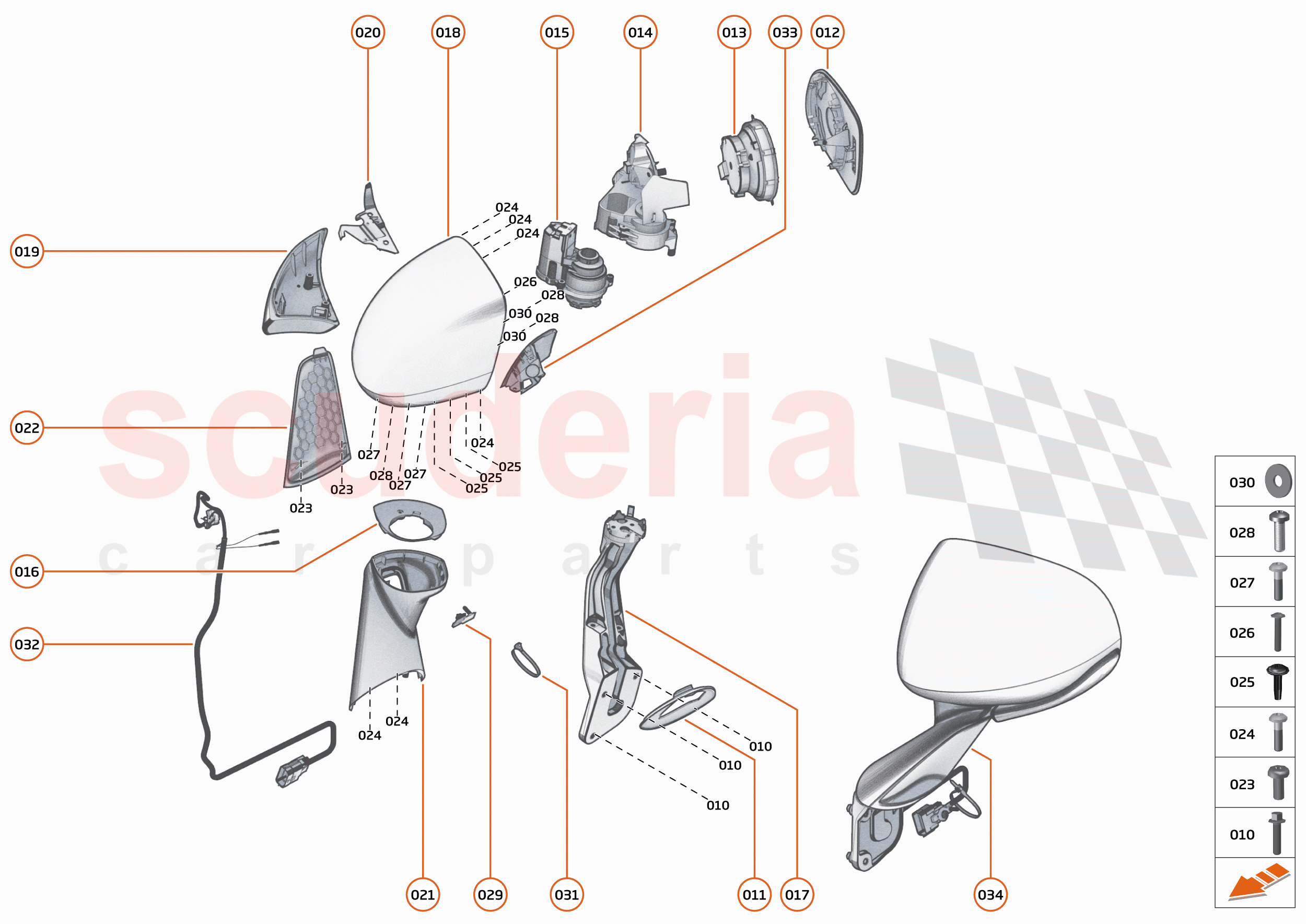

10 - CLOSURES_ANCILLARIES - 10.5 - SIDE MIRRORS of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA525
SCREW - POZI - 2.5X8MM 		- 2 Enquire
000 22AA847GP
ANTI SQUEAK TAPE 0.5MM 100X3 		- 1 Enquire
000 22AA848GP
ANTI SQUEAK TAPE 0.5MM 120X3 		- 1 Enquire
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
011 13A4868CP
SEAL - DOOR MIRROR - GASKET - LOWER - LH 		$35.29 1
011 13A4870CP
SEAL - DOOR MIRROR - GASKET - LOWER - RH 		$35.29 1
011 22AA720GP
SEAL DOOR MIRROR GASKET LOWER LH 		$16.11 1
011 22AA721GP
SEAL DOOR MIRROR GASKET LOWER RH 		$16.11 1
012 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH 		- 1 Enquire
012 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH 		- 1 Enquire
012 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH 		$332.40 1
012 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH 		- 1 Enquire
012 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH 		- 1 Enquire
012 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH 		$332.40 1
013 11A8446CP
ACTUATOR - DOOR MIRROR GLASS 		$140.01 1
014 11A8454CP
FRAME - DOOR MIRROR GLASS - LH 		$99.99 1
014 11A8453CP
FRAME - DOOR MIRROR GLASS - RH 		$99.99 1
015 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH 		$130.00 1
015 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH 		$130.00 1
016 13A4869CP
SEAL - DOOR MIRROR - MOUNT - LH 		$45.37 1
016 13A4871CP
SEAL - DOOR MIRROR - MOUNT - RH 		$45.37 1
017 13A4912CP
INTERNAL ARM - DOOR MIRROR - LH 		$170.02 1
017 13A4911CP
INTERNAL ARM - DOOR MIRROR - RH 		$170.02 1
018 22AA048MP
SCALP LH BLACK 		$389.94 1
018 22AA046MP
SCALP RH BLACK 		$423.61 1
018 14AB092CP
SCALP - DOOR MIRROR - CARBON - RH 		- 1 Enquire
018 14AB091CP
SCALP - DOOR MIRROR - CARBON - LH 		- 1 Enquire
018 14A3464CP
SCALP - DOOR MIRROR - LH 		$95.00 1
018 14A3463CP
SCALP - DOOR MIRROR - RH 		$95.00 1
019 11A8417CP
SCALP - LOWER - UNPAINTED - LH 		$60.00 1
019 14A4331CP
SCALP - DOOR MIRROR - LOWER - LH 		$63.21 1
019 14A4329CP
SCALP - DOOR MIRROR - LOWER - RH 		$63.21 1
019 11A8416CP
SCALP - LOWER - UNPAINTED - RH 		$60.00 1
020 14AA715CP
SCALP - REINFORCEMENT - LH 		$36.25 1
020 14AA673CP
SCALP - REINFORCEMENT - RH 		$34.52 1
021 13A4872CP
BASE COVER - DOOR MIRROR - UPPER - LH 		$50.00 1
021 13A4873CP
BASE COVER - DOOR MIRROR - UPPER - RH 		$50.00 1
021 22AA717GP
MLDG BASE DOOR MIRROR COVER UPR LH 		$40.32 1
021 22AA718GP
MLDG BASE DOOR MIRROR COVER UPR RH 		$40.32 1
022 13A2049CP
COVER - DOOR MIRROR BASE - LOWER - LH 		$39.99 1
022 13A2055CP
COVER - DOOR MIRROR BASE - LOWER - RH 		$39.99 1
022 22AA722GP
MLDG BASE DOOR MIRROR COVER LWR LH 		$30.24 1
022 22AA723GP
MLDG BASE DOOR MIRROR COVER LWR RH 		$30.24 1
023 00RA140
SCREW - 3X8 - TORX 		- 2 Enquire
024 00RA363
SCREW - TORX - 4X12 		- 6 Enquire
025 00RA374
SCREW - TORX - 3.5X12 		- 3 Enquire
026 00RA442
SCREW - TORX - 3X38 		- 1 Enquire
027 00RA491
SCREW - TORX - 3X20 		- 3 Enquire
028 00RA599
SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 		- 3 Enquire
029 00RB059
CLIP CONNECTOR - TRW 		- 1 Enquire
030 00RC027
WASHER - M4 FORM C - LARGE 		- 2 Enquire
031 00RL023
CABLE TIE - HIGH TEMP 		- 1 Enquire
032 14A1450CP
WIRING HARNESS - DOOR MIRROR - LH 		$95.00 1
032 14A1427CP
WIRING HARNESS - DOOR MIRROR - RH 		$95.00 1
033 22AA904GP
HARNESS WITH CONNECTOR - DR MIR LH 		$80.68 1
033 22AA905GP
HARNESS WITH CONNECTOR - DR MIR RH 		$85.71 1
034 13AA564CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH 		- 1 Enquire
034 13AA570CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH 		$4,080.15 1
