20 - STEERING - 20.1 - STEERING FLUID SYSTEM of McLaren McLaren GT

View All

McLaren GT - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

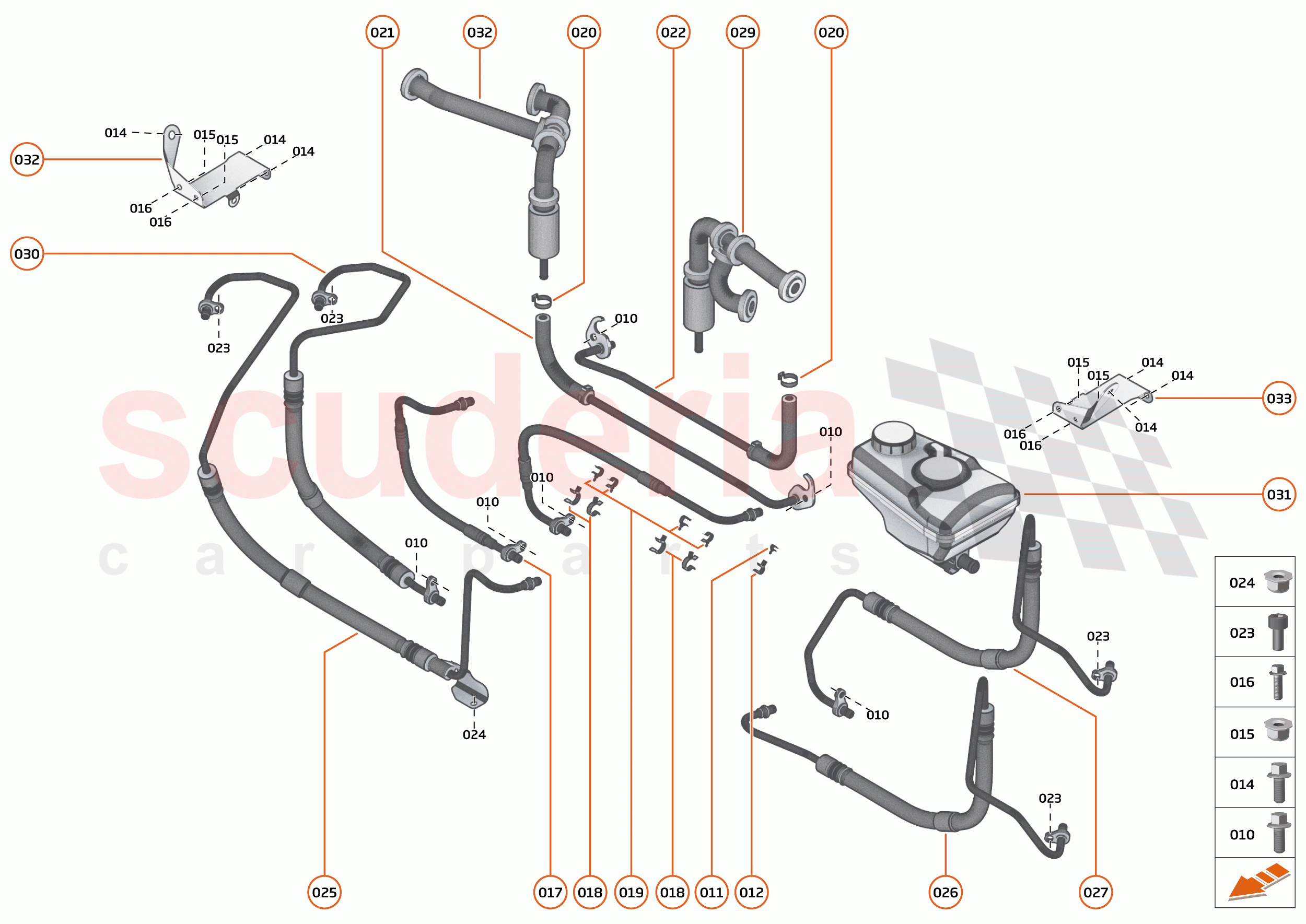

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB042	SWIVEL PIPE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB046	CLIP - 8-9MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA120	SCREW - M6X25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13D0067CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - RHD	$308.58	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB045	CLIP - 9.5-10MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB110	OETIKER CLIP - 19.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA006CP	HOSE - FILTER TO STEERING RACK - RHD	$96.41	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA012CP	HOSE - PAS PUMP - STEERING RACK - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA015CP	HOSE - PAS PUMP - STEERING RACK - RHD	$308.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA016CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - RHD	$308.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14DA045CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$405.01	To Order
	14D0038CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$559.31	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA011CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA034CP	RESERVOIR - PAS FLUID	$77.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14DA021CP	BRACKET - PAS FLUID RESERVOIR - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14DA022CP	BRACKET - PAS FLUID RESERVOIR - RHD	$43.37	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX	-	8	Enquire
011	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP	-	1	Enquire
012	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE	-	1	Enquire
013	13D0066CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - LHD	13D0066CP HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - LHD	-	1	Enquire
014	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	3	Enquire
015	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	4	Enquire
016	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX	-	1	Enquire
017	13D0067CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - RHD	13D0067CP HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - RHD	$308.58	1
018	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	Enquire
019	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE	-	1	Enquire
020	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2	-	1	Enquire
021	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	13DA004CP HOSE - FILTER TO STEERING RACK - LHD	-	1	Enquire
022	13DA006CP	HOSE - FILTER TO STEERING RACK - RHD	13DA006CP HOSE - FILTER TO STEERING RACK - RHD	$96.41	1
023	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72	-	1	Enquire
024	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED	-	1	Enquire
025	13DA012CP	HOSE - PAS PUMP - STEERING RACK - LHD	13DA012CP HOSE - PAS PUMP - STEERING RACK - LHD	-	1	Enquire
026	13DA015CP	HOSE - PAS PUMP - STEERING RACK - RHD	13DA015CP HOSE - PAS PUMP - STEERING RACK - RHD	$308.58	1
027	13DA016CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - RHD	13DA016CP HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - RHD	$308.58	1
028	14DA044CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	14DA044CP HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	-	1	Enquire
028	14D0043CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	14D0043CP HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	-	1	Enquire
029	14DA045CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	14DA045CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$405.01	1
029	14D0038CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	14D0038CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$559.31	1
030	13DA011CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - LHD	13DA011CP HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - LHD	-	1	Enquire
031	13DA034CP	RESERVOIR - PAS FLUID	13DA034CP RESERVOIR - PAS FLUID	$77.13	1
032	14DA021CP	BRACKET - PAS FLUID RESERVOIR - LHD	14DA021CP BRACKET - PAS FLUID RESERVOIR - LHD	-	1	Enquire
033	14DA022CP	BRACKET - PAS FLUID RESERVOIR - RHD	14DA022CP BRACKET - PAS FLUID RESERVOIR - RHD	$43.37	1
