39 - Infotainment - 39.1 - Sound System

McLaren GT

Find Your Part

McLaren GT - 39 - INFOTAINMENT - 39.1 - SOUND SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13MA267CP 100MM - HIGH-LINE $144.67 To Order
Photo Part No Description Price (each) Stock
13M1024CP SPEAKER - 200MM - HIGH-LINE $364.14 To Order
13M1029CP SPEAKER - 165MM $105.39 To Order
Photo Part No Description Price (each) Stock
13M1068CP SPEAKER BRACKET - DOOR - LH - 200MM $132.70 To Order
13M1079CP SPEAKER BRACKET - DOOR - LH - 165MM $142.18 To Order
Photo Part No Description Price (each) Stock
13M1069CP SPEAKER BRACKET - DOOR - RH - 200MM $132.70 To Order
13M1081CP SPEAKER BRACKET - DOOR - RH - 165MM $142.18 To Order
Photo Part No Description Price (each) Stock
13M1073CP BRACKET - REAR QUARTER - 100MM - LH $33.75 To Order
Photo Part No Description Price (each) Stock
13M1076CP BRACKET - REAR QUARTER - 100MM - RH $33.75 To Order
Photo Part No Description Price (each) Stock
22MA481GP AUDIO AMPLIFIER 16CH $2,565.58 To Order
Photo Part No Description Price (each) Stock
22MA451GP SOUND ABSORPTION FOAM FACIA $7.72 To Order
Photo Part No Description Price (each) Stock
14MA003CP TWEETER - 25MM - HIGH LINE $143.73 To Order
13M1028CP SPEAKER - 25MM $43.10 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13MA267CP 100MM - HIGH-LINE $144.67 To Order
View All

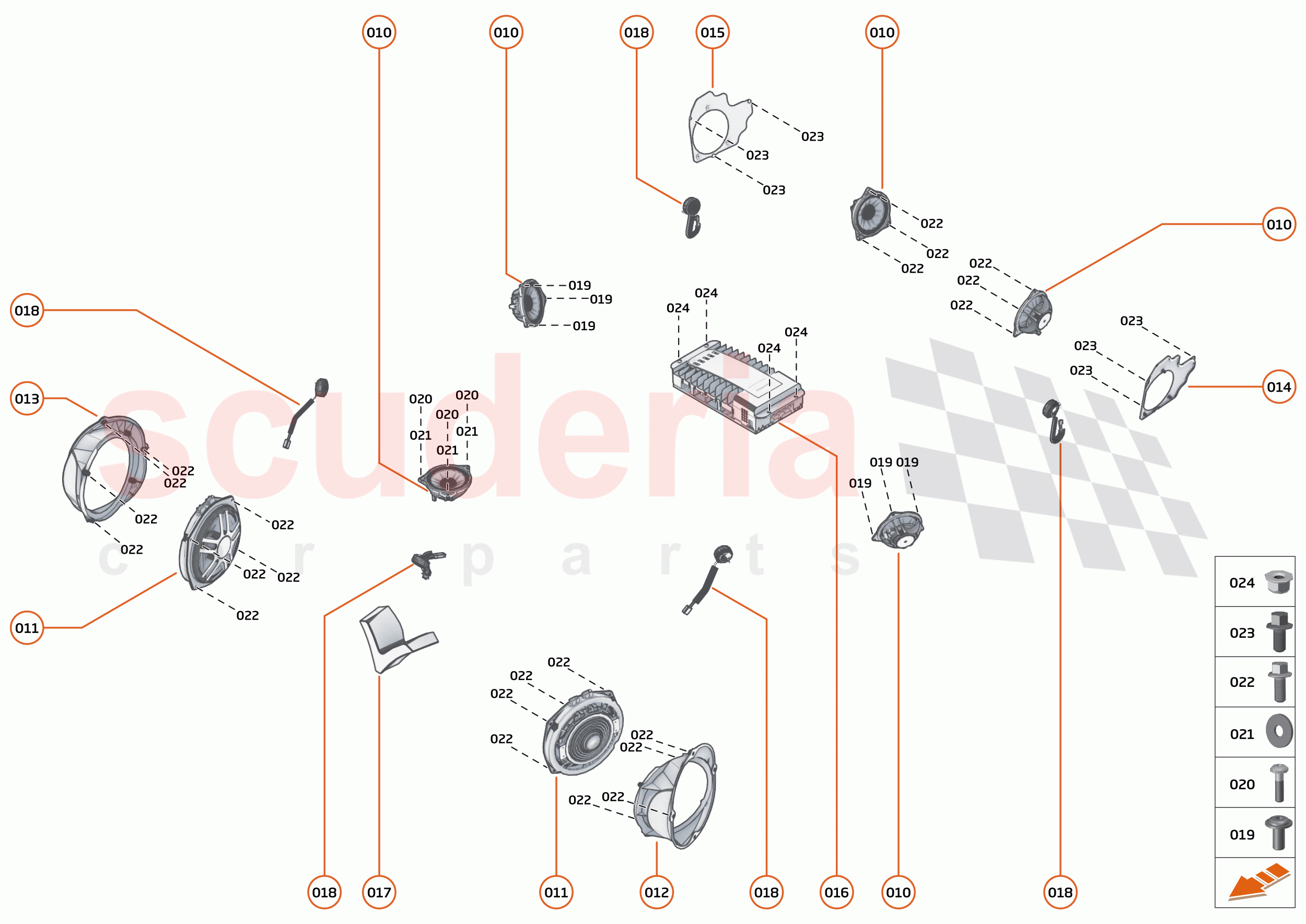

39 - INFOTAINMENT - 39.1 - SOUND SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL004
FELT TAPE
FELT TAPE; 		- 1 Enquire
000 11C0593CP
TAPE ADHESIVE - COROPLAST - 837X - 19X100MM 		$33.75 2
000 00RG026
CABLE TIE - ROTATABLE - EDGE PANEL 		- 1 Enquire
000 00RA574
SCREW - M5X25 - TORX 		- 2 Enquire
000 00RC017
WASHER - M5X15X1.2 		- 14 Enquire
010 13MA267CP
100MM - HIGH-LINE
Superseded parts: 13M1025CP; 		$144.67 1
011 13M1024CP
SPEAKER - 200MM - HIGH-LINE 		$364.14 2
011 13M1029CP
SPEAKER - 165MM 		$105.39 2
012 13M1068CP
SPEAKER BRACKET - DOOR - LH - 200MM 		$132.70 1
012 13M1079CP
SPEAKER BRACKET - DOOR - LH - 165MM 		$142.18 1
013 13M1069CP
SPEAKER BRACKET - DOOR - RH - 200MM 		$132.70 1
013 13M1081CP
SPEAKER BRACKET - DOOR - RH - 165MM 		$142.18 1
014 13M1073CP
BRACKET - REAR QUARTER - 100MM - LH 		$33.75 1
015 13M1076CP
BRACKET - REAR QUARTER - 100MM - RH 		$33.75 1
016 22MA481GP
AUDIO AMPLIFIER 16CH 		$2,565.58 1
017 22MA451GP
SOUND ABSORPTION FOAM FACIA 		$7.72 1
018 14MA003CP
TWEETER - 25MM - HIGH LINE 		$143.73 1
018 13M1028CP
SPEAKER - 25MM 		$43.10 2
019 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 14 Enquire
020 00RA491
SCREW - TORX - 3X20 		- 3 Enquire
021 00RC027
WASHER - M4 FORM C - LARGE 		- 2 Enquire
022 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
023 00RA165
BOLT - M5X8 - HEX 		- 2 Enquire
024 00RA582
NUT - M5 - HEX 		- 2 Enquire
025 13MA267CP
100MM - HIGH-LINE
Superseded parts: 13M1025CP; 		$144.67 1
