16 - Suspension - 16.3 - Transverse Links Front

McLaren Elva

Find Your Part

McLaren Elva - 16 - SUSPENSION - 16.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
26BA141SP ASSY-WISHBONE-UPR-FR-RH $813.11 To Order
26BA140SP ASSY-WISHBONE-UPR-FR-LH $829.48 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14BA135CP SPACER - WISHBONE $24.26 To Order
Photo Part No Description Price (each) Stock
14B0718CP WISHBONE - LOWER - FRONT - RH $1,777.06 To Order
14B0712CP WISHBONE - LOWER - FRONT - LH $1,777.06 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.33 To Order
Photo Part No Description Price (each) Stock
14BA004CP BRACKET - DISPLACEMENT SENSOR - FRONT - LH $29.10 To Order
14BA006CP BRACKET - DISPLACEMENT SENSOR - FRONT - RH $29.10 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $116.47 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $33.97 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.62 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $48.53 To Order
Photo Part No Description Price (each) Stock
26BA165SP WISHBONE SHROUD UPPER RH $82.49 To Order
26BA164SP WISHBONE SHROUD UPPER LH $82.49 To Order
Photo Part No Description Price (each) Stock
26BA167SP WISHBONE SHROUD LOWER RH $82.49 To Order
26BA166SP WISHBONE SHROUD LOWER LH $82.49 To Order
View All

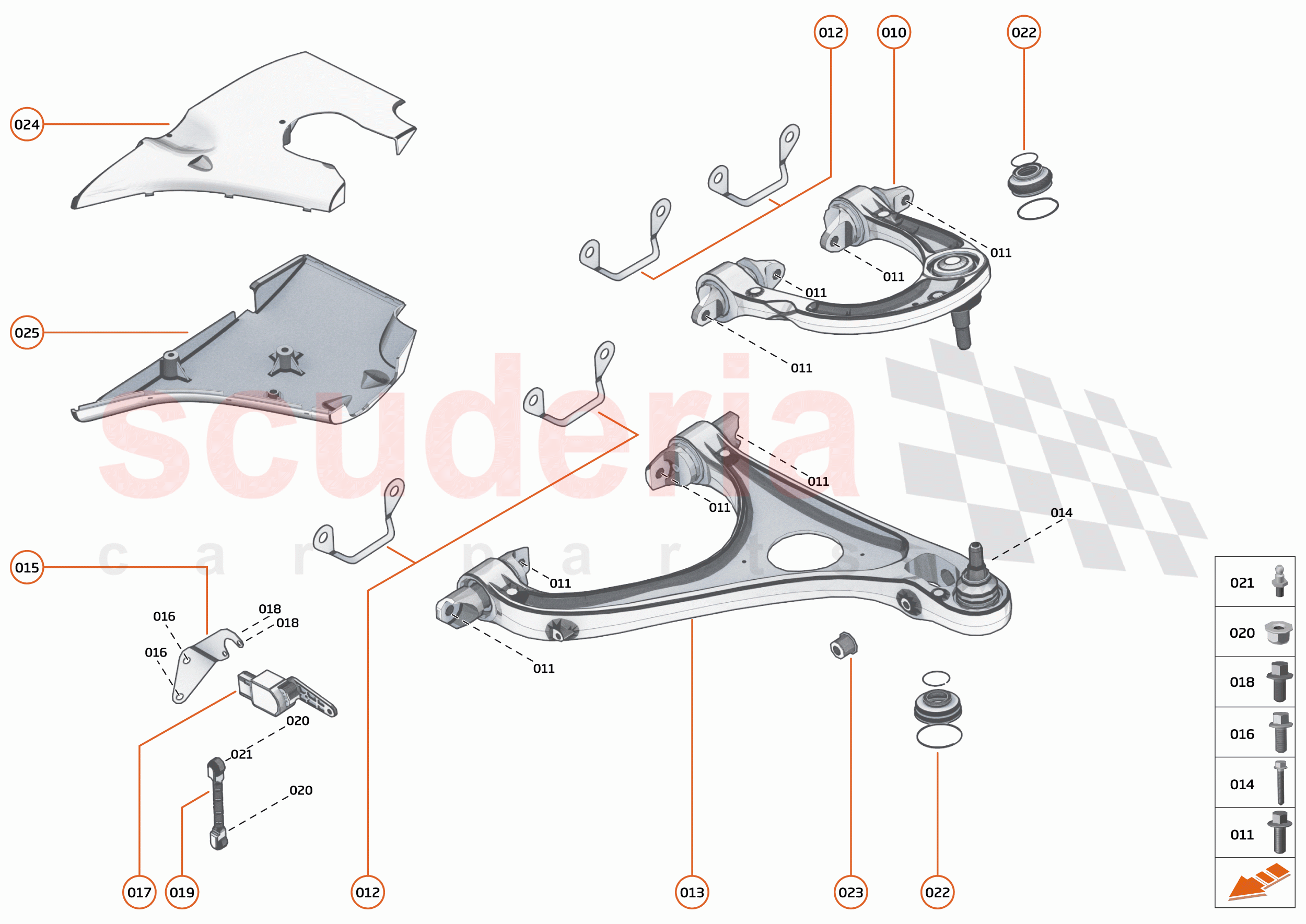

16 - SUSPENSION - 16.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 26BA141SP
ASSY-WISHBONE-UPR-FR-RH 		$813.11 1
010 26BA140SP
ASSY-WISHBONE-UPR-FR-LH 		$829.48 1
011 00RA457
SCREW - M10X30-10.9 - HEX 		- 4 Enquire
012 14BA135CP
SPACER - WISHBONE 		$24.26 1
013 14B0718CP
WISHBONE - LOWER - FRONT - RH 		$1,777.06 1
013 14B0712CP
WISHBONE - LOWER - FRONT - LH 		$1,777.06 1
014 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.33 1
015 14BA004CP
BRACKET - DISPLACEMENT SENSOR - FRONT - LH 		$29.10 1
015 14BA006CP
BRACKET - DISPLACEMENT SENSOR - FRONT - RH 		$29.10 1
016 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
017 13B0681CP
SENSOR - DISPLACEMENT 		$116.47 1
018 00RA087
SCREW - M5X10 - HEX 		- 2 Enquire
019 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$33.97 1
020 00RA055
NUT - M6 - LOCKING - HEX 		- 1 Enquire
021 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$11.62 2
022 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1 Enquire
023 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$48.53 1
024 26BA165SP
WISHBONE SHROUD UPPER RH 		$82.49 1
024 26BA164SP
WISHBONE SHROUD UPPER LH 		$82.49 1
025 26BA167SP
WISHBONE SHROUD LOWER RH 		$82.49 1
025 26BA166SP
WISHBONE SHROUD LOWER LH 		$82.49 1
026 14BA246CP
WISHBONE BUSH 		$155.31 1
027 14BA255CP
WISHBONE BUSH - 3.5MM 		$155.31 1
