12 - LIGHTS - 12.2 - REAR LIGHTS of McLaren McLaren Elva

View All

McLaren Elva - 12 - LIGHTS - 12.2 - REAR LIGHTS

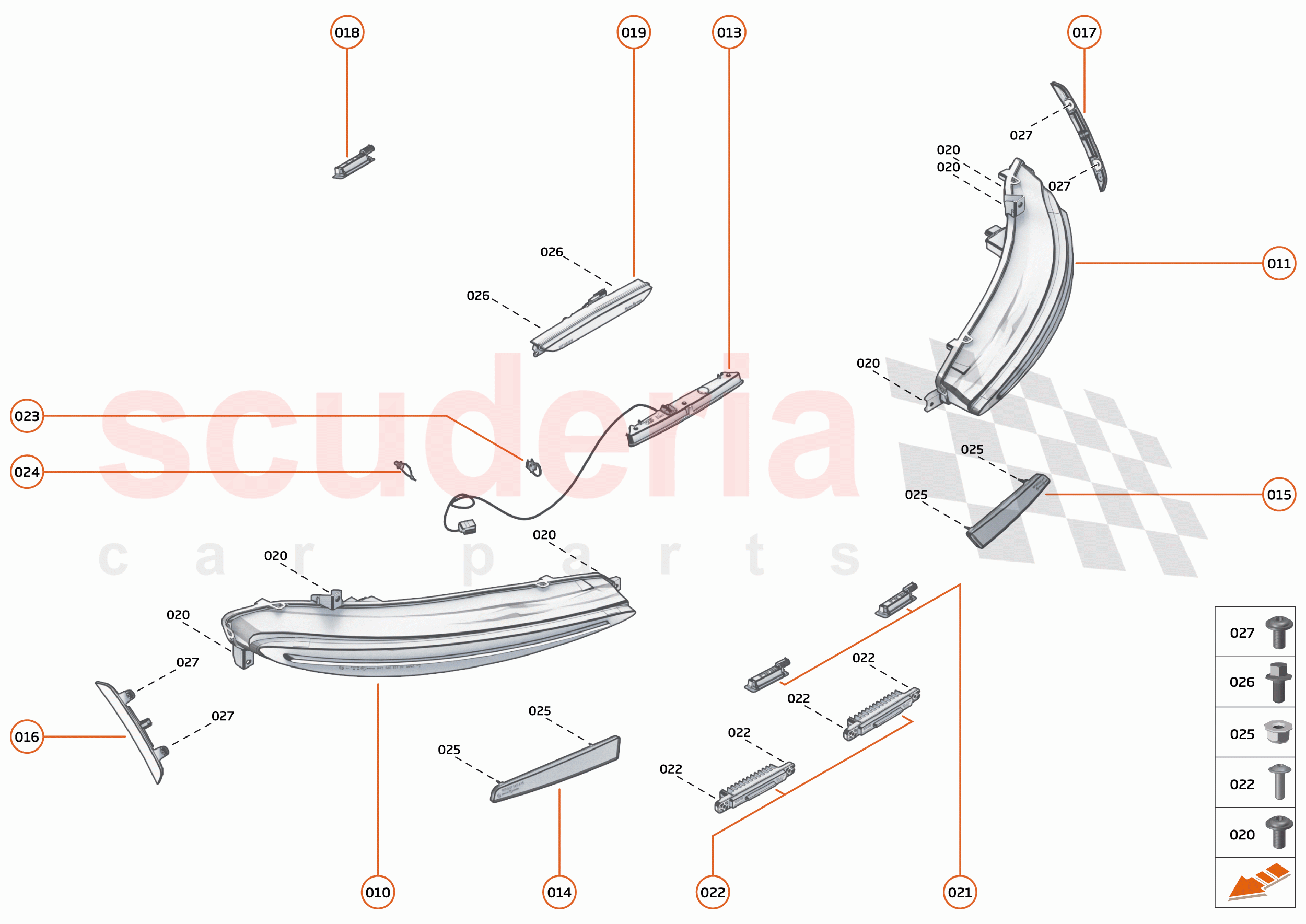

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AD684CP	ASSY LAMP REAR LH	$830.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD685CP	ASSY LAMP REAR RH	$830.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC257RB	ASSY LAMP CHMSL WING-LT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3750CP	REFLECTOR - REAR - LH	$62.38	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3751CP	REFLECTOR - REAR - RH	$62.38	To Order

Photo	Part No	Description	Price (each)	Stock
	22AB128GP	ASSY-SIDE MARKER RR-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AB129GP	ASSY-SIDE MARKER RR-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5180CP	LAMP - HIGH MOUNTED STOP	$182.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB528SP	ASSY HT LAMP ENGINE BAY	$212.54	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA601	SCREW - M6X1X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	$38.37	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA549	SCREW - BUTTON - TORX - M4X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL022	EDGE CLIP - 202X4.6MM - INLINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL042	CAB TIE-FTREE-150X4-34-NYL-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA165	BOLT - M5X8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16AD684CP	ASSY LAMP REAR LH	16AD684CP ASSY LAMP REAR LH	$830.84	1
011	16AD685CP	ASSY LAMP REAR RH	16AD685CP ASSY LAMP REAR RH	$830.84	1
012	16AC688CP	ASSY LAMP FOG REVERSE NO FLY - LEAD	16AC688CP ASSY LAMP FOG REVERSE NO FLY - LEAD	$183.55	2
013	14AC257RB	ASSY LAMP CHMSL WING-LT	14AC257RB ASSY LAMP CHMSL WING-LT	-	1	Enquire
014	13A3750CP	REFLECTOR - REAR - LH	13A3750CP REFLECTOR - REAR - LH	$62.38	1
015	13A3751CP	REFLECTOR - REAR - RH	13A3751CP REFLECTOR - REAR - RH	$62.38	1
016	22AB128GP	ASSY-SIDE MARKER RR-LH	22AB128GP ASSY-SIDE MARKER RR-LH	-	1	Enquire
017	22AB129GP	ASSY-SIDE MARKER RR-RH	22AB129GP ASSY-SIDE MARKER RR-RH	-	1	Enquire
018	13A5180CP	LAMP - HIGH MOUNTED STOP	13A5180CP LAMP - HIGH MOUNTED STOP	$182.37	1
019	14AB528SP	ASSY HT LAMP ENGINE BAY	14AB528SP ASSY HT LAMP ENGINE BAY	$212.54	1
020	00RA601	SCREW - M6X1X12	00RA601 SCREW - M6X1X12	-	6	Enquire
021	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN	$38.37	2
022	00RA549	SCREW - BUTTON - TORX - M4X16	00RA549 SCREW - BUTTON - TORX - M4X16	-	4	Enquire
023	00RL022	EDGE CLIP - 202X4.6MM - INLINE	00RL022 EDGE CLIP - 202X4.6MM - INLINE	-	1	Enquire
024	00RL042	CAB TIE-FTREE-150X4-34-NYL-BLK	00RL042 CAB TIE-FTREE-150X4-34-NYL-BLK	-	1	Enquire
025	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX	-	4	Enquire
026	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX	-	2	Enquire
027	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	-	2	Enquire
