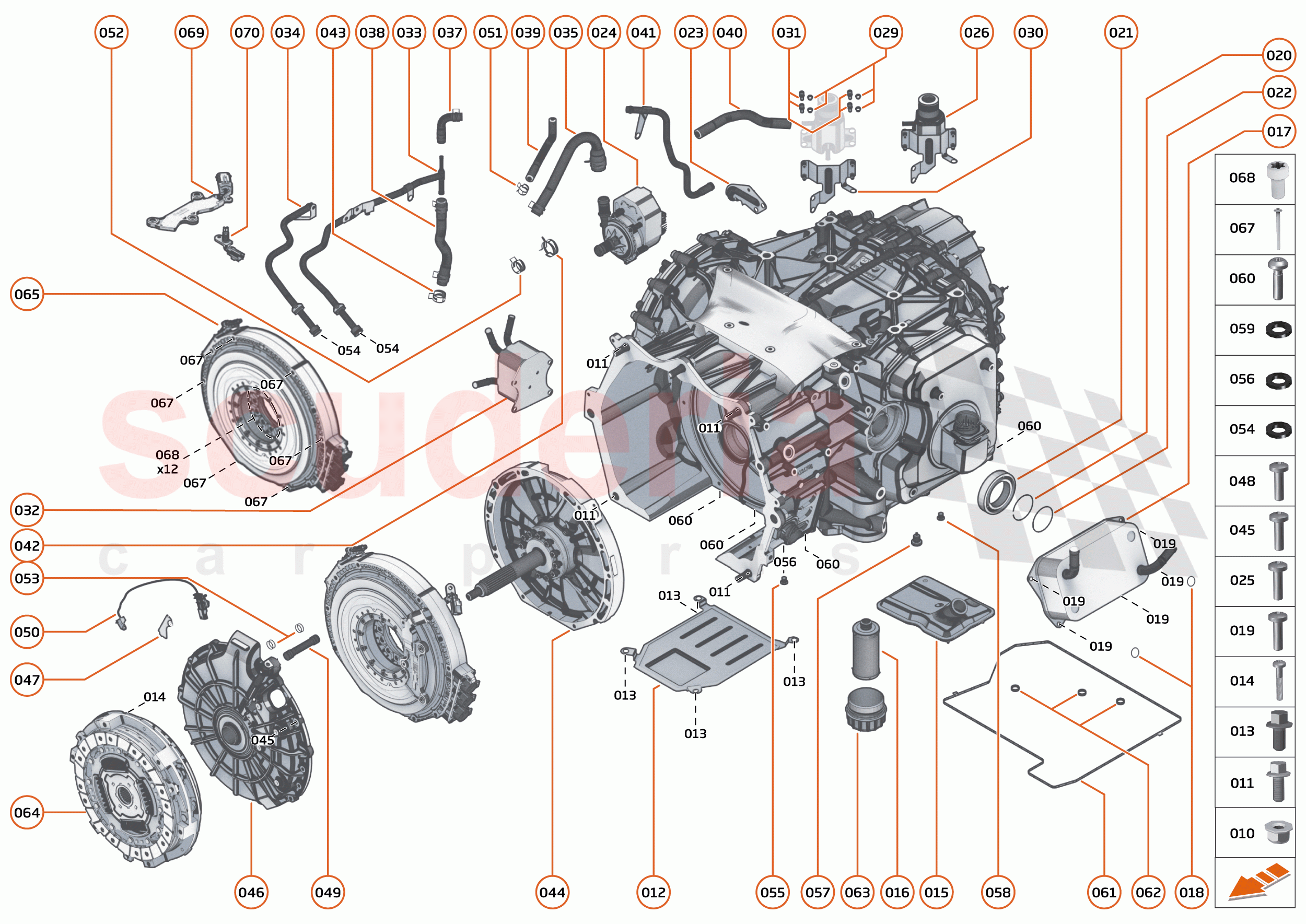

McLaren Artura - 32 - REAR AXLE - 32.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA658	NUT-HX-FL-M12X1.75-10-72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA659	BLT-HX HD-FL-M12X1.75X40-10.9 - 72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16G0035CP	K0 CLUTCH NVH COVER	$72.85	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA419CP	BOLT-HEX HD-SR FL-M8X45-10.9	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA185CP	FILTER - SUMP SUCTION	$133.75	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA184CP	FILTER - HCU	$69.04	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA252CP	DCT OIL HEAT EXCHANGER COOLER	$524.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA253CP	O-RING ISO 3601 - 14.00 X 2.00 80 FKM	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA254CP	FILLISTER HEAD SCREW ISO 14583 - M6X1X20	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA257CP	CIRCLIP 45 X 1.5 - SW45	$8.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA258CP	BALL BEARING D45XD75XB16	$38.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA259CP	RETAINING RING DIN472 79.5 X 2.5 - J75	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA261CP	Color codes: BRACKET	$20.22	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA182CP	HTM COOLING PUMP	$893.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA263CP	ISO 14583 - M6X1X16 - 8.8 - TORX	$12.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA264CP	HTM COOLING RESERVOIR ASSEMBLY	$72.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA267CP	HTM COOLING RESERVOIR COMPRESSION LIMITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA181CP	HTM COOLING RESERVOIR BRACKET	$40.20	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA269CP	ISO 14583 - M5X0.8X16 - 8.8 - TORX	$13.74	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA178CP	HTM COOLING SYSTEM HEAT EXCHANGER	$252.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA271CP	HTM COOLING PIPE - STATOR INLET	$165.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA272CP	HTM COOLING PIPE - STATOR OUTLET	$106.85	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA180CP	HTM COOLING PUMP OUTLET	$34.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA276CP	HTM COOLING SYSTEM BLEED	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA277CP	HTM COOLING - COOLER OUTLET	$15.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA278CP	HTM COOLING - RESERVOIR HOSE	$29.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA279CP	HTM COOLING - RETURN LINE	$15.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA280CP	HTM COOLING PIPE - PUMP INLET	$82.55	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA281CP	DIN 3021 - 26 X 12 - 50 CRV4	$3.67	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA282CP	DIN 3021 - 19 X 12 - 50 CRV4	$13.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA283CP	E-ENGINE HOUSING ASM	$1,947.99	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA351CP	PAN HEAD SCREW ISO14583 - M6X1.0X30	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA352CP	CONTROL PISTON ASM - DRY BULKHEAD - CONCENTRIC SLAVE CYLINDER - TRANSMISSION	$2,399.35	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA353CP	COVER PLATE	$7.18	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA354CP	PAN HEAD SCREW ISO14583-M4X0.7X10-8.8-TO	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA355CP	OIL PIPE CSC PRESSURE OIL PIPE	$63.13	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA357CP	WIRING HARNESS	$427.43	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA360CP	CLIP DIN 3012 - 14 X 12 - 51 CRV4	$13.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA361CP	CLIP DIN 3021 - 20 X 12 - 51 CRV4	$3.67	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA356CP	O-RING 100 X 2.00 80 FKM	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA273CP	ISO 3601 - 15.6 X 1.78 - 80 FKM	$7.95	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA235CP	DRAIN/FILL PLUG, M22 - M22 - 24660500401 - TRANSMISSION	$12.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA236CP	SEALING WASHER FOR M22 PLUG - M22 - 24660500500 - TRANSMISSION	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA238CP	SEALING PLUG	$48.56	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA239CP	DRAIN PLUG - M10 X 1 X 8 - STEEL 5.8 - VZ - 24660500601 - TRANSMISSION	$10.67	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA242CP	SCREW - RETAINING - FZ17772-000 - TRANSMISSION	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA243CP	OIL SUMP GASKET	$38.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA244CP	OIL SUMP SEALING RING	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA246CP	PRESSURE FILTER CAP O-RING	$11.63	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA447CP	ASSY - K0 CLUTCH_FORGED	$2,138.99	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA432CP	Color codes: EMOTOR	$5,786.73	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA643CP	E-MOTOR MOUNTING SCREWS	$10.67	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA644CP	E-MOTOR SHAFT SCREWS	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA137CP	E-MOTOR CAVITY AIR SENSOR	$252.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA138CP	E-MOTOR ROTOR POSITION SENSOR	$932.63	To Order
