41 - Interior Systems - 41.4 - Assy Tunnel Console

McLaren Artura

Find Your Part

McLaren Artura - 41 - INTERIOR SYSTEMS - 41.4 - ASSY TUNNEL CONSOLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16NB535CP TUNNEL CUPHOLDER FINGER $40.54 To Order
Photo Part No Description Price (each) Stock
16NA209SP TUNNEL - RUBBER MAT WDC Enquire To Order
16NA802CP MAT - BOX BIN $58.22 To Order
Photo Part No Description Price (each) Stock
11N0965CP ACCESSORY SOCKET - 12V $33.75 To Order
Photo Part No Description Price (each) Stock
11N0829CP ASHTRAY-ASH CUP 24 $72.80 To Order
Photo Part No Description Price (each) Stock
16NB871CP DNR CARRIER LOWER $39.76 To Order
Photo Part No Description Price (each) Stock
16NC902CP 60TH ANNIVERSARY - BRANDING PLATE $114.74 To Order
16NA945CP BRANDING PLATE P16 $82.49 To Order
Photo Part No Description Price (each) Stock
16NC829CP ASSY - HVAC SHROUD LOW-LINE LH-RHD Enquire To Order
16NC826CP ASSY - HVAC SHROUD LOW-LINE LH-LHD Enquire To Order
16NC015CP ASSY - HVAC SHROUD HIGH-LINE LH-RHD Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16NC830CP ASSY - HVAC SHROUD LOW-LINE RH-FED Enquire To Order
16NC828CP ASSY - HVAC SHROUD LOW-LINE RH-LHD Enquire To Order
16NC827CP ASSY - HVAC SHROUD LOW-LINE RH-RHD Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16NB787CP SUBASSY SUB SPEAKER GRILLE-LH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
16NB799CP SUBASSY SUB SPEAKER GRILLE-RH - FED Enquire To Order
16NB793CP SUBASSY SUB SPEAKER GRILLE-RH - RHD Enquire To Order
Photo Part No Description Price (each) Stock
16NB261CP MAT - CUP-HOLDER REAR $32.53 To Order
Photo Part No Description Price (each) Stock
16NA330CP MAT - TUNNEL STOWAGE LH $30.72 To Order
Photo Part No Description Price (each) Stock
16NA937CP MAT - TUNNEL STOWAGE RH $30.72 To Order
Photo Part No Description Price (each) Stock
16NB559CP MAT - CUP-HOLDER $33.97 To Order
Photo Part No Description Price (each) Stock
16NC805CP BRCKT-BIN SUPPORT-RR Enquire To Order
16NC035CP BRKT-BIN SUPPORT-RR SMC CF $388.30 To Order
Photo Part No Description Price (each) Stock
16NA220SP ASSY - WDC BRACKET $9.26 To Order
16NB802CP ASSY - TUNNEL BRACKET REAR - SUPPORT $148.85 To Order
Photo Part No Description Price (each) Stock
16NA316SP ASSY -TUNNEL CENTRE CONSOLE - WDC Enquire To Order
16NC721CP ASSY-TUNNEL CENTRE CONSOLE Enquire To Order
16NB541CP ASSY - TUNNEL CENTRE CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
16NC837CP ASSY - DNR COVER-CF - NON BRUSHED FINISH Enquire To Order
16NC807CP ASSY DNR COVER PLASTIC - NON BRUSHED FINISH Enquire To Order
16NB718CP ASSY - DNR COVER-CF Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16NA375CP ASSY-BRKT-TUNNEL MTG-LOWER $131.00 To Order
Photo Part No Description Price (each) Stock
16NC659CP ASSY - TUNNEL ARMREST - LOGO ALCANTARA Enquire To Order
16NC804CP ASSY - TUNNEL ARMREST - LOGO LEATHER Enquire To Order
16NC720CP ASSY-TUNNEL ARMREST Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16NC722CP ASSY-TUNNEL HINGE COVER Enquire To Order
16NA805CP ASSY - TUNNEL HINGE COVER Enquire To Order
Photo Part No Description Price (each) Stock
16NB744CP HINGE-LID-TUNNEL-UPPR $135.89 To Order
Photo Part No Description Price (each) Stock
16NB526CP ASSY TUNNEL FRONT COVER $63.08 To Order
Photo Part No Description Price (each) Stock
16NA372CP TUNNEL CUPHOLDER BAND $52.05 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA149 Torx Screw-Washer 4.2x13 Enquire To Order
Photo Part No Description Price (each) Stock
00RA608 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
View All

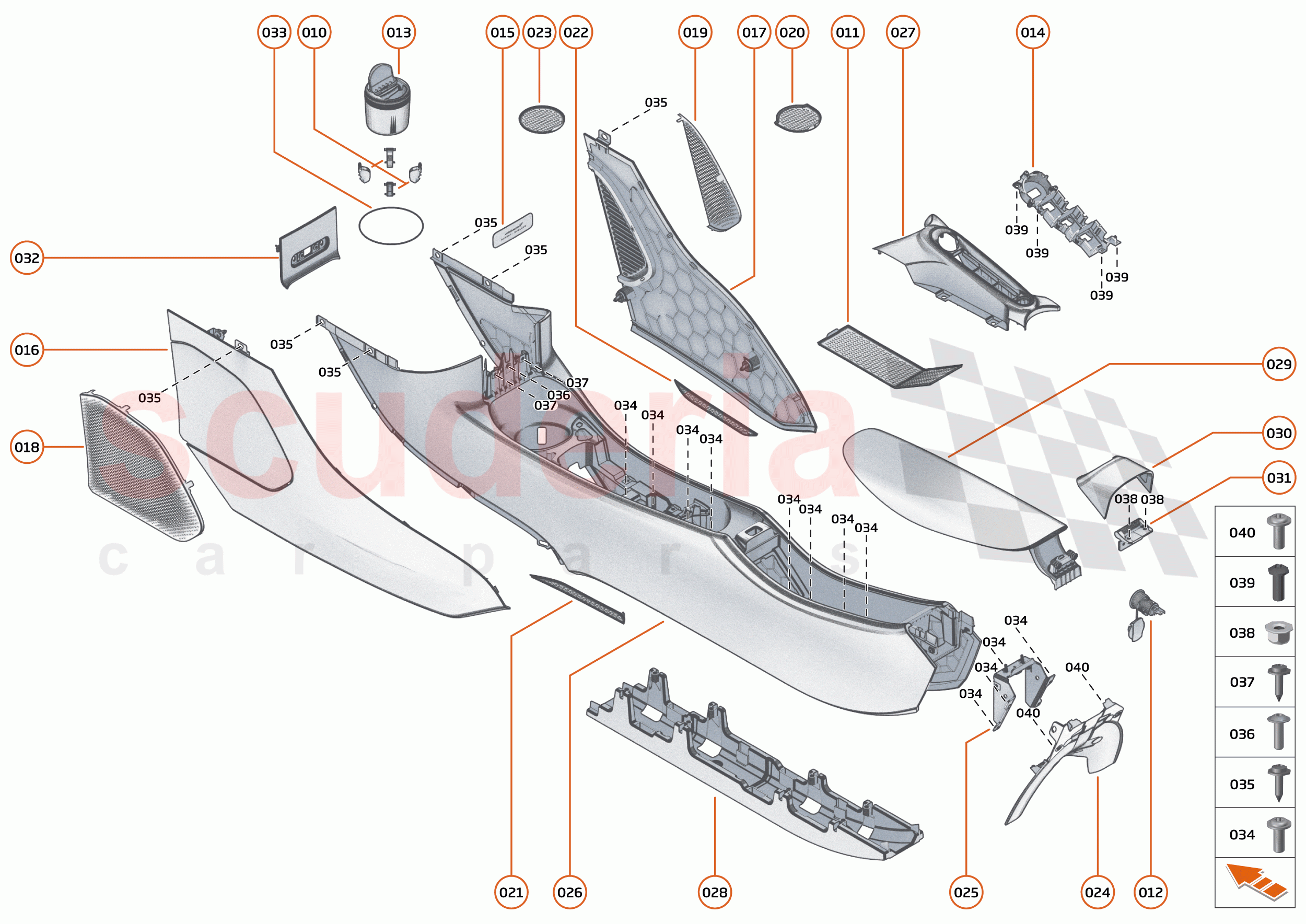

41 - INTERIOR SYSTEMS - 41.4 - ASSY TUNNEL CONSOLE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16NB535CP
TUNNEL CUPHOLDER FINGER 		$40.54 8
011 16NA209SP
TUNNEL - RUBBER MAT WDC 		- 1 Enquire
011 16NA802CP
MAT - BOX BIN 		$58.22 1
012 11N0965CP
ACCESSORY SOCKET - 12V 		$33.75 1
013 11N0829CP
ASHTRAY-ASH CUP 24 		$72.80 1
014 16NB871CP
DNR CARRIER LOWER 		$39.76 1
015 16NC902CP
60TH ANNIVERSARY - BRANDING PLATE 		$114.74 1
015 16NA945CP
BRANDING PLATE P16 		$82.49 1
016 16NC829CP
ASSY - HVAC SHROUD LOW-LINE LH-RHD 		- 1 Enquire
016 16NC826CP
ASSY - HVAC SHROUD LOW-LINE LH-LHD 		- 1 Enquire
016 16NC015CP
ASSY - HVAC SHROUD HIGH-LINE LH-RHD 		- 1 Enquire
016 16NC012CP
ASSY - HVAC SHROUD HIGH-LINE LH-LHD 		- 1 Enquire
016 16NC010CP
ASSY - HVAC SHROUD LOW-LINE LH-RHD 		- 1 Enquire
016 16NC007CP
ASSY - HVAC SHROUD LOW-LINE LH-LHD 		- 1 Enquire
017 16NC830CP
ASSY - HVAC SHROUD LOW-LINE RH-FED 		- 1 Enquire
017 16NC828CP
ASSY - HVAC SHROUD LOW-LINE RH-LHD 		- 1 Enquire
017 16NC827CP
ASSY - HVAC SHROUD LOW-LINE RH-RHD 		- 1 Enquire
017 16NC016CP
ASSY - HVAC SHROUD HIGH-LINE RH-FED 		- 1 Enquire
017 16NC014CP
ASSY - HVAC SHROUD HIGH-LINE RH-RHD 		- 1 Enquire
017 16NC013CP
ASSY - HVAC SHROUD HIGH-LINE RH-LHD 		- 1 Enquire
017 16NC011CP
ASSY - HVAC SHROUD LOW-LINE RH-FED 		- 1 Enquire
017 16NC009CP
ASSY - HVAC SHROUD LOW-LINE RH-LHD 		- 1 Enquire
017 16NC460CP
ASSY - HVAC SHROUD LOW-LINE RH-RHD 		- 1 Enquire
018 16NB787CP
SUBASSY SUB SPEAKER GRILLE-LH - LHD 		- 1 Enquire
019 16NB799CP
SUBASSY SUB SPEAKER GRILLE-RH - FED 		- 1 Enquire
019 16NB793CP
SUBASSY SUB SPEAKER GRILLE-RH - RHD 		- 1 Enquire
020 16NB261CP
MAT - CUP-HOLDER REAR 		$32.53 1
021 16NA330CP
MAT - TUNNEL STOWAGE LH 		$30.72 1
022 16NA937CP
MAT - TUNNEL STOWAGE RH 		$30.72 1
023 16NB559CP
MAT - CUP-HOLDER 		$33.97 1
024 16NC805CP
BRCKT-BIN SUPPORT-RR 		- 1 Enquire
024 16NC035CP
BRKT-BIN SUPPORT-RR SMC CF 		$388.30 1
025 16NA220SP
ASSY - WDC BRACKET 		$9.26 1
025 16NB802CP
ASSY - TUNNEL BRACKET REAR - SUPPORT 		$148.85 1
026 16NA316SP
ASSY -TUNNEL CENTRE CONSOLE - WDC 		- 1 Enquire
026 16NC721CP
ASSY-TUNNEL CENTRE CONSOLE 		- 1 Enquire
026 16NB541CP
ASSY - TUNNEL CENTRE CONSOLE 		- 1 Enquire
027 16NC837CP
ASSY - DNR COVER-CF - NON BRUSHED FINISH 		- 1 Enquire
027 16NC807CP
ASSY DNR COVER PLASTIC - NON BRUSHED FINISH 		- 1 Enquire
027 16NB718CP
ASSY - DNR COVER-CF 		- 1 Enquire
027 16NB866CP
ASSY DNR COVER PLASTIC 		- 1 Enquire
028 16NA375CP
ASSY-BRKT-TUNNEL MTG-LOWER 		$131.00 1
029 16NC659CP
ASSY - TUNNEL ARMREST - LOGO ALCANTARA 		- 1 Enquire
029 16NC804CP
ASSY - TUNNEL ARMREST - LOGO LEATHER 		- 1 Enquire
029 16NC720CP
ASSY-TUNNEL ARMREST 		- 1 Enquire
029 16NB602CP
ASSY - TUNNEL ARM REST 		- 1 Enquire
030 16NC722CP
ASSY-TUNNEL HINGE COVER 		- 1 Enquire
030 16NA805CP
ASSY - TUNNEL HINGE COVER 		- 1 Enquire
031 16NB744CP
HINGE-LID-TUNNEL-UPPR 		$135.89 1
032 16NB526CP
ASSY TUNNEL FRONT COVER 		$63.08 1
033 16NA372CP
TUNNEL CUPHOLDER BAND 		$52.05 1
034 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4 Enquire
035 00RA149
Torx Screw-Washer 4.2x13 		- 4 Enquire
036 00RA608
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 		- 1 Enquire
037 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 3 Enquire
038 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 2 Enquire
039 00RA140
SCREW - 3X8 - TORX 		- 4 Enquire
040 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 2 Enquire
041 11N2385CP
Clip - Raymond - 1.5-2.0 - 018545 		$6.57 1
042 11N2397CP
Screw - M5x16 - DIN7500 Trilobular 		$6.38 1
