40 - Infotainment - 40.3 - Sound System - High

McLaren Artura

Find Your Part

McLaren Artura - 40 - INFOTAINMENT - 40.3 - SOUND SYSTEM - HIGH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16MA465CP 100MM TRANSDUCER-HIGH $163.20 To Order
Photo Part No Description Price (each) Stock
14MA003CP TWEETER - 25MM - HIGH LINE $143.08 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16M0183CP ENCLOSURE DOOR LH-TRANSDUCER $244.70 To Order
16MB706CP ENCLOSURE DOOR LH-TRANSDUCER Enquire To Order
Photo Part No Description Price (each) Stock
16M0184CP ENCLOSURE DOOR RH-TRANSDUCER $201.36 To Order
16MB704CP ENCLOSURE DOOR RH-TRANSDUCER Enquire To Order
Photo Part No Description Price (each) Stock
16MA468CP AUDIO AMPLIFIER-HL $2,765.28 To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC063 Washer - M5x20x1 Enquire To Order
Photo Part No Description Price (each) Stock
13M1024CP SPEAKER - 200MM - HIGH-LINE $362.50 To Order
Photo Part No Description Price (each) Stock
16MA843CP ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER $183.52 To Order
Photo Part No Description Price (each) Stock
16MA844CP ASSY ENCLOSURE SUBWOOFER RH - TRANSDUCER $183.52 To Order
Photo Part No Description Price (each) Stock
16MA847CP PANEL BULKHEAD-SUBWOOFER-HL $99.25 To Order
Photo Part No Description Price (each) Stock
16MA752CP BRKT SUBWOOFER UPR $38.08 To Order
Photo Part No Description Price (each) Stock
16MA658CP BRKT SUBWOOFER LWR $118.57 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
View All

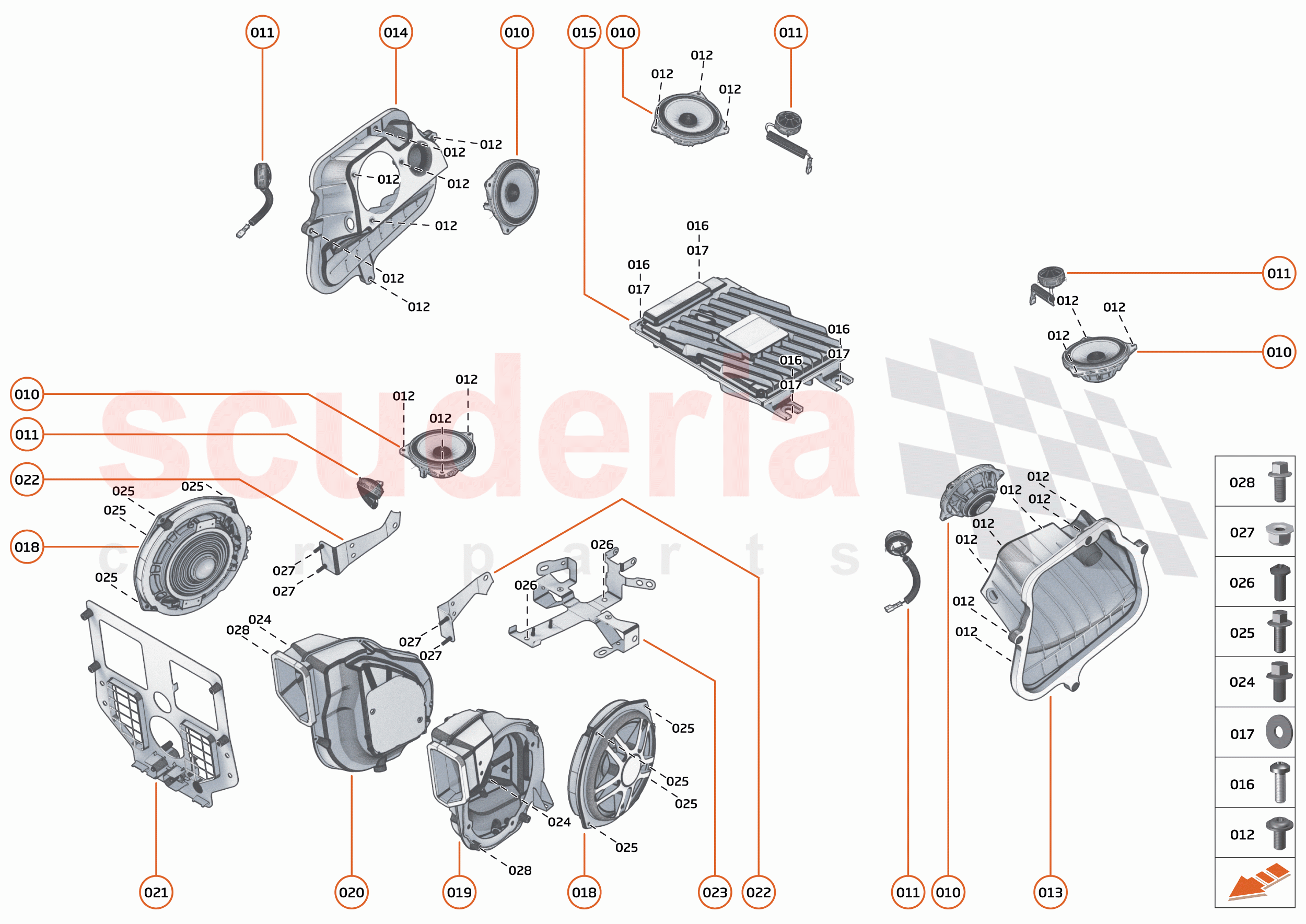

40 - INFOTAINMENT - 40.3 - SOUND SYSTEM - HIGH of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16MA465CP
100MM TRANSDUCER-HIGH 		$163.20 5
011 14MA003CP
TWEETER - 25MM - HIGH LINE 		$143.08 5
012 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 23 Enquire
013 16M0183CP
ENCLOSURE DOOR LH-TRANSDUCER 		$244.70 1
013 16MB706CP
ENCLOSURE DOOR LH-TRANSDUCER 		- 1 Enquire
014 16M0184CP
ENCLOSURE DOOR RH-TRANSDUCER 		$201.36 1
014 16MB704CP
ENCLOSURE DOOR RH-TRANSDUCER 		- 1 Enquire
015 16MA468CP
AUDIO AMPLIFIER-HL 		$2,765.28 1
016 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 4 Enquire
017 00RC063
Washer - M5x20x1 		- 4 Enquire
018 13M1024CP
SPEAKER - 200MM - HIGH-LINE 		$362.50 2
019 16MA843CP
ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER 		$183.52 1
020 16MA844CP
ASSY ENCLOSURE SUBWOOFER RH - TRANSDUCER 		$183.52 1
021 16MA847CP
PANEL BULKHEAD-SUBWOOFER-HL 		$99.25 1
022 16MA752CP
BRKT SUBWOOFER UPR 		$38.08 2
023 16MA658CP
BRKT SUBWOOFER LWR 		$118.57 1
024 00RA165
BOLT - M5X8 - HEX 		- 6 Enquire
025 00RX001
BOLT - M5X16 - HEX 		- 8 Enquire
026 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 2 Enquire
027 00RA055
NUT - M6 - LOCKING - HEX 		- 4 Enquire
028 00RA064
BOLT - M5X12 - HEX 		- 2 Enquire
029 00RL048
CAB TIE-ADHESIVE MOUNT-28X4.7-NYL-BLK 		- 1 Enquire
030 00RL010
CABLE TIE - SF175-50X 		- 1 Enquire
031 00RL004
FELT TAPE 		- 1 Enquire
032 16MB284CP
SPEAKER FOAM DOOR-HL 		$164.88 -
033 16MA123SP
BRKT RR QTR LH-TRANSDUCER 		$40.32 1
034 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
035 16MA124SP
BRKT RR QTR RH-TRANSDUCER 		- 1 Enquire
