McLaren Artura - 16 - DUCTS VENTS AND FLOORS - 16.3 - REAR DUCTS AND VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AD482CP DUCT- HTR OUTLET LH $277.38 To Order
16AF872CP DUCT- HTR OUTLET LH $311.23 To Order
Photo Part No Description Price (each) Stock
16AD483CP DUCT- HTR OUTLET RH Enquire To Order
16AF873CP DUCT- HTR OUTLET RH $311.23 To Order
Photo Part No Description Price (each) Stock
16AE314CP ASSY - DUCT- BUTTRESS INLET - LH $272.32 To Order
16AE528CP OUTRIGGER DUCT LH $113.02 To Order
Photo Part No Description Price (each) Stock
16AE311CP ASSY - DUCT- BUTTRESS INLET - RH $136.15 To Order
16AD330CP OUTRIGGER DUCT RH $84.65 To Order
Photo Part No Description Price (each) Stock
16AC976CP SEAL - CABIN AIR EVAC $37.62 To Order
16AB431SP ASSY REAR FENDER DUCT - SPIDER LH Enquire To Order
Photo Part No Description Price (each) Stock
16AD266CP ASSY CABIN AIR EVAC BULKHEAD - FRAME LH $63.20 To Order
16AB432SP ASSY REAR FENDER DUCT - SPIDER RH Enquire To Order
Photo Part No Description Price (each) Stock
16AD267CP ASSY CABIN AIR EVAC BULKHEAD - FRAME RH $63.20 To Order
16AA226SP ASSY CABIN AIR EVAC HOUSING SPIDER $86.76 To Order
Photo Part No Description Price (each) Stock
16AD329CP OUTRIGGER DUCT LH Enquire To Order
16AE674CP HOSE - REAR CAMERA COOLING $63.20 To Order
Photo Part No Description Price (each) Stock
16AD330CP OUTRIGGER DUCT RH $84.65 To Order
16AE430CP WHEEL ARCH LINER BRKT RR LH $97.24 To Order
Photo Part No Description Price (each) Stock
16AE019CP ASSY CABIN AIR EVAC BULKHEAD - DUCT $466.85 To Order
16AE431CP WHEEL ARCH LINER BRKT RR RH $43.75 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
16AB124SP ASSY DUCT DIFFUSER PRE COOLER - SPIDER LH $628.63 To Order
Photo Part No Description Price (each) Stock
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
16AB126SP ASSY DUCT DIFFUSER PRE COOLER - SPIDER RH $641.91 To Order
Photo Part No Description Price (each) Stock
00RB104 Spire Clip - M6 - Raymond - 203909 Enquire To Order
16AB407SP ASSY CLAM DUCT OUTLET SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
16AB339SP CLAM DUCT HOSE - REAR DECK SPIDER $145.89 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA149 Torx Screw-Washer 4.2x13 Enquire To Order
00RB104 Spire Clip - M6 - Raymond - 203909 Enquire To Order
Photo Part No Description Price (each) Stock
16AE401CP ASSY - DUCT - DIFFUSER - PRE COOLER LH $563.74 To Order
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16AA824CP ASSY - DUCT - DIFFUSER PRECOOLER RH $168.35 To Order
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
16AE430CP WHEEL ARCH LINER BRKT RR LH $97.24 To Order
00RC053 WASHER - M6X2.0MM Enquire To Order
Photo Part No Description Price (each) Stock
16AE431CP WHEEL ARCH LINER BRKT RR RH $43.75 To Order
00RA149 Torx Screw-Washer 4.2x13 Enquire To Order
Photo Part No Description Price (each) Stock
00RA605 SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 Enquire To Order
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
00RC063 Washer - M5x20x1 Enquire To Order
View All

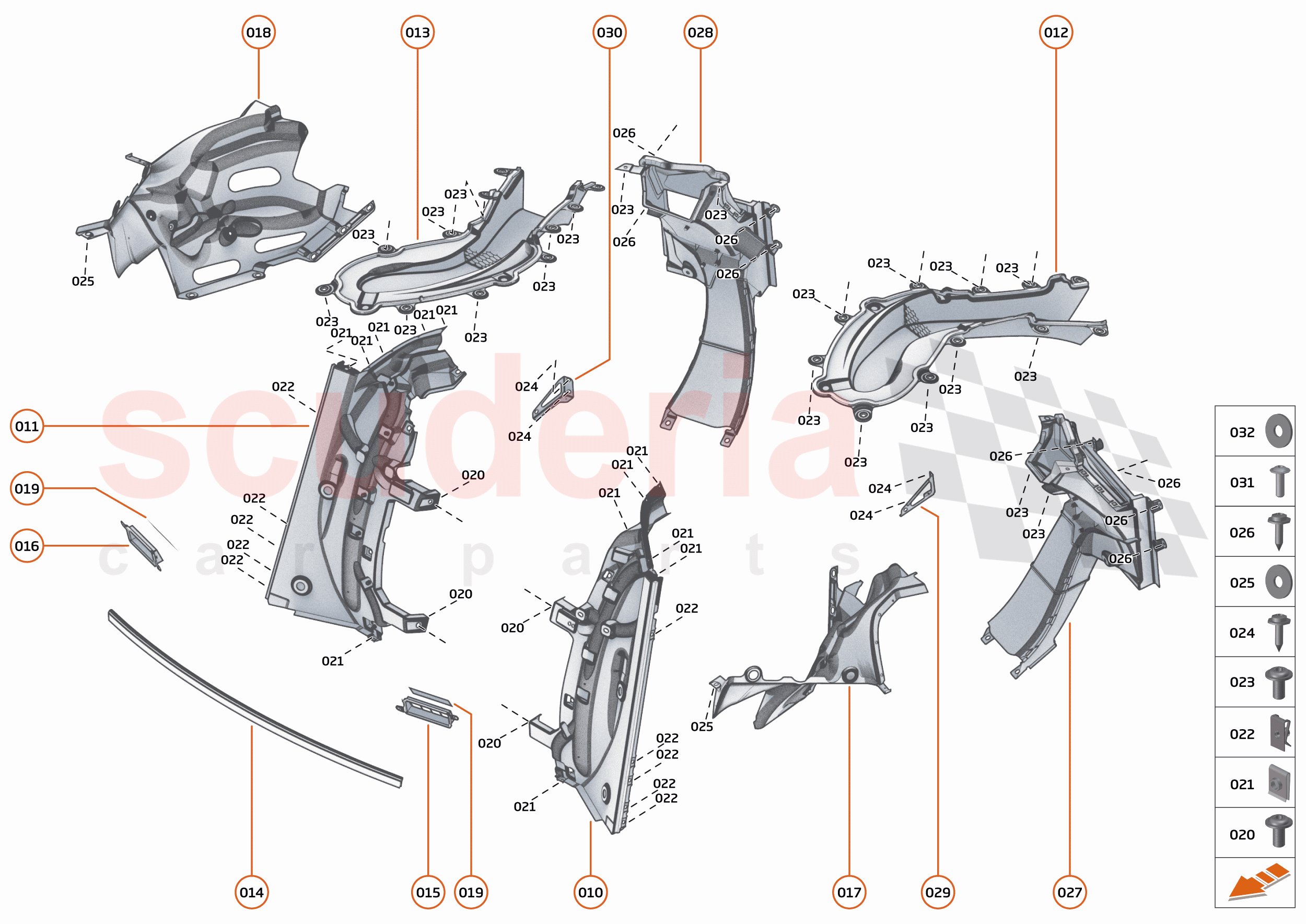

16 - DUCTS VENTS AND FLOORS - 16.3 - REAR DUCTS AND VENTS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RC064
WASHER - M6X18X1.6 - BLACK 		- 6 Enquire
000 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 		- 6 Enquire
010 16AD482CP
DUCT- HTR OUTLET LH 		$277.38 1
010 16AF872CP
DUCT- HTR OUTLET LH 		$311.23 1
011 16AD483CP
DUCT- HTR OUTLET RH 		- 1 Enquire
011 16AF873CP
DUCT- HTR OUTLET RH 		$311.23 1
012 16AE314CP
ASSY - DUCT- BUTTRESS INLET - LH 		$272.32 1
012 16AE528CP
OUTRIGGER DUCT LH 		$113.02 1
013 16AE311CP
ASSY - DUCT- BUTTRESS INLET - RH 		$136.15 1
013 16AD330CP
OUTRIGGER DUCT RH 		$84.65 1
014 16AC976CP
SEAL - CABIN AIR EVAC 		$37.62 1
014 16AB431SP
ASSY REAR FENDER DUCT - SPIDER LH 		- 1 Enquire
015 16AD266CP
ASSY CABIN AIR EVAC BULKHEAD - FRAME LH 		$63.20 1
015 16AB432SP
ASSY REAR FENDER DUCT - SPIDER RH 		- 1 Enquire
016 16AD267CP
ASSY CABIN AIR EVAC BULKHEAD - FRAME RH 		$63.20 1
016 16AA226SP
ASSY CABIN AIR EVAC HOUSING SPIDER 		$86.76 2
017 16AD329CP
OUTRIGGER DUCT LH 		- 1 Enquire
017 16AE674CP
HOSE - REAR CAMERA COOLING 		$63.20 1
018 16AD330CP
OUTRIGGER DUCT RH 		$84.65 1
018 16AE430CP
WHEEL ARCH LINER BRKT RR LH 		$97.24 1
019 16AE019CP
ASSY CABIN AIR EVAC BULKHEAD - DUCT 		$466.85 1
019 16AE431CP
WHEEL ARCH LINER BRKT RR RH 		$43.75 1
020 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 4 Enquire
020 16AB124SP
ASSY DUCT DIFFUSER PRE COOLER - SPIDER LH 		$628.63 1
021 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM 		- 12 Enquire
021 16AB126SP
ASSY DUCT DIFFUSER PRE COOLER - SPIDER RH 		$641.91 1
022 00RB104
Spire Clip - M6 - Raymond - 203909 		- 10 Enquire
022 16AB407SP
ASSY CLAM DUCT OUTLET SPIDER 		- 1 Enquire
023 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 22 Enquire
023 16AB339SP
CLAM DUCT HOSE - REAR DECK SPIDER 		$145.89 1
024 00RA112
TORX SCREW-WASHER 4.2X16 		- 4 Enquire
024 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- - Enquire
025 00RC053
WASHER - M6X2.0MM 		- 2 Enquire
025 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM 		- - Enquire
026 00RA149
Torx Screw-Washer 4.2x13 		- 8 Enquire
026 00RB104
Spire Clip - M6 - Raymond - 203909 		- - Enquire
027 16AE401CP
ASSY - DUCT - DIFFUSER - PRE COOLER LH 		$563.74 1
027 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- - Enquire
028 16AA824CP
ASSY - DUCT - DIFFUSER PRECOOLER RH 		$168.35 1
028 00RA112
TORX SCREW-WASHER 4.2X16 		- - Enquire
029 16AE430CP
WHEEL ARCH LINER BRKT RR LH 		$97.24 1
029 00RC053
WASHER - M6X2.0MM 		- 1 Enquire
030 16AE431CP
WHEEL ARCH LINER BRKT RR RH 		$43.75 1
030 00RA149
Torx Screw-Washer 4.2x13 		- - Enquire
031 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 		- 6 Enquire
031 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- - Enquire
032 00RC064
WASHER - M6X18X1.6 - BLACK 		- 6 Enquire
032 00RC063
Washer - M5x20x1 		- - Enquire
033 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 1 Enquire
034 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 1 Enquire
035 00RB282
CLMP-SPRINGBAND-55X12-STL-BLK 		- 2 Enquire
