35 - Engine - 35.7 - Breather Assembly And Fuel Purge

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 35 - ENGINE - 35.7 - BREATHER ASSEMBLY AND FUEL PURGE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0831CP CCV BREATHER - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
11F2060CP SEAL - O-RING - 16-2.5 FKM $11.55 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.59 To Order
Photo Part No Description Price (each) Stock
14F0643CP CLAMP - STEPLESS EAR - 31.5 DIA $33.75 To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB139 STEPLESS EAR CLAMP - 34.6-706DR Enquire To Order
Photo Part No Description Price (each) Stock
11F1856CP OETIKER CLIP - 15.3-18.5 $9.23 To Order
Photo Part No Description Price (each) Stock
11F2030CP BRACKET - CAM COVER - LH - CCV - VAC $26.66 To Order
Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.41 To Order
Photo Part No Description Price (each) Stock
14FA307CP BRACKET - CAM COVER - RH - CCV - VAC Enquire To Order
14F0647CP BRACKET - CAM COVER - RH - CCV - VAC Enquire To Order
Photo Part No Description Price (each) Stock
11F1933CP CLIP - RAYMOND - 014434 $4.59 To Order
Photo Part No Description Price (each) Stock
11F2029CP CLIP - RAYMOND - 2WAY - 13493 $7.65 To Order
Photo Part No Description Price (each) Stock
11F1681CP BRACKET - PCV - INC CLIPS $28.91 To Order
Photo Part No Description Price (each) Stock
12F0710CP CLIP - ONE WAY - RAYMOND $24.10 To Order
Photo Part No Description Price (each) Stock
14F0088CP BRACKET CLIP - M8 $23.94 To Order
Photo Part No Description Price (each) Stock
14F0589CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE $231.45 To Order
Photo Part No Description Price (each) Stock
11FA028CP CLIP - RAYMOND - 132068 Enquire To Order
14F0398CP CLIP - RAYMOND - 18900 - 12MM $11.76 To Order
View All

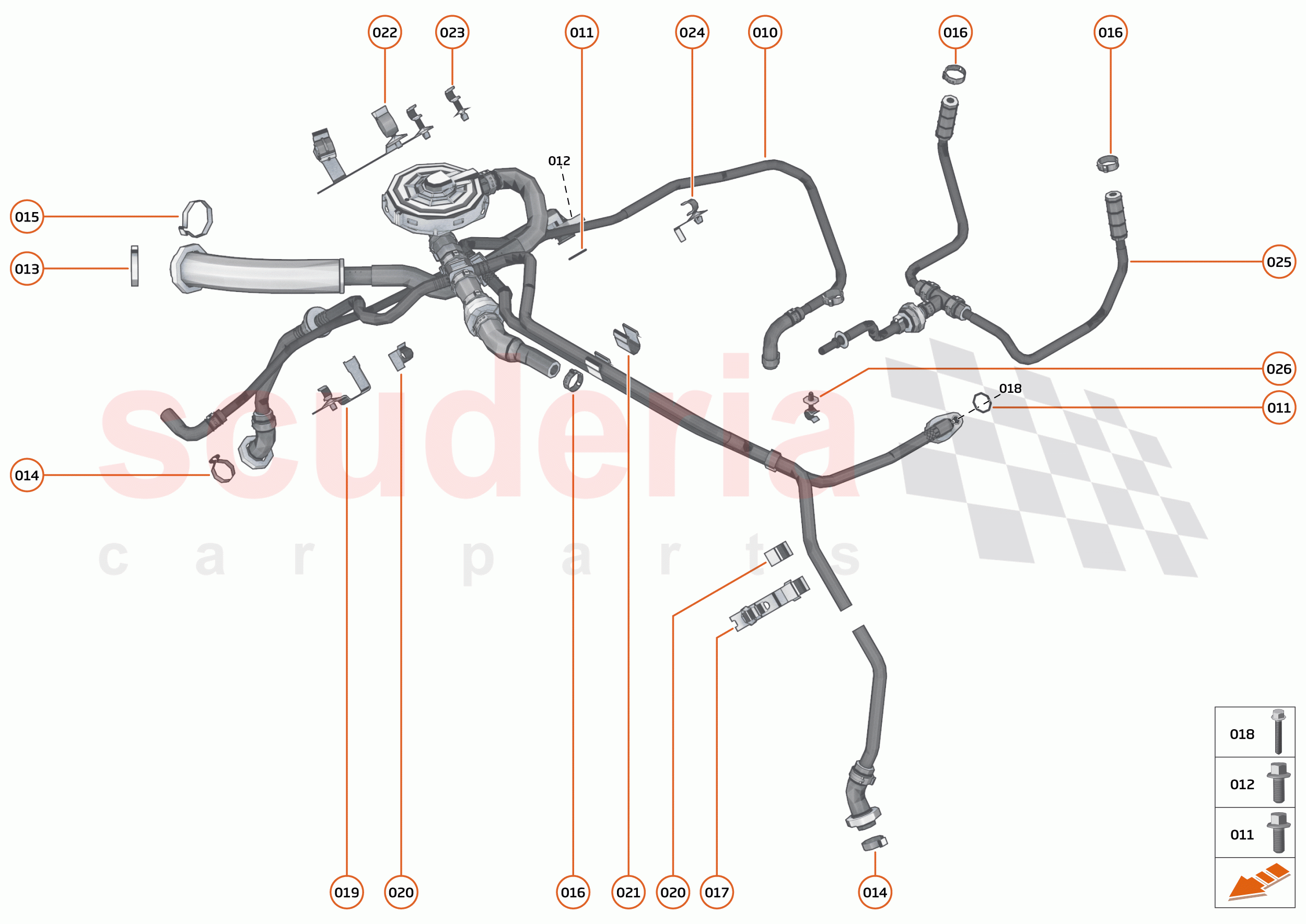

35 - ENGINE - 35.7 - BREATHER ASSEMBLY AND FUEL PURGE of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0831CP
CCV BREATHER - ENGINE 		- 1 Enquire
011 11F2060CP
SEAL - O-RING - 16-2.5 FKM 		$11.55 2
012 11F1793CP
BOLT - M6X20 - HEX 		$10.59 2
013 14F0643CP
CLAMP - STEPLESS EAR - 31.5 DIA 		$33.75 1
014 00RB094
OETIKER CLIP - 21.0 		- 2 Enquire
015 00RB139
STEPLESS EAR CLAMP - 34.6-706DR 		- 1 Enquire
016 11F1856CP
OETIKER CLIP - 15.3-18.5 		$9.23 3
017 11F2030CP
BRACKET - CAM COVER - LH - CCV - VAC 		$26.66 1
018 11F1777CP
BOLT - M6X40 - HEX 		$4.41 2
019 14FA307CP
BRACKET - CAM COVER - RH - CCV - VAC 		- 1 Enquire
019 14F0647CP
BRACKET - CAM COVER - RH - CCV - VAC 		- 1 Enquire
020 11F1933CP
CLIP - RAYMOND - 014434 		$4.59 1
021 11F2029CP
CLIP - RAYMOND - 2WAY - 13493 		$7.65 1
022 11F1681CP
BRACKET - PCV - INC CLIPS 		$28.91 1
023 12F0710CP
CLIP - ONE WAY - RAYMOND 		$24.10 1
024 14F0088CP
BRACKET CLIP - M8 		$23.94 1
025 14F0589CP
FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE 		$231.45 1
026 11FA028CP
CLIP - RAYMOND - 132068 		- 1 Enquire
026 14F0398CP
CLIP - RAYMOND - 18900 - 12MM 		$11.76 1
