49 - Interior Systems - 49.1 - Assy Facia - Components & Hardware

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 49 - INTERIOR SYSTEMS - 49.1 - ASSY FACIA - COMPONENTS & HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14NA444SP ARMATURE END CAP EXTENSION SP - LH $9.28 To Order
14N0004CP END CAP - FACIA - LH Enquire To Order
Photo Part No Description Price (each) Stock
14NA445SP ARMATURE END CAP EXTENSION SP - RH $9.28 To Order
14N0007CP END CAP - FACIA - RH Enquire To Order
Photo Part No Description Price (each) Stock
11N2388CP Clip - Raymond - 020410 $6.34 To Order
Photo Part No Description Price (each) Stock
14N1225CP SPEAKER GRILLE - HIGH LINE - CENTRE Enquire To Order
14N0015CP ASSY MESH SPEAKER GRILLE CTR $1,341.55 To Order
Photo Part No Description Price (each) Stock
14N1541CP CLOSURE PANEL - FACIA - LH - RHD $427.97 To Order
14N1539CP CLOSURE PANEL - FACIA - LH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
14N1544CP CLOSURE PANEL - FACIA - RH - LHD - FEDERAL Enquire To Order
14N1542CP CLOSURE PANEL - FACIA - RH - RHD $268.64 To Order
14N1540CP CLOSURE PANEL - FACIA - RH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11N1873SP FIR TREE - TRIM $2.87 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14N1560CP LAMP - FOOTWELL - LH $52.69 To Order
Photo Part No Description Price (each) Stock
14N1561CP LAMP - FOOTWELL - RH $52.69 To Order
Photo Part No Description Price (each) Stock
14N0781CP ASSY ORNAMENT MLDNG DRIVER LH-RHD Enquire To Order
14N0068CP ASSY ORNAMENT MLDNG DRIVER RH-LHD Enquire To Order
Photo Part No Description Price (each) Stock
14N0812CP BEZEL - FRONT CLUSTER Enquire To Order
Photo Part No Description Price (each) Stock
14NA602CP BEZEL - RACE CLUSTER - CARBON Enquire To Order
14NA409CP BEZEL - RACE CLUSTER $227.49 To Order
Photo Part No Description Price (each) Stock
14NA015CP ASSY CLUSTER COVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA614 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
11N2436CP Screw - Wurth - ST4.2x16 - 0113 342 16 $5.77 To Order
Photo Part No Description Price (each) Stock
00RA098 Screw - M5x16 - Button Enquire To Order
Photo Part No Description Price (each) Stock
14N1254CP BRACKET - TFT $1,004.30 To Order
Photo Part No Description Price (each) Stock
14NC066CP FIXED FACE LEVEL VENT-RHD $728.27 To Order
14NA938CP VENT - CENTRE - FACIA - LHD Enquire To Order
Photo Part No Description Price (each) Stock
14NA703CP FACE VENT - FACIA Enquire To Order
Photo Part No Description Price (each) Stock
11M2477CP BRACKET - OBD SOCKET MOUNTING $105.39 To Order
Photo Part No Description Price (each) Stock
11N2399CP Screw - Wurth - M5x12 - 0273 5 12 $7.51 To Order
Photo Part No Description Price (each) Stock
13MA049CP MOUNTING - BODY CONTROL UNIT - FACIA $35.66 To Order
Photo Part No Description Price (each) Stock
14N1784CP VENT - WINDSCREEN DEMIST $187.54 To Order
Photo Part No Description Price (each) Stock
14MA448CP WIRING HARNESS - FACIA - ELECTRIC COLUMN - FEDERAL Enquire To Order
14MA447CP WIRING HARNESS - FACIA - MANUAL COLUMN - FEDERAL Enquire To Order
14MA446CP WIRING HARNESS - FACIA - ELECTRIC COLUMN - RHD $909.45 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14M1009CP HARNESS - FACIA SWITCH PACK $439.18 To Order
Photo Part No Description Price (each) Stock
11N1083CP BRACKET - KNEEBOLSTER - REST OF WORLD $62.67 To Order
Photo Part No Description Price (each) Stock
14N0785CP ORNAMENT WING - FACIA - OUTER - RHD - LH Enquire To Order
14N0064CP ORNAMENT WING - FACIA - OUTER - LHD - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A2619CP SENSOR - CABIN TEMPERATURE $125.36 To Order
View All

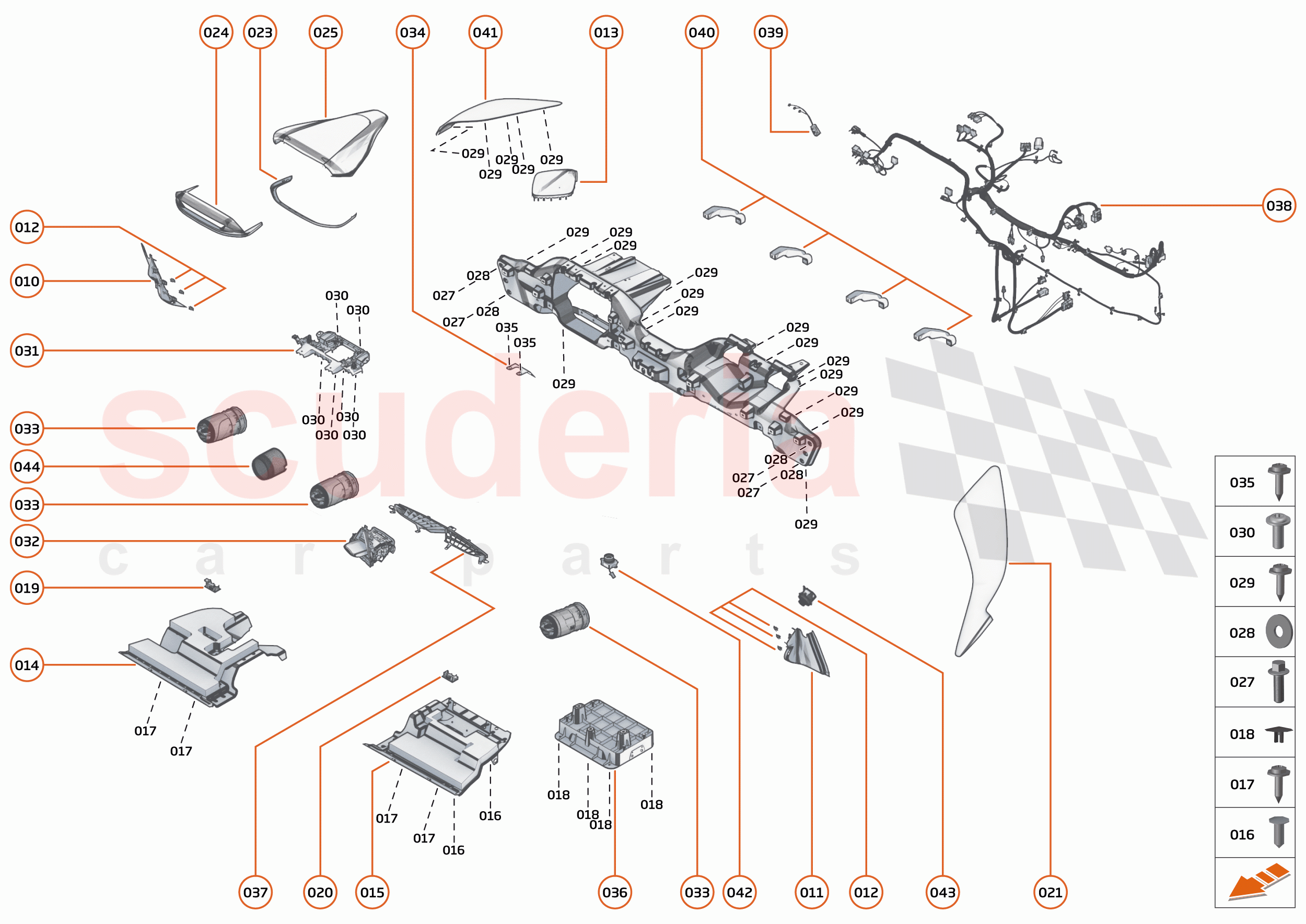

49 - INTERIOR SYSTEMS - 49.1 - ASSY FACIA - COMPONENTS & HARDWARE of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14NA444SP
ARMATURE END CAP EXTENSION SP - LH 		$9.28 1
010 14N0004CP
END CAP - FACIA - LH 		- 1 Enquire
011 14NA445SP
ARMATURE END CAP EXTENSION SP - RH 		$9.28 1
011 14N0007CP
END CAP - FACIA - RH 		- 1 Enquire
012 11N2388CP
Clip - Raymond - 020410 		$6.34 2
013 14N1225CP
SPEAKER GRILLE - HIGH LINE - CENTRE 		- 1 Enquire
013 14N0015CP
ASSY MESH SPEAKER GRILLE CTR 		$1,341.55 1
014 14N1541CP
CLOSURE PANEL - FACIA - LH - RHD 		$427.97 1
014 14N1539CP
CLOSURE PANEL - FACIA - LH - LHD 		- 1 Enquire
015 14N1544CP
CLOSURE PANEL - FACIA - RH - LHD - FEDERAL 		- 1 Enquire
015 14N1542CP
CLOSURE PANEL - FACIA - RH - RHD 		$268.64 1
015 14N1540CP
CLOSURE PANEL - FACIA - RH - LHD 		- 1 Enquire
016 11N1873SP
FIR TREE - TRIM 		$2.87 1
017 00RA112
TORX SCREW-WASHER 4.2X16 		- 1 Enquire
018 00RM005
ANIXTER RIVET - BLACK 		- 1 Enquire
019 14N1560CP
LAMP - FOOTWELL - LH 		$52.69 1
020 14N1561CP
LAMP - FOOTWELL - RH 		$52.69 4
021 14N0781CP
ASSY ORNAMENT MLDNG DRIVER LH-RHD 		- 1 Enquire
021 14N0068CP
ASSY ORNAMENT MLDNG DRIVER RH-LHD 		- 1 Enquire
022 00RA615
SCREW - TORX - 3.5X12 		- 1 Enquire
023 14N0812CP
BEZEL - FRONT CLUSTER 		- 3 Enquire
024 14NA602CP
BEZEL - RACE CLUSTER - CARBON 		- 1 Enquire
024 14NA409CP
BEZEL - RACE CLUSTER 		$227.49 1
025 14NA015CP
ASSY CLUSTER COVER 		- 1 Enquire
026 14N0772CP
CROSS CAR BEAM - FACIA - FEDERAL 		- 1 Enquire
026 14N0755CP
CROSS CAR BEAM - FACIA - RHD 		$1,056.27 1
026 14N0021CP
CROSS CAR BEAM - FACIA - LHD 		- 1 Enquire
027 00RA614
BOLT - M8X1.25 - HEX 		- 1 Enquire
028 00RC015
WASHER - M8X24X2 		- 1 Enquire
029 11N2436CP
Screw - Wurth - ST4.2x16 - 0113 342 16 		$5.77 1
030 00RA098
Screw - M5x16 - Button 		- 1 Enquire
031 14N1254CP
BRACKET - TFT 		$1,004.30 1
032 14NC066CP
FIXED FACE LEVEL VENT-RHD 		$728.27 1
032 14NA938CP
VENT - CENTRE - FACIA - LHD 		- 1 Enquire
033 14NA703CP
FACE VENT - FACIA 		- 1 Enquire
034 11M2477CP
BRACKET - OBD SOCKET MOUNTING 		$105.39 1
035 11N2399CP
Screw - Wurth - M5x12 - 0273 5 12 		$7.51 1
036 13MA049CP
MOUNTING - BODY CONTROL UNIT - FACIA
BCU HOLDER; 		$35.66 1
037 14N1784CP
VENT - WINDSCREEN DEMIST 		$187.54 1
038 14MA448CP
WIRING HARNESS - FACIA - ELECTRIC COLUMN - FEDERAL 		- 1 Enquire
038 14MA447CP
WIRING HARNESS - FACIA - MANUAL COLUMN - FEDERAL 		- 2 Enquire
038 14MA446CP
WIRING HARNESS - FACIA - ELECTRIC COLUMN - RHD 		$909.45 4
038 14MA445CP
WIRING HARNESS - FACIA - MANUAL COLUMN - RHD 		$848.73 1
038 14MA444CP
WIRING HARNESS - FACIA - ELECTRIC COLUMN - LHD 		- 1 Enquire
038 14MA443CP
WIRING HARNESS - FACIA - MANUAL COLUMN - LHD 		- 1 Enquire
039 14M1009CP
HARNESS - FACIA SWITCH PACK 		$439.18 1
040 11N1083CP
BRACKET - KNEEBOLSTER - REST OF WORLD 		$62.67 1
041 14N0785CP
ORNAMENT WING - FACIA - OUTER - RHD - LH 		- 1 Enquire
041 14N0064CP
ORNAMENT WING - FACIA - OUTER - LHD - LH 		- 1 Enquire
042 13A2619CP
SENSOR - CABIN TEMPERATURE 		$125.36 1
