34 - Engine - 34.5 - Front Cover, Timing Gear & Crankshaft Damper

McLaren 765LT

Find Your Part

McLaren 765LT - 34 - ENGINE - 34.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14F0851CP FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL $405.07 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $9.64 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.24 To Order
Photo Part No Description Price (each) Stock
11F2344CP SEAL - ENGINE CRANK - REAR $106.08 To Order
Photo Part No Description Price (each) Stock
11F1387CP FRONT CRANK SEAL Enquire To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.59 To Order
Photo Part No Description Price (each) Stock
14FA039RP PISTON ASSY $385.78 To Order
View All

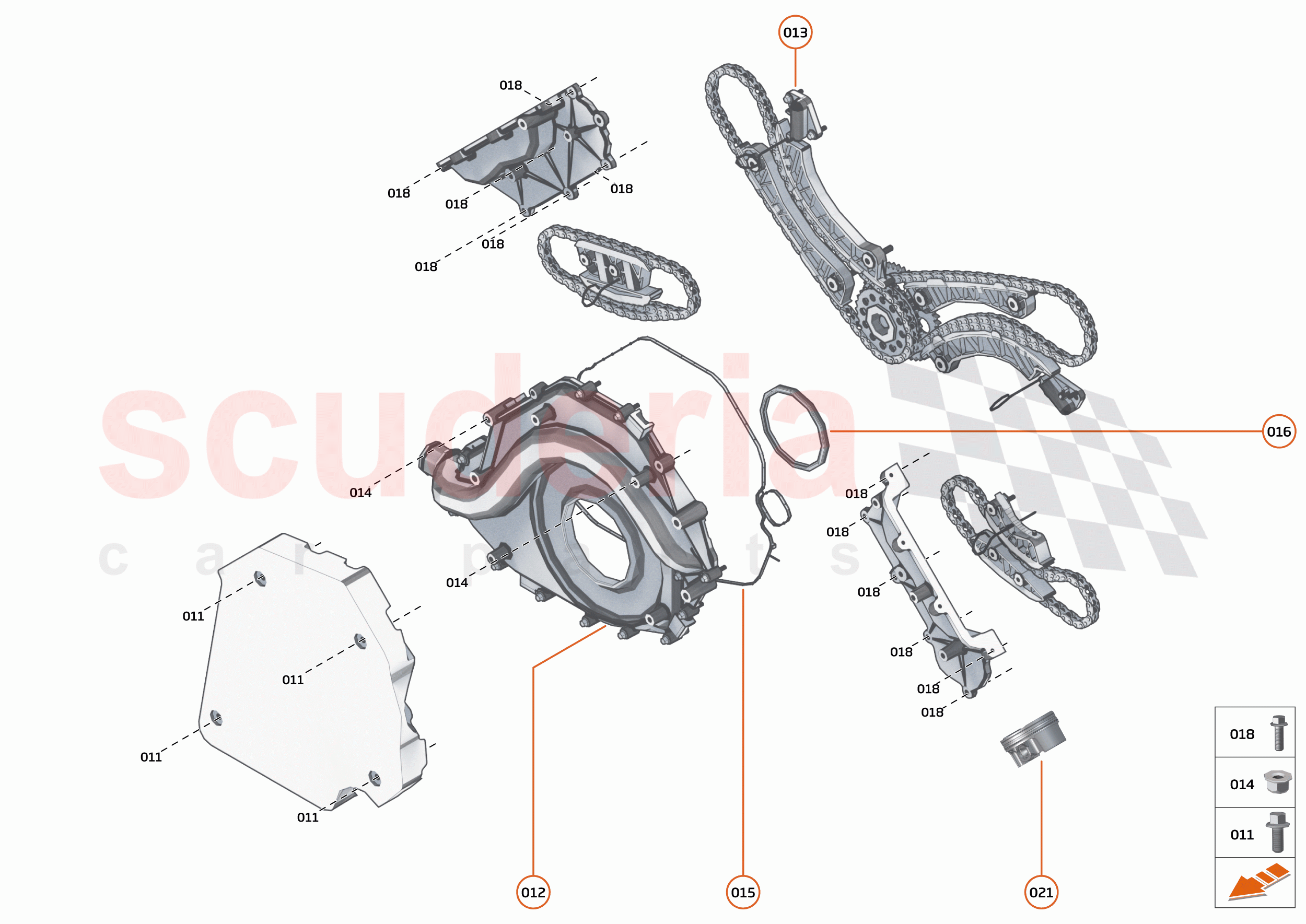

34 - ENGINE - 34.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 00RA120
SCREW - M6X25 - HEX 		- 4 Enquire
012 14F0851CP
FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL 		$405.07 1
013 11F1776CP
BOLT - M6X30 - HEX 		$9.64 2
014 11F1904CP
NUT - M6
NUT - M6; 		$4.24 2
015 11F2344CP
SEAL - ENGINE CRANK - REAR 		$106.08 1
016 11F1387CP
FRONT CRANK SEAL 		- 1 Enquire
018 11F1793CP
BOLT - M6X20 - HEX 		$10.59 12
021 14FA039RP
PISTON ASSY 		$385.78 8
