28 - Fuel Tank - 28.1 - Fuel Tank

McLaren 765LT

Find Your Part

McLaren 765LT - 28 - FUEL TANK - 28.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15KA006CP ASSY - FUEL TANK - COMPLETE - ROW Enquire To Order
14KA037CP ASSY - FUEL TANK - COMPLETE - CHINA Enquire To Order
14KA035CP ASSY - FUEL TANK - COMPLETE - ROW Enquire To Order
Photo Part No Description Price (each) Stock
14KA056CP CONTROLLER - FUEL PUMP $325.39 To Order
14KA056CP CONTROLLER - FUEL PUMP $325.39 To Order
14KA056CP CONTROLLER - FUEL PUMP $325.39 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14KA064CP PIPE - BREATHER - MOULDED - CANISTER $48.15 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
15KA035CP JET PUMP HOSE - FUEL TANK $191.39 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED $76.55 To Order
Photo Part No Description Price (each) Stock
15MA102CP HARNESS - FUEL CELL - FUEL TANK $191.39 To Order
Photo Part No Description Price (each) Stock
14K0053CP FILTER - CHARCOAL $770.59 To Order
Photo Part No Description Price (each) Stock
14K0123CP BRACKET - CANISTER SUPPORT $17.31 To Order
Photo Part No Description Price (each) Stock
14K0140CP PAD - FUEL TANK - CANISTER $11.47 To Order
Photo Part No Description Price (each) Stock
14K0118CP HOSE - FUEL FEED $105.95 To Order
Photo Part No Description Price (each) Stock
14KA092CP HOSE BREATHER - TANK TO CANISTER Enquire To Order
Photo Part No Description Price (each) Stock
14K0054CP PIPE - PURGE - FUEL TANK $105.95 To Order
Photo Part No Description Price (each) Stock
15KA004CP FLANGE - FUEL TANK $115.57 To Order
14K0079CP FLANGE - FUEL TANK $81.85 To Order
Photo Part No Description Price (each) Stock
12K0258CP SEAL - RETAINING RING - FUEL PUMP $67.41 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $33.49 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $62.20 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $12.42 To Order
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $10.51 To Order
Photo Part No Description Price (each) Stock
14KA120CP ASSY - TWIN FUEL PUMP $1,541.23 To Order
14KA113CP ASSY - FUEL PUMP $650.79 To Order
Photo Part No Description Price (each) Stock
14KA086CP CHARCOAL CANISTER - LEV III Enquire To Order
View All

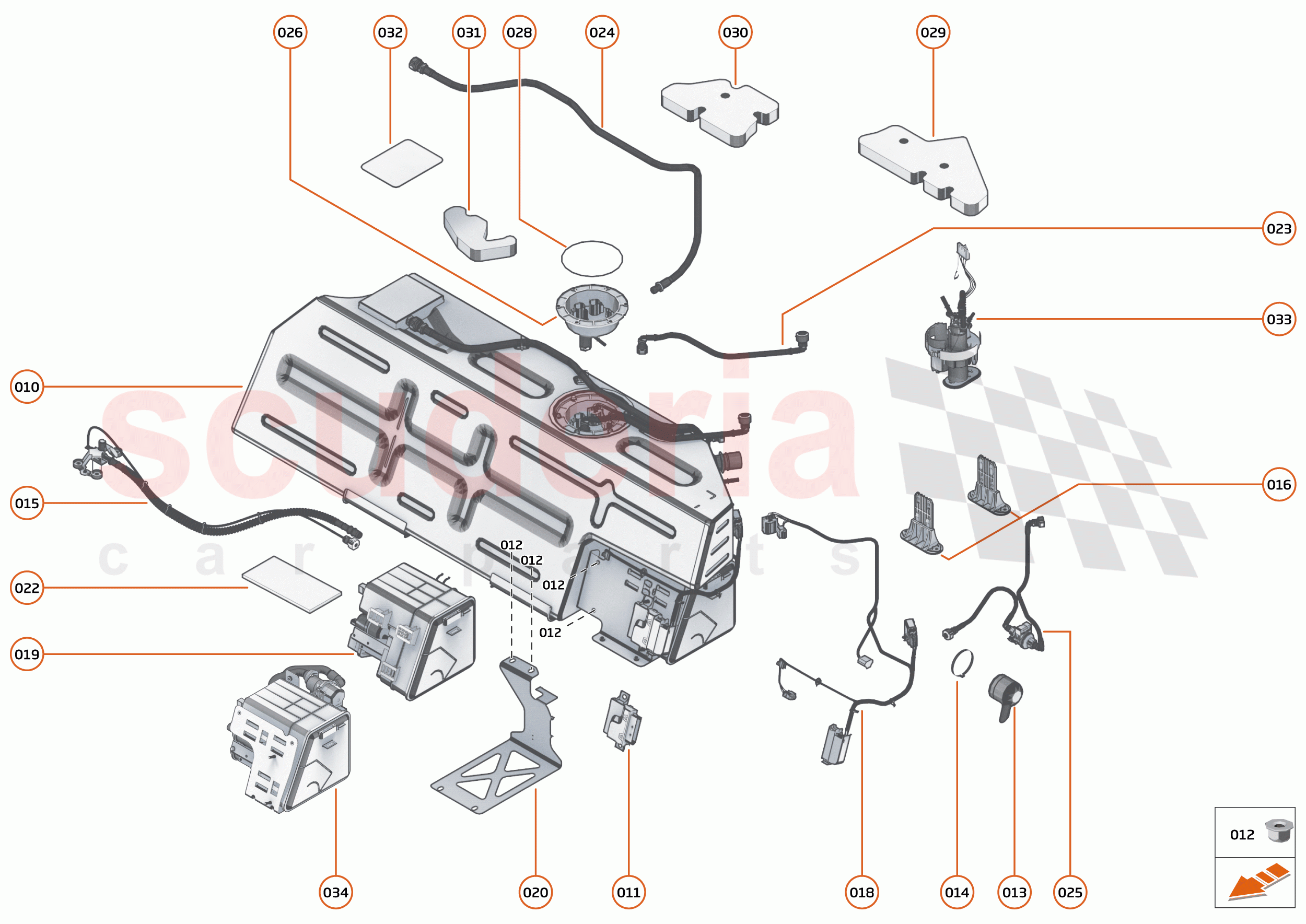

28 - FUEL TANK - 28.1 - FUEL TANK of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15KA006CP
ASSY - FUEL TANK - COMPLETE - ROW 		- 1 Enquire
010 14KA037CP
ASSY - FUEL TANK - COMPLETE - CHINA 		- 1 Enquire
010 14KA035CP
ASSY - FUEL TANK - COMPLETE - ROW 		- 1 Enquire
011 14KA056CP
CONTROLLER - FUEL PUMP 		$325.39 1
011 14KA056CP
CONTROLLER - FUEL PUMP 		$325.39 1
011 14KA056CP
CONTROLLER - FUEL PUMP 		$325.39 1
012 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
013 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER 		$48.15 1
014 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1 Enquire
015 15KA035CP
JET PUMP HOSE - FUEL TANK 		$191.39 1
016 14K0087CP
PUMP MOUNT - MOULDED 		$76.55 2
018 15MA102CP
HARNESS - FUEL CELL - FUEL TANK 		$191.39 1
019 14K0053CP
FILTER - CHARCOAL 		$770.59 1
020 14K0123CP
BRACKET - CANISTER SUPPORT 		$17.31 1
022 14K0140CP
PAD - FUEL TANK - CANISTER 		$11.47 1
023 14K0118CP
HOSE - FUEL FEED 		$105.95 1
024 14KA092CP
HOSE BREATHER - TANK TO CANISTER 		- 1 Enquire
025 14K0054CP
PIPE - PURGE - FUEL TANK 		$105.95 1
026 15KA004CP
FLANGE - FUEL TANK 		$115.57 1
026 14K0079CP
FLANGE - FUEL TANK 		$81.85 1
028 12K0258CP
SEAL - RETAINING RING - FUEL PUMP 		$67.41 1
029 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$33.49 1
030 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$62.20 1
031 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$12.42 1
032 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$10.51 1
033 14KA120CP
ASSY - TWIN FUEL PUMP 		$1,541.23 1
033 14KA113CP
ASSY - FUEL PUMP
FUEL PUMP; 		$650.79 1
034 14KA086CP
CHARCOAL CANISTER - LEV III 		- 1 Enquire
035 00RL004
FELT TAPE
FELT TAPE; 		- 1 Enquire
