6 - Panels - 6.1 - Front Panels

McLaren 765LT

Find Your Part

McLaren 765LT - 6 - PANELS - 6.1 - FRONT PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
14A0507CP BRACKET - FRONT FENDER - SUPPORT - LH $28.87 To Order
Photo Part No Description Price (each) Stock
14AD471CP BRKT FRT FNDR SUPPORT RH $28.87 To Order
Photo Part No Description Price (each) Stock
14AD183CP ASSY FNDR FRT LH $2,048.15 To Order
Photo Part No Description Price (each) Stock
14AD187CP ASSY FNDR FRT RH $2,048.15 To Order
Photo Part No Description Price (each) Stock
14A2604CP BRKT FRT FNDR RR INR LH $38.26 To Order
Photo Part No Description Price (each) Stock
14A2608CP BRKT FRT FNDR RR INR RH $38.26 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14A0496CP BRACKET - FRONT FENDER - OUTRIGGER - REAR LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB888CP ASSY-SP FRT FNDR MTG RR RH $105.95 To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
14AC292CP ASSY BRKT FRT FENDER RR OTR RH $43.05 To Order
Photo Part No Description Price (each) Stock
14AC291CP ASSY BRKT FRT FENDER RR OTR LH $43.05 To Order
Photo Part No Description Price (each) Stock
14AA558CP ASSY BRKT FNDR REINF LONGI LH $48.15 To Order
Photo Part No Description Price (each) Stock
28AB124CP BRKT FNDR LTR LH $38.51 To Order
Photo Part No Description Price (each) Stock
28AB126CP BRKT FNDR LTR RH $38.51 To Order
Photo Part No Description Price (each) Stock
14AB584CP ASSY PNL FNDR FRT BAFFLE $11.53 To Order
14A1831CP BAFFLE - FENDER - FRONT $13.38 To Order
Photo Part No Description Price (each) Stock
14AB653CP ASSY SP - FRT FNDR MTG FRT LH $38.51 To Order
Photo Part No Description Price (each) Stock
14AB656CP ASSY SP - FRT FNDR MTG FRT RH $38.51 To Order
Photo Part No Description Price (each) Stock
14A3481CP BRACKET - FRONT FENDER - FRONT LH Enquire To Order
Photo Part No Description Price (each) Stock
14A3485CP BRACKET - FRONT FENDER - FRONT RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
14AC312CP ASSY OUTRIGGER FRT LH $306.26 To Order
14AC312CP ASSY OUTRIGGER FRT LH $306.26 To Order
Photo Part No Description Price (each) Stock
14AC313CP ASSY OUTRIGGER FRT RH $306.26 To Order
14AC313CP ASSY OUTRIGGER FRT RH $306.26 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA414 Multi Thread U Nuts - LB-4M-A Enquire To Order
Photo Part No Description Price (each) Stock
14AB172MP ASSY FENDER FRONT RH - MSO VENTED Enquire To Order
Photo Part No Description Price (each) Stock
14AB173MP ASSY FENDER FRONT LH - MSO VENTED Enquire To Order
Photo Part No Description Price (each) Stock
14AB740RP FRONT FNDR VANE FR RH- CF Enquire To Order
Photo Part No Description Price (each) Stock
14AB742RP FRONT FNDR VANE RR RH- CF Enquire To Order
Photo Part No Description Price (each) Stock
14AB719RP FRONT FNDR VANE FR LH- CF Enquire To Order
Photo Part No Description Price (each) Stock
14AB721RP FRONT FNDR VANE RR LH-MSO CF Enquire To Order
Photo Part No Description Price (each) Stock
14AC136RP LOUVRED FENDER RETROFIT KIT COUPE $19,204.30 To Order
View All

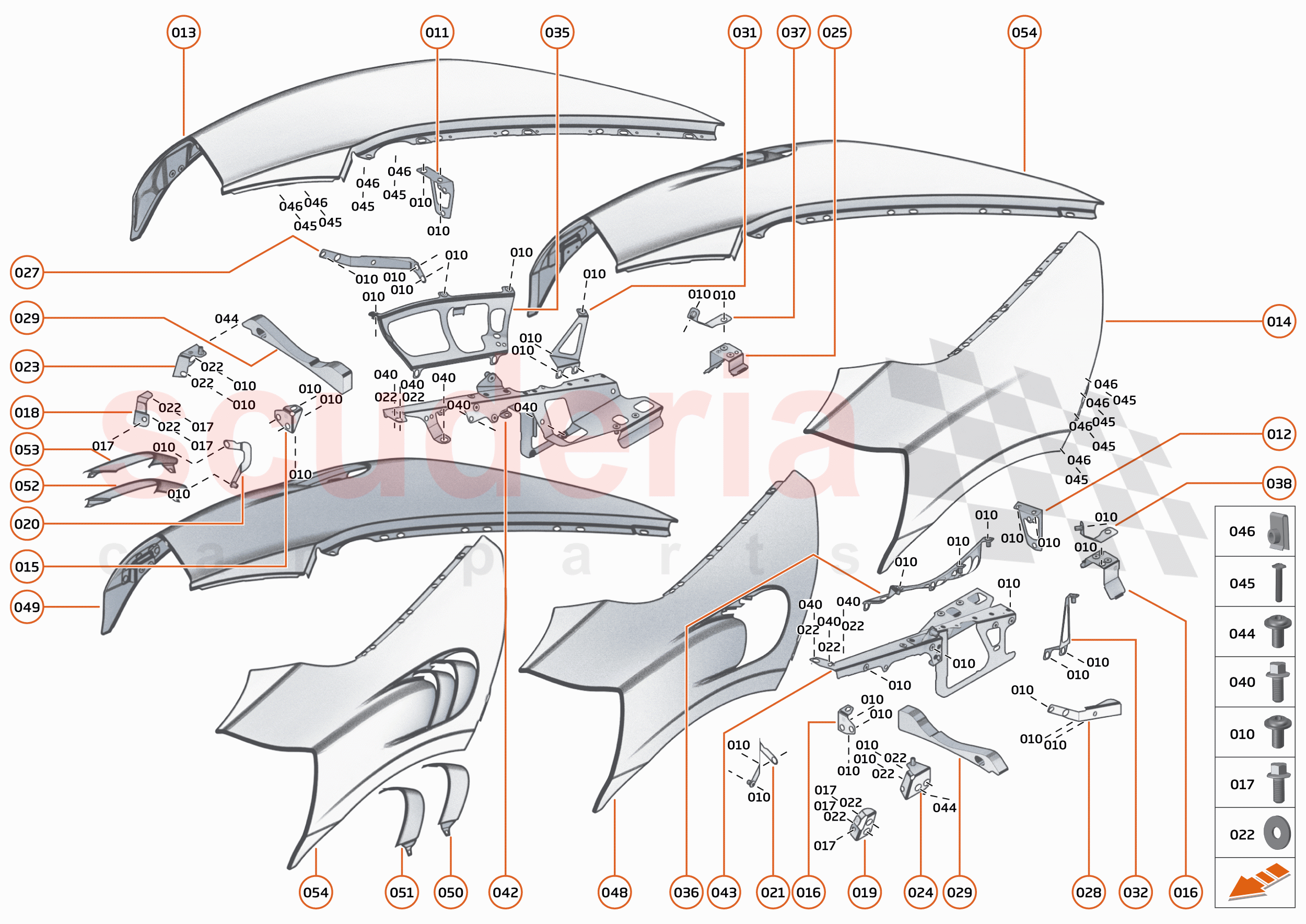

6 - PANELS - 6.1 - FRONT PANELS of McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 2 Enquire
011 14A0507CP
BRACKET - FRONT FENDER - SUPPORT - LH 		$28.87 1
012 14AD471CP
BRKT FRT FNDR SUPPORT RH 		$28.87 1
013 14AD183CP
ASSY FNDR FRT LH 		$2,048.15 1
014 14AD187CP
ASSY FNDR FRT RH 		$2,048.15 1
015 14A2604CP
BRKT FRT FNDR RR INR LH 		$38.26 1
016 14A2608CP
BRKT FRT FNDR RR INR RH 		$38.26 1
017 00RX003
BOLT - M6X1X12 - HEX 		- 3 Enquire
018 14A0496CP
BRACKET - FRONT FENDER - OUTRIGGER - REAR LH 		- 1 Enquire
019 14AB888CP
ASSY-SP FRT FNDR MTG RR RH 		$105.95 1
022 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 2 Enquire
022 00RC013
WASHER - M6X18X1.6 		- 2 Enquire
023 14AC292CP
ASSY BRKT FRT FENDER RR OTR RH 		$43.05 1
024 14AC291CP
ASSY BRKT FRT FENDER RR OTR LH 		$43.05 1
025 14AA558CP
ASSY BRKT FNDR REINF LONGI LH 		$48.15 1
026 14AA562CP
ASSY BRKT FNDR REINF LONGI RH 		$48.15 1
027 28AB124CP
BRKT FNDR LTR LH 		$38.51 1
028 28AB126CP
BRKT FNDR LTR RH 		$38.51 1
029 14AB584CP
ASSY PNL FNDR FRT BAFFLE 		$11.53 1
029 14A1831CP
BAFFLE - FENDER - FRONT 		$13.38 1
031 14AB653CP
ASSY SP - FRT FNDR MTG FRT LH 		$38.51 1
032 14AB656CP
ASSY SP - FRT FNDR MTG FRT RH 		$38.51 1
037 14A3481CP
BRACKET - FRONT FENDER - FRONT LH 		- 1 Enquire
038 14A3485CP
BRACKET - FRONT FENDER - FRONT RH 		- 1 Enquire
040 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
042 14AC312CP
ASSY OUTRIGGER FRT LH 		$306.26 1
042 14AC312CP
ASSY OUTRIGGER FRT LH 		$306.26 1
043 14AC313CP
ASSY OUTRIGGER FRT RH 		$306.26 1
043 14AC313CP
ASSY OUTRIGGER FRT RH 		$306.26 1
044 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2 Enquire
045 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 8 Enquire
046 00RA414
Multi Thread U Nuts - LB-4M-A 		- 8 Enquire
048 14AB172MP
ASSY FENDER FRONT RH - MSO VENTED 		- 1 Enquire
049 14AB173MP
ASSY FENDER FRONT LH - MSO VENTED 		- 1 Enquire
050 14AB740RP
FRONT FNDR VANE FR RH- CF 		- 1 Enquire
051 14AB742RP
FRONT FNDR VANE RR RH- CF 		- 1 Enquire
052 14AB719RP
FRONT FNDR VANE FR LH- CF 		- 1 Enquire
053 14AB721RP
FRONT FNDR VANE RR LH-MSO CF 		- 1 Enquire
054 14AC136RP
LOUVRED FENDER RETROFIT KIT COUPE 		$19,204.30 1
055 00RA489
SCREW - M4X10 - FLANGED - BUTTON HEAD 		- 4 Enquire
