17 - Suspension - Front - 17.2 - Uprights Front

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA232CP UPRIGHT - SUSPENSION - FRONT - LH $1,553.23 To Order
14BA248CP UPRIGHT - SUSPENSION - FRONT - RH $1,766.81 To Order
14BA247CP UPRIGHT - SUSPENSION - FRONT - LH $1,755.42 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER $16.38 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $125.38 To Order
16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY $543.62 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $63.08 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.66 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $12.59 To Order
Photo Part No Description Price (each) Stock
13B0750CP TOPHAT - TRACKROD - 1.6 TAPER $29.10 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.45 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.89 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.56 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $116.47 To Order
Photo Part No Description Price (each) Stock
11B0566CP NUT - M26 - 12POINT - HEX $11.62 To Order
Photo Part No Description Price (each) Stock
28BA474CP WHEEL HUB ASSY - BEARING $620.63 To Order
16BB154CP WHEEL HUB ASSY - BEARING $504.78 To Order
Photo Part No Description Price (each) Stock
11E0022CP HEATSHIELD-WHEEL S24SOR $48.53 To Order
11M0432CP SENSOR - WHEEL SPEED - REAR $192.88 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
View All

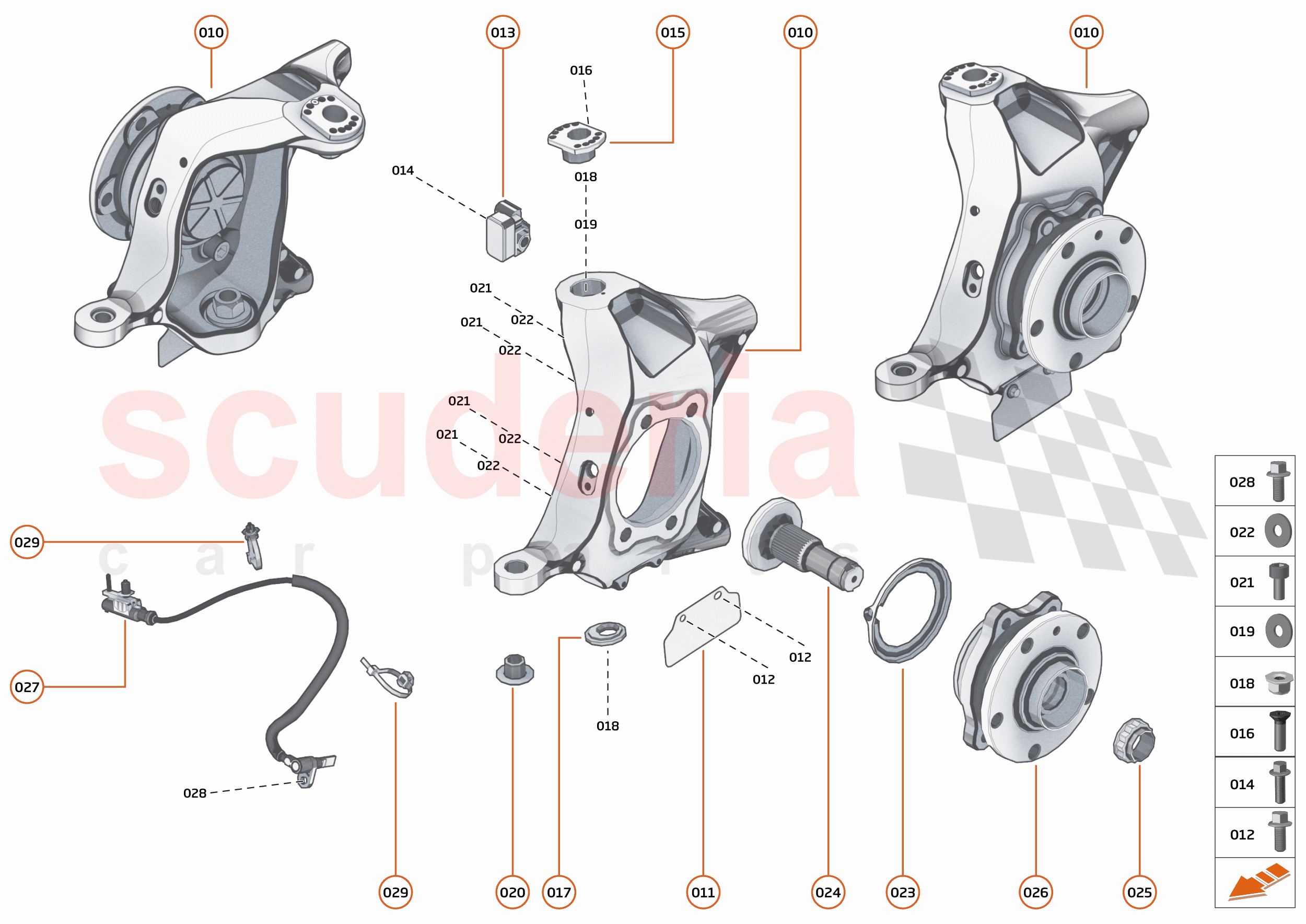

17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA232CP
UPRIGHT - SUSPENSION - FRONT - LH 		$1,553.23 1
010 14BA248CP
UPRIGHT - SUSPENSION - FRONT - RH 		$1,766.81 1
010 14BA247CP
UPRIGHT - SUSPENSION - FRONT - LH 		$1,755.42 1
010 14BA231CP
UPRIGHT - SUSPENSION - FRONT - LH 		- 1 Enquire
011 14B0431CP
HEATSHIELD - SUSPENSION UPRIGHT - LOWER 		$16.38 1
012 00RA165
BOLT - M5X8 - HEX 		- 2 Enquire
013 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$125.38 2
013 16MB358CP
SENSOR HUB ACCELEROMETER FR RH - ONLY 		$543.62 2
014 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
015 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$63.08 1
016 RA250
SCREW - M3X12 - HEX 		- 1 Enquire
017 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.66 1
018 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2 Enquire
019 11B0320CP
WASHER - DIA 35X3.9X14.5 		$12.59 1
020 13B0750CP
TOPHAT - TRACKROD - 1.6 TAPER 		$29.10 1
021 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.45 8
022 14B0714CP
WASHER - M12X23 		$2.89 4
023 15BA315CP
PROTECTOR CAP - HUB 		$38.56 1
024 14B0373CP
Stub Axle - Front 		$116.47 1
025 11B0566CP
NUT - M26 - 12POINT - HEX 		$11.62 1
026 28BA474CP
WHEEL HUB ASSY - BEARING 		$620.63 2
026 16BB154CP
WHEEL HUB ASSY - BEARING 		$504.78 1
027 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$48.53 2
027 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$192.88 2
028 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
029 00RL001
CABLE TIE - FIRTREE BASE 		- 4 Enquire
