McLaren 720S Spider - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
14AB839CP SHIM - 0.5MM - REAR - LOWER $8.64 To Order
14AB838CP SHIM - 1MM - REAR - LOWER $8.82 To Order
14AB837CP SHIM - 2MM - REAR - LOWER $9.61 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $105.11 To Order
Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $105.11 To Order
Photo Part No Description Price (each) Stock
14AB836CP SHIM - 0.5MM - REAR - UPPER $14.41 To Order
14AB835CP SHIM - 1MM - REAR - UPPER $16.34 To Order
14AB834CP SHIM - 2MM - REAR - UPPER $19.22 To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
11A4416CP CROSS BEAM - TRANSMISSION FLOOR $1,223.29 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $1.89 To Order
View All

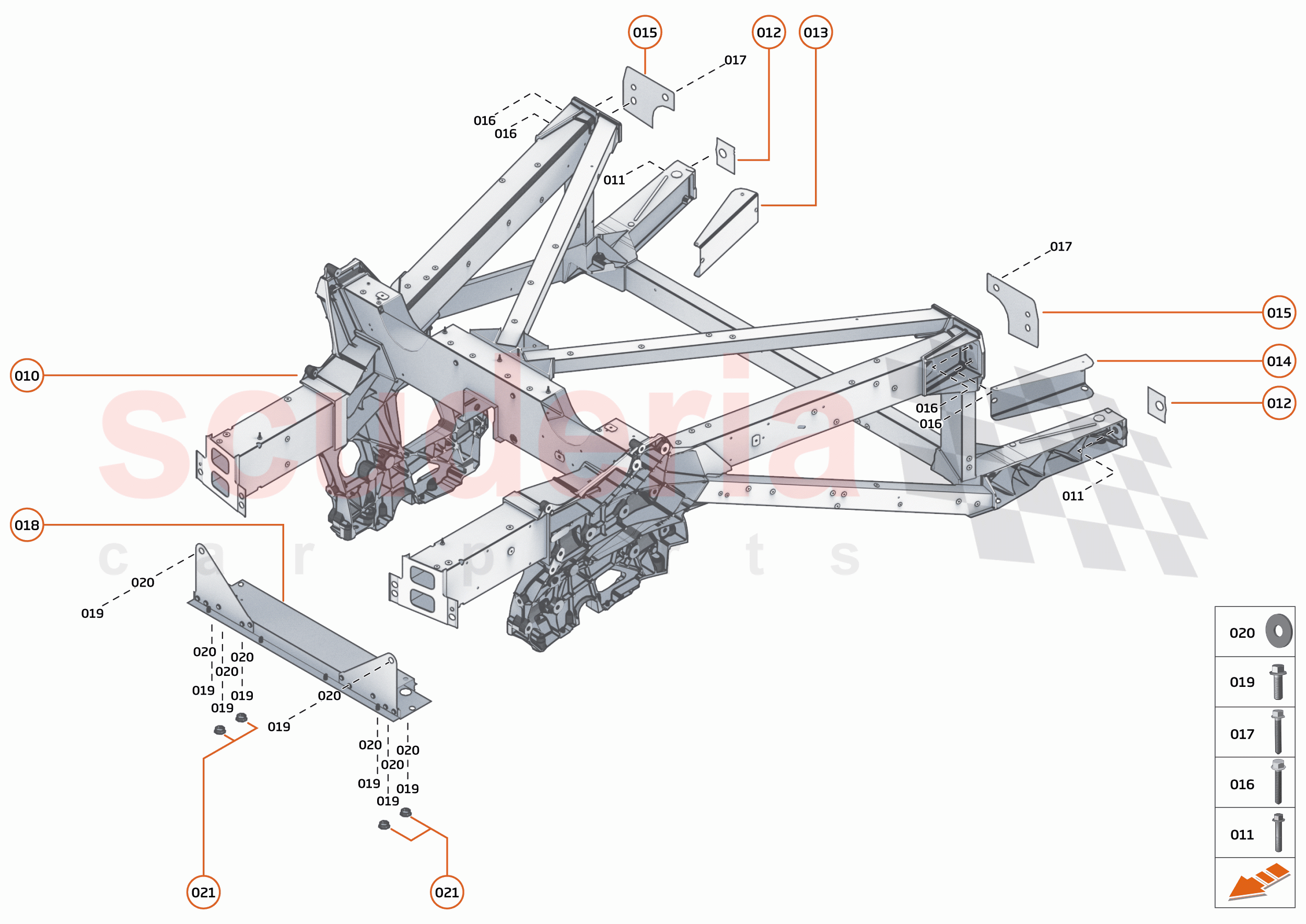

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2 Enquire
012 14AB839CP
SHIM - 0.5MM - REAR - LOWER 		$8.64 1
012 14AB838CP
SHIM - 1MM - REAR - LOWER 		$8.82 1
012 14AB837CP
SHIM - 2MM - REAR - LOWER 		$9.61 1
013 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.11 1
014 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.11 1
015 14AB836CP
SHIM - 0.5MM - REAR - UPPER 		$14.41 1
015 14AB835CP
SHIM - 1MM - REAR - UPPER 		$16.34 1
015 14AB834CP
SHIM - 2MM - REAR - UPPER 		$19.22 1
017 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2 Enquire
018 11A4416CP
CROSS BEAM - TRANSMISSION FLOOR 		$1,223.29 1
019 00RA457
SCREW - M10X30-10.9 - HEX 		- 8 Enquire
021 11A4284CP
PLUG - DOME - 25 DIAMETER 		$1.89 4
022 14AC052CP
CRASH CAN - REAR FRAME - REPAIR ASSEMBLY - RH 		$1,624.70 1
023 14AC053CP
CRASH CAN - REAR FRAME - REPAIR ASSEMBLY - LH 		$1,624.70 1
