McLaren 720S Coupe - 40 - TRANSMISSION - 40.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RA202 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11G0171CP Breather - Transmission $38.63 To Order
Photo Part No Description Price (each) Stock
11G0160CP O-ring - Differential Cover $62.79 To Order
Photo Part No Description Price (each) Stock
11G0165CP Seal - Input Shaft - Transmission $72.46 To Order
Photo Part No Description Price (each) Stock
00RA269 NUT - M10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11G0162CP O-ring - Differential Cover - Lubrication Channel $8.86 To Order
Photo Part No Description Price (each) Stock
11G0164CP Seal - Driveshaft Output - RH $72.46 To Order
Photo Part No Description Price (each) Stock
14GA005CP MOUNT - TRANSMISSION $367.18 To Order
Photo Part No Description Price (each) Stock
13G0060CP OIL COOLER-TRANSMI24ION $367.18 To Order
Photo Part No Description Price (each) Stock
11G0158CP O-ring - Cooler - Trans/Clutch $16.41 To Order
Photo Part No Description Price (each) Stock
11GA021CP O-ring - Clutch Cooler Enquire To Order
Photo Part No Description Price (each) Stock
11G0295CP TRANSMISISON SPEED SENSOR $591.87 IN STOCK
Photo Part No Description Price (each) Stock
11G0122CP BEARING COVER-SECO24ARY SHAFT $212.59 To Order
Photo Part No Description Price (each) Stock
11G0173CP O-ring - Transmission - Secondary Shaft Cover $8.48 To Order
Photo Part No Description Price (each) Stock
11G0113CP BEARING COVER-PRIM24Y SHAFT $212.59 To Order
Photo Part No Description Price (each) Stock
11G0172CP O-ring - Transmission - Primary Shaft Cover $16.41 To Order
Photo Part No Description Price (each) Stock
11G0156CP Fill-Drain Plug - Trans/Clutch - inc. Washer $38.63 To Order
Photo Part No Description Price (each) Stock
11G0168CP Sensor - Temperature - Transmission - inc. Washer $77.29 To Order
Photo Part No Description Price (each) Stock
11G0018CP FILTER-TRANSMISSION OIL $164.25 IN STOCK
Photo Part No Description Price (each) Stock
11G0163CP OUTPUT SHAFT SEAL-LH $72.46 To Order
Photo Part No Description Price (each) Stock
11G0017CP FILTER - CLUTCH FLUID $93.82 IN STOCK
Photo Part No Description Price (each) Stock
11G0166CP CLUTCH FILTER ACCESS COVER O-RING $4.25 IN STOCK
Photo Part No Description Price (each) Stock
11G0019CP Access Cover - Filter - Clutch Fluid $154.60 To Order
Photo Part No Description Price (each) Stock
11G0191CP Oil Cooler - Clutch Enquire To Order
Photo Part No Description Price (each) Stock
ASSY DUAL CLUTCH TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
14G0059CP HARNESS - TRANSMISSION $4,896.58 To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY $367.18 To Order
Photo Part No Description Price (each) Stock
11SA022CP INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE $122.18 To Order
Photo Part No Description Price (each) Stock
11G0165CP Seal - Input Shaft - Transmission $72.46 To Order
Photo Part No Description Price (each) Stock
14GA025CP CLUTCH BREATHER TANK DCT $425.17 To Order
View All

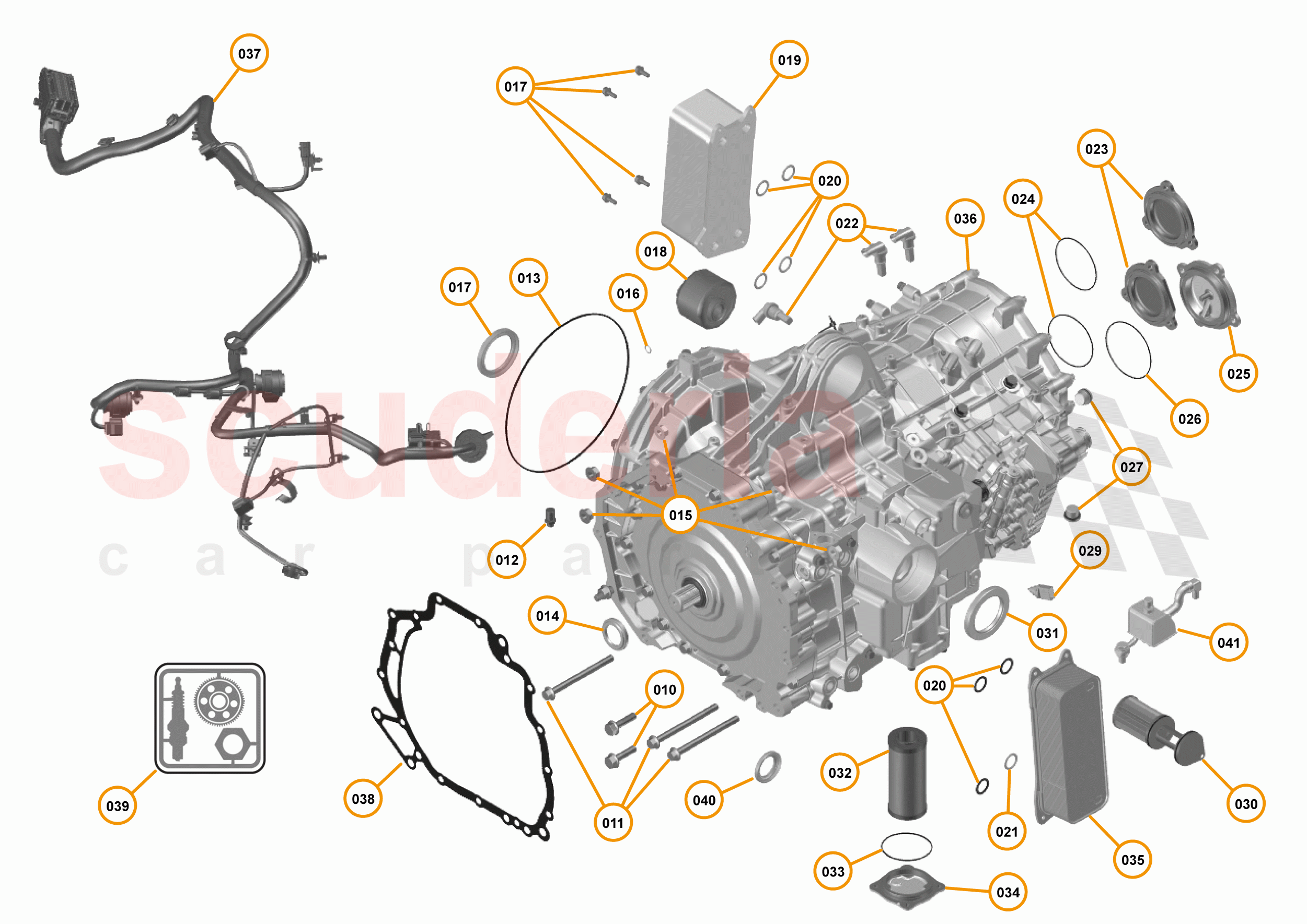

40 - TRANSMISSION - 40.1 - TRANSMISSION of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11GA003CP
PLUG SERVICE KIT - DUAL CLUTCH TRANSMISSION 		$115.94 1
000 11G0225CP
Bolt - M8x20 - Trans 		$10.61 1
000 11G0223CP
Stud - M10 - Trans to Engine 		$67.62 1
000 11G0170CP
Clip - Transmission Harness - CCV Connector 		$62.79 1
010 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2 Enquire
011 00RA202
BOLT - M10X1.5 - HEX 		- 3 Enquire
012 11G0171CP
Breather - Transmission 		$38.63 2
013 11G0160CP
O-ring - Differential Cover 		$62.79 1
014 11G0165CP
Seal - Input Shaft - Transmission 		$72.46 1
015 00RA269
NUT - M10 - HEX 		- 6 Enquire
016 11G0162CP
O-ring - Differential Cover - Lubrication Channel 		$8.86 1
017 11G0164CP
Seal - Driveshaft Output - RH 		$72.46 1
018 14GA005CP
MOUNT - TRANSMISSION 		$367.18 1
019 13G0060CP
OIL COOLER-TRANSMI24ION 		$367.18 1
020 11G0158CP
O-ring - Cooler - Trans/Clutch 		$16.41 7
021 11GA021CP
O-ring - Clutch Cooler 		- 1 Enquire
022 11G0295CP
TRANSMISISON SPEED SENSOR
IN STOCK 		$591.87 3
023 11G0122CP
BEARING COVER-SECO24ARY SHAFT 		$212.59 2
024 11G0173CP
O-ring - Transmission - Secondary Shaft Cover 		$8.48 2
025 11G0113CP
BEARING COVER-PRIM24Y SHAFT 		$212.59 1
026 11G0172CP
O-ring - Transmission - Primary Shaft Cover 		$16.41 1
027 11G0156CP
Fill-Drain Plug - Trans/Clutch - inc. Washer 		$38.63 3
029 11G0168CP
Sensor - Temperature - Transmission - inc. Washer 		$77.29 1
030 11G0018CP
FILTER-TRANSMISSION OIL
IN STOCK 		$164.25 1
031 11G0163CP
OUTPUT SHAFT SEAL-LH 		$72.46 1
032 11G0017CP
FILTER - CLUTCH FLUID
IN STOCK 		$93.82 1
033 11G0166CP
CLUTCH FILTER ACCESS COVER O-RING
IN STOCK 		$4.25 1
034 11G0019CP
Access Cover - Filter - Clutch Fluid 		$154.60 1
035 11G0191CP
Oil Cooler - Clutch 		- 1 Enquire
036 ASSY
DUAL CLUTCH TRANSMISSION 		- 1 Enquire
037 14G0059CP
HARNESS - TRANSMISSION 		$4,896.58 1
038 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY 		$367.18 1
039 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE 		$122.18 1
040 11G0165CP
Seal - Input Shaft - Transmission 		$72.46 1
041 14GA025CP
CLUTCH BREATHER TANK DCT 		$425.17 1
