45 - WIRING HARNESS - 45.1 - POWER & GROUND DISTRIBUTION of McLaren McLaren 720S Coupe

View All

McLaren 720S Coupe - 45 - WIRING HARNESS - 45.1 - POWER & GROUND DISTRIBUTION

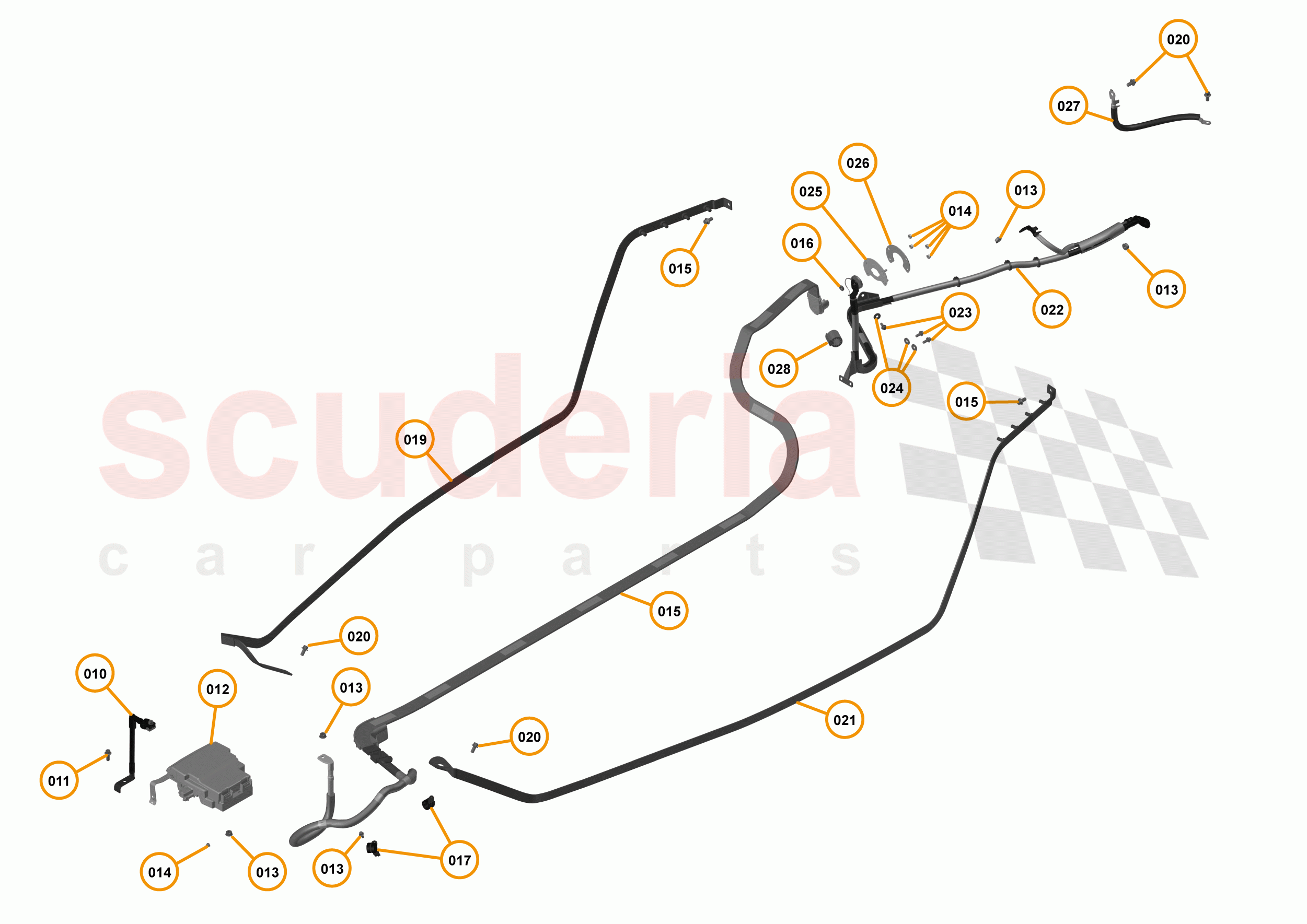

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M0227CP	BATTERY CABLE - NEGATIVE	$143.72	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22MA347GP	PRE FUSE BOX	$270.03	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M1124CP	BUSBAR - RHD 24	$1,629.04	To Order
	11M0926CP	BUSBAR - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA262	HALF NUT - M8 - DIN 439	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0186CP	WIRING HARNESS GND24OOP-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0185CP	WIRING HARNESS GND24OOP-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA628CP	WIRING HARNESS - STARTER MOTOR - INC. CARRIER	$1,226.56	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0743CP	BUSBAR RETENTION PLATE	$57.48	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	$28.73	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA183CP	ENGINE GROUND STRAP	$249.13	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M0227CP	BATTERY CABLE - NEGATIVE	11M0227CP BATTERY CABLE - NEGATIVE	$143.72	1
011	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX	-	1	Enquire
012	22MA347GP	PRE FUSE BOX	22MA347GP PRE FUSE BOX	$270.03	1
013	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX	-	4	Enquire
014	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED	-	6	Enquire
015	11M1124CP	BUSBAR - RHD 24	11M1124CP BUSBAR - RHD 24	$1,629.04	1
015	11M0926CP	BUSBAR - LHD	11M0926CP BUSBAR - LHD	-	1	Enquire
016	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439	-	1	Enquire
017	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20	-	2	Enquire
018	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX	-	1	Enquire
019	11M0186CP	WIRING HARNESS GND24OOP-RH	11M0186CP WIRING HARNESS GND24OOP-RH	-	1	Enquire
020	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8	-	6	Enquire
021	11M0185CP	WIRING HARNESS GND24OOP-LH	11M0185CP WIRING HARNESS GND24OOP-LH	-	1	Enquire
022	14MA628CP	WIRING HARNESS - STARTER MOTOR - INC. CARRIER	14MA628CP WIRING HARNESS - STARTER MOTOR - INC. CARRIER	$1,226.56	1
023	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Superseded parts: 00RA313;	-	3	Enquire
024	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	3	Enquire
025	11M0743CP	BUSBAR RETENTION PLATE	11M0743CP BUSBAR RETENTION PLATE	$57.48	1
026	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	11M0779CP BUSBAR RETENTION PLATE AFT - REAR	$28.73	1
027	13MA183CP	ENGINE GROUND STRAP	13MA183CP ENGINE GROUND STRAP	$249.13	1
028	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID	-	1	Enquire
