28 - Fuel Tank - 28.2 - Fuel Tank Retention

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 28 - FUEL TANK - 28.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH $8.81 To Order
Photo Part No Description Price (each) Stock
14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH $8.81 To Order
Photo Part No Description Price (each) Stock
14KA031CP PAD - FUEL TANK - CROSS MEMBER $12.54 To Order
Photo Part No Description Price (each) Stock
14KA032CP PAD - FUEL TANK - CROSS MEMBER - RH $5.93 To Order
Photo Part No Description Price (each) Stock
14KA033CP PAD - FUEL TANK - REAR - CENTRE $6.51 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $33.59 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $62.39 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $12.46 To Order
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $10.55 To Order
Photo Part No Description Price (each) Stock
14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK $13.50 To Order
Photo Part No Description Price (each) Stock
14K0068CP MOUNTING STRAP - FUEL TANK $82.10 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14KA024CP BRACKET - FUEL TANK - LOWER - FRONT $33.81 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RG010 NUT PROTECTOR - M6 -REEVITE Enquire To Order
Photo Part No Description Price (each) Stock
14KA005CP RETAINING STRAP - FUEL TANK - LH $82.10 To Order
Photo Part No Description Price (each) Stock
14KA006CP RETAINING STRAP - FUEL TANK - RH $82.10 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
View All

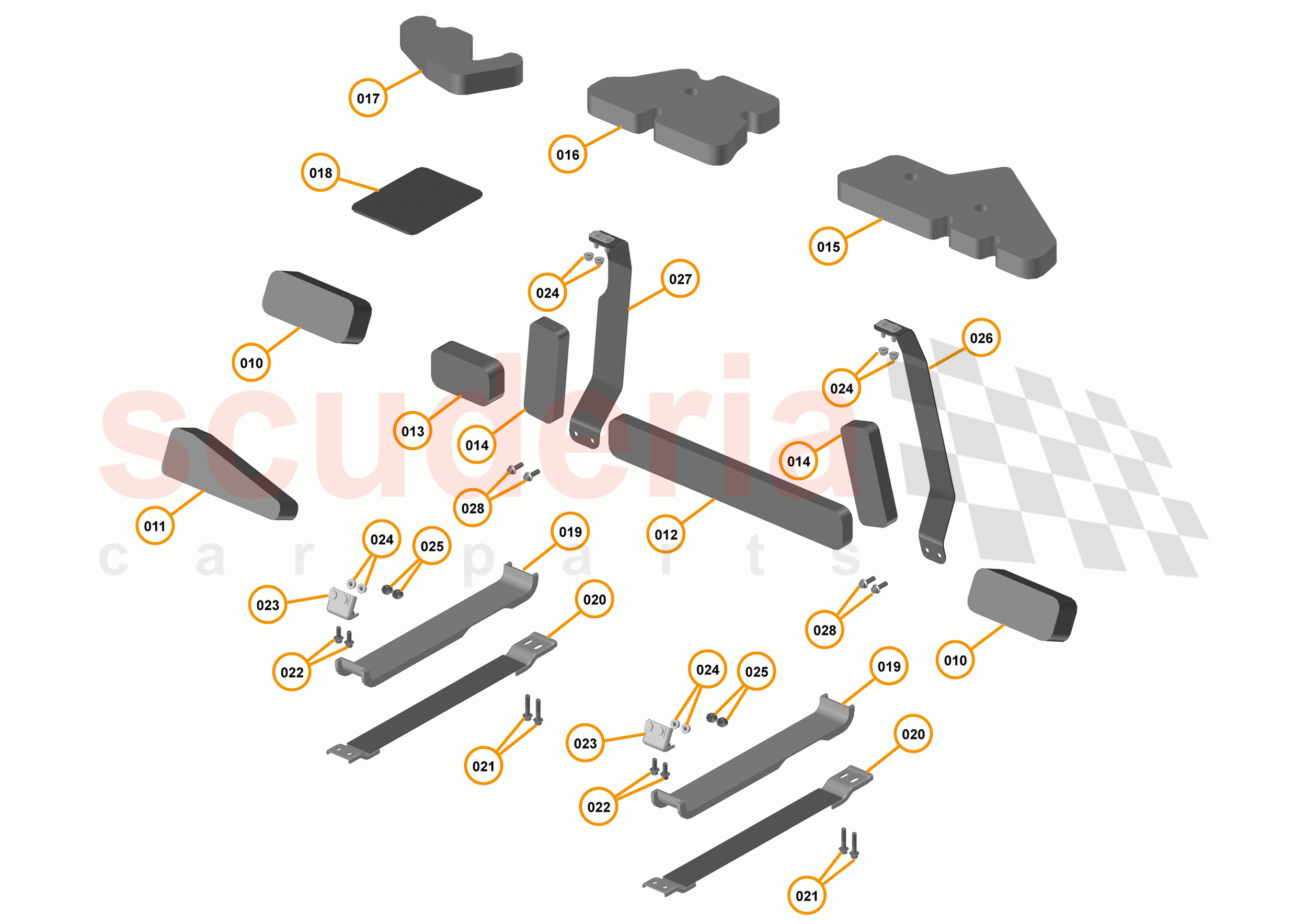

28 - FUEL TANK - 28.2 - FUEL TANK RETENTION of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14K0143CP
PAD - FUEL TANK - BULKHEAD - LOWER - RH 		$8.81 2
011 14K0143CP
PAD - FUEL TANK - BULKHEAD - LOWER - RH 		$8.81 1
012 14KA031CP
PAD - FUEL TANK - CROSS MEMBER 		$12.54 1
013 14KA032CP
PAD - FUEL TANK - CROSS MEMBER - RH 		$5.93 1
014 14KA033CP
PAD - FUEL TANK - REAR - CENTRE 		$6.51 2
015 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$33.59 1
016 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$62.39 1
017 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$12.46 1
018 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$10.55 1
019 14KA046CP
MOUNTING STRAP - MOULDED - FUEL TANK 		$13.50 2
020 14K0068CP
MOUNTING STRAP - FUEL TANK 		$82.10 2
021 00RA120
SCREW - M6X25 - HEX 		- 4 Enquire
022 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 4 Enquire
023 14KA024CP
BRACKET - FUEL TANK - LOWER - FRONT 		$33.81 2
024 00RA055
NUT - M6 - LOCKING - HEX 		- 8 Enquire
025 00RG010
NUT PROTECTOR - M6 -REEVITE 		- 4 Enquire
026 14KA005CP
RETAINING STRAP - FUEL TANK - LH 		$82.10 1
027 14KA006CP
RETAINING STRAP - FUEL TANK - RH 		$82.10 1
028 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4 Enquire
