24 - M1 - Electrical Distribution - 24.1 - 01 - Electrical Distribution - Power Distribution

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 24 - M1 - ELECTRICAL DISTRIBUTION - 24.1 - 01 - ELECTRICAL DISTRIBUTION - POWER DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M1124CP BUSBAR - RHD 24 $1,630.06 To Order
11M0926CP BUSBAR - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11M0185CP WIRING HARNESS GND24OOP-LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0186CP WIRING HARNESS GND24OOP-RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
11M0339CP TRUNKING-ELEC-REAR $81.49 To Order
Photo Part No Description Price (each) Stock
11M0338CP Trunking/Harness Routing - Tunnel $249.28 To Order
Photo Part No Description Price (each) Stock
13M0803CP CLAMP - BATTERY SIDE - LH $53.05 To Order
Photo Part No Description Price (each) Stock
13M0804CP CLAMP - BATTERY SIDE - RH $53.05 To Order
Photo Part No Description Price (each) Stock
00RA062 SCREW-HEX HEAD-FLA24E-M8X16-8. Enquire To Order
Photo Part No Description Price (each) Stock
13M0773CP BATTERY CABLE - NEGATIVE $182.17 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
22MA315GP GEN3 BATTERY 30PER CHARGE Enquire To Order
Photo Part No Description Price (each) Stock
11M3222CP Fusebox - Battery - Front $441.06 To Order
Photo Part No Description Price (each) Stock
11M2517CP NVH PAD - GROMMET - LOWER - LHD $15.41 To Order
Photo Part No Description Price (each) Stock
22MA404GP BATTERY CABLE - NEGATIVE $521.14 To Order
Photo Part No Description Price (each) Stock
22MA347GP PRE FUSE BOX $270.20 To Order
Photo Part No Description Price (each) Stock
11MA038CP BATTERY GEN_3 LIN HARNESS $28.92 To Order
View All

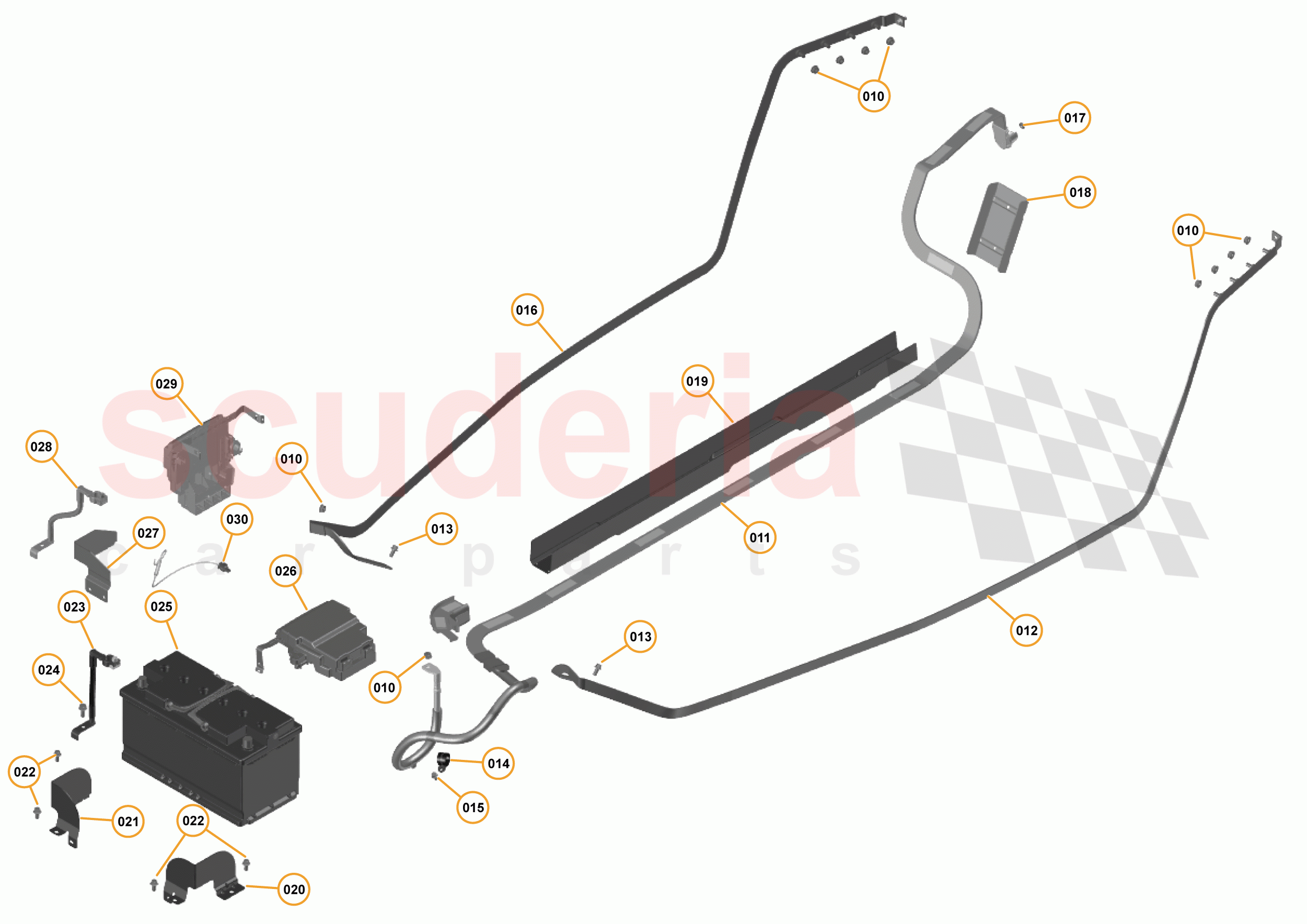

24 - M1 - ELECTRICAL DISTRIBUTION - 24.1 - 01 - ELECTRICAL DISTRIBUTION - POWER DISTRIBUTION of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA075
NUT - M8-8 - HEX 		- 12 Enquire
011 11M1124CP
BUSBAR - RHD 24 		$1,630.06 1
011 11M0926CP
BUSBAR - LHD 		- 1 Enquire
012 11M0185CP
WIRING HARNESS GND24OOP-LH
Superseded parts: 11M0185CP; 		- 1 Enquire
013 00RA344
SCREW - HEX - FLANGE - M8X16 - 8.8 		- 6 Enquire
014 00RB060
P CLIP - DIA 20 		- 2 Enquire
015 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 3 Enquire
016 11M0186CP
WIRING HARNESS GND24OOP-RH
Superseded parts: 11M0186CP; 		- 1 Enquire
017 00RA262
HALF NUT - M8 - DIN 439 		- 1 Enquire
018 11M0339CP
TRUNKING-ELEC-REAR 		$81.49 1
019 11M0338CP
Trunking/Harness Routing - Tunnel 		$249.28 1
020 13M0803CP
CLAMP - BATTERY SIDE - LH 		$53.05 1
021 13M0804CP
CLAMP - BATTERY SIDE - RH 		$53.05 1
022 00RA062
SCREW-HEX HEAD-FLA24E-M8X16-8. 		- 2 Enquire
023 13M0773CP
BATTERY CABLE - NEGATIVE 		$182.17 1
024 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
025 22MA315GP
GEN3 BATTERY 30PER CHARGE 		- 1 Enquire
026 11M3222CP
Fusebox - Battery - Front
Superseded parts: 11M1391CP; 		$441.06 1
027 11M2517CP
NVH PAD - GROMMET - LOWER - LHD
Superseded parts: 11M1286CP; 		$15.41 1
028 22MA404GP
BATTERY CABLE - NEGATIVE 		$521.14 1
029 22MA347GP
PRE FUSE BOX 		$270.20 1
030 11MA038CP
BATTERY GEN_3 LIN HARNESS 		$28.92 1
