22 - H1 - Exhaust System - 22.1 - 01 - Exhaust System

McLaren 675LT Spider

Find Your Part

McLaren 675LT Spider - 22 - H1 - EXHAUST SYSTEM - 22.1 - 01 - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11H0268CP CLAMP RING - EXHAUST - 121MM - LINK PIPES $82.13 To Order
Photo Part No Description Price (each) Stock
11H0098CP MICA SEALING RING - EXHAUST - TURBOCHARGER $43.47 To Order
Photo Part No Description Price (each) Stock
11H0466CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH $2,880.35 To Order
Photo Part No Description Price (each) Stock
11H0099CP SENSOR - LAMBDA - PRE-CATALYST $859.38 To Order
Photo Part No Description Price (each) Stock
11H0100CP SENSOR - LAMBDA - POST-CATALYST $362.83 To Order
Photo Part No Description Price (each) Stock
11H0440CP Hanger Bracket - Link Pipe - Exhaust - RH $72.00 To Order
Photo Part No Description Price (each) Stock
11H0211CP EXHAUST HANGER - LINK PIPE - RUBBER $48.32 To Order
Photo Part No Description Price (each) Stock
11H0173CP CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER $43.47 To Order
Photo Part No Description Price (each) Stock
11H0073CP Mounting Plate - Muffler $33.83 To Order
Photo Part No Description Price (each) Stock
11H0065CP ISOLATOR - MUFFLER MOUNTING $106.31 To Order
Photo Part No Description Price (each) Stock
11H0492LP Muffler - 675LT Spider $8,273.79 To Order
Photo Part No Description Price (each) Stock
11H0439CP Hanger Bracket - Link Pipe - Exhaust - LH $72.00 To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
11H0464CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH $2,880.35 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11H0476RP Finisher - Exhaust - 675LT $1,037.14 To Order
View All

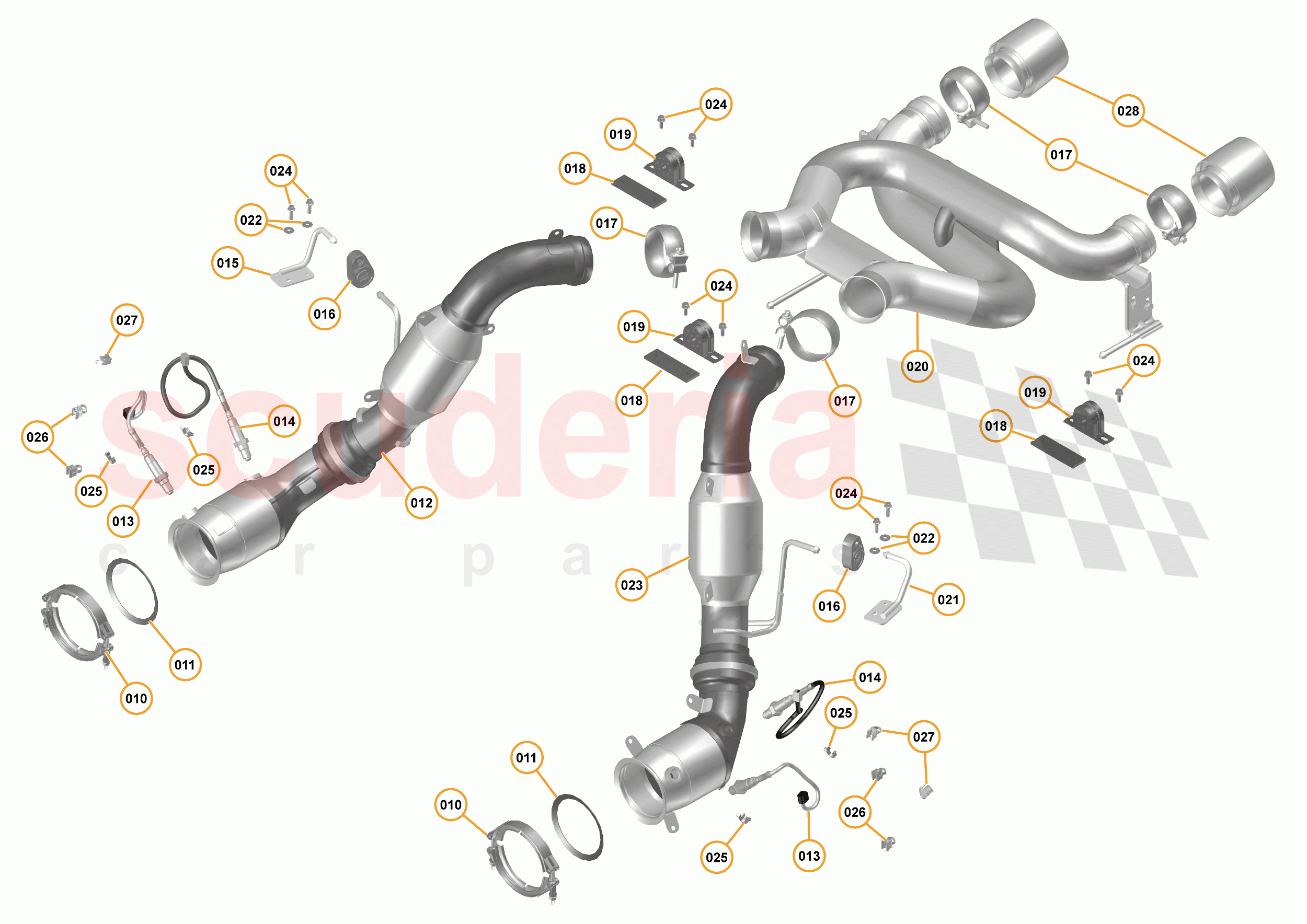

22 - H1 - EXHAUST SYSTEM - 22.1 - 01 - EXHAUST SYSTEM of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11H0268CP
CLAMP RING - EXHAUST - 121MM - LINK PIPES 		$82.13 2
011 11H0098CP
MICA SEALING RING - EXHAUST - TURBOCHARGER 		$43.47 2
012 11H0466CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH 		$2,880.35 1
013 11H0099CP
SENSOR - LAMBDA - PRE-CATALYST 		$859.38 2
014 11H0100CP
SENSOR - LAMBDA - POST-CATALYST 		$362.83 2
015 11H0440CP
Hanger Bracket - Link Pipe - Exhaust - RH 		$72.00 1
016 11H0211CP
EXHAUST HANGER - LINK PIPE - RUBBER 		$48.32 2
017 11H0173CP
CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER 		$43.47 2
018 11H0073CP
Mounting Plate - Muffler 		$33.83 1
019 11H0065CP
ISOLATOR - MUFFLER MOUNTING 		$106.31 3
020 11H0492LP
Muffler - 675LT Spider 		$8,273.79 1
021 11H0439CP
Hanger Bracket - Link Pipe - Exhaust - LH 		$72.00 1
022 00RC013
WASHER - M6X18X1.6 		- 4 Enquire
023 11H0464CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH 		$2,880.35 1
024 00RA083
SCREW - M6X20 - FLANGE HEX 		- 10 Enquire
025 00RB032
CLIP - 13-14MM - FEMALE 		- 4 Enquire
026 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 6 Enquire
027 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 2 Enquire
028 11H0476RP
Finisher - Exhaust - 675LT 		$1,037.14 2
