McLaren 650S Coupe - 14 - L1 - COOLING SYSTEM - 14.2 - 01 - MAIN ENGINE RADIATORS, FANS AND COOLANT RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
11L0369CP BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH $231.84 To Order
11L0085CP Bracket - Radiator Mounting - Fore - Lower - LH $53.11 To Order
Photo Part No Description Price (each) Stock
11L0378CP SEAL - RADIATOR TO BODY - FRONT $62.38 To Order
11L0251CP Seal - Radiator To Body - Front $151.17 To Order
Photo Part No Description Price (each) Stock
11L0358CP Fan - Assy - Radiator - MY2015 $691.10 To Order
11L0280CP Fan - Assy - Radiator $614.30 To Order
Photo Part No Description Price (each) Stock
13L0241CP HOSE - RADIATOR FROM ENGINE - LH $193.20 To Order
11L0199CP ASSY-HOSE-ENGINE TO RADIATOR-L $96.59 To Order
Photo Part No Description Price (each) Stock
11L0355CP DUCT - COOLING - RADIATOR TO HVAC $135.24 To Order
11L0228CP HOSE-COOLING DUCT-24AC COMPRES $106.26 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
11F1021CP RADIATOR - INBOARD LH $251.18 To Order
Photo Part No Description Price (each) Stock
11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE $38.19 To Order
Photo Part No Description Price (each) Stock
13LA040CP Hose - Radiator - Upper - Outboard - LH - MY2015 $144.91 To Order
11L0249CP Hose - Radiator Outboard - LH $231.84 To Order
Photo Part No Description Price (each) Stock
00RB056 SPRING BAND CLAMP - DIA 40 Enquire To Order
Photo Part No Description Price (each) Stock
11L0373CP Bracket - Radiator Mounting - Upper - LH - MY2015 $57.94 To Order
11L0093CP BRKT-MNTG-RADIATOR24PR-LH $72.45 To Order
Photo Part No Description Price (each) Stock
11L0377CP SEAL - RADIATOR TO CONDENSER $62.38 To Order
11L0250CP SEAL - RADIATOR TO BODY - TOP $40.80 To Order
Photo Part No Description Price (each) Stock
11L0252CP Seal - Radiator Top - Rear $71.56 To Order
Photo Part No Description Price (each) Stock
11L0392CP RADIATOR - ENGINE COOLANT - LH $1,545.76 To Order
11L0376CP RADIATOR - ENGINE COOLANT - RH $1,545.76 To Order
11L0225CP Radiator - Engine Coolant - 12C $985.42 To Order
Photo Part No Description Price (each) Stock
11L0371CP BRACKET - RADIATOR MOUNTING - AFT - LOWER - LH $115.91 To Order
11L0091CP BRKT-MNTG-RADIATOR24WR-AFT-LH $106.26 To Order
Photo Part No Description Price (each) Stock
11L0370CP BRACKET - RADIATOR MOUNTING - FORE - LOWER - RH $231.84 To Order
11L0092CP BRKT-MNTG-RADIATOR24WR-FORE-RH $53.11 To Order
Photo Part No Description Price (each) Stock
11L0372CP BRACKET - RADIATOR MOUNTING - AFT - LOWER - RH $115.91 To Order
11L0094CP BRKT-MNTG-RADIATOR24WR-AFT-RH $106.26 To Order
Photo Part No Description Price (each) Stock
11L0361CP Hose - Radiator - Upper - Outboard - RH - MY2015 $209.95 To Order
11L0301CP HOSE-RADIATOR-UPPE24RH OUTBOAR $251.18 To Order
Photo Part No Description Price (each) Stock
11FA039CP RADIATOR - INBOARD RH $251.18 To Order
Photo Part No Description Price (each) Stock
11L0374CP Bracket - Radiator Mounting - Upper - RH - MY2015 $57.94 To Order
11L0096CP Bracket - Radiator Mounting - Upper - RH $72.45 To Order
Photo Part No Description Price (each) Stock
11L0438CP CAP HEADER TANK METAL $460.74 To Order
11L0312CP Cap - Header Tank $115.91 To Order
Photo Part No Description Price (each) Stock
11L0233CP COVER-HEADER TANK-24 $212.54 To Order
11L0229CP COVER CARBON HEADER TANK $2,550.54 To Order
Photo Part No Description Price (each) Stock
11L0234CP TRIM-COVER-HEADER 24NK $231.84 To Order
Photo Part No Description Price (each) Stock
11L0553LP Header Tank - Engine $289.82 To Order
Photo Part No Description Price (each) Stock
11L0430CP Bracket - Header Tank - MY2015 $135.24 To Order
11L0223CP Bracket - Header Tank $154.56 To Order
Photo Part No Description Price (each) Stock
13L0248CP HOSE - RADIATOR FROM ENGINE - RH $193.20 To Order
11L0200CP ASSY-HOSE-ENGINE TO RADIATOR-R $106.26 To Order
Photo Part No Description Price (each) Stock
11L0235CP Sensor - Fluid Level - Header Tank $62.38 To Order
Photo Part No Description Price (each) Stock
00RA404 Screw - M5x16 - Button Head Enquire To Order
View All

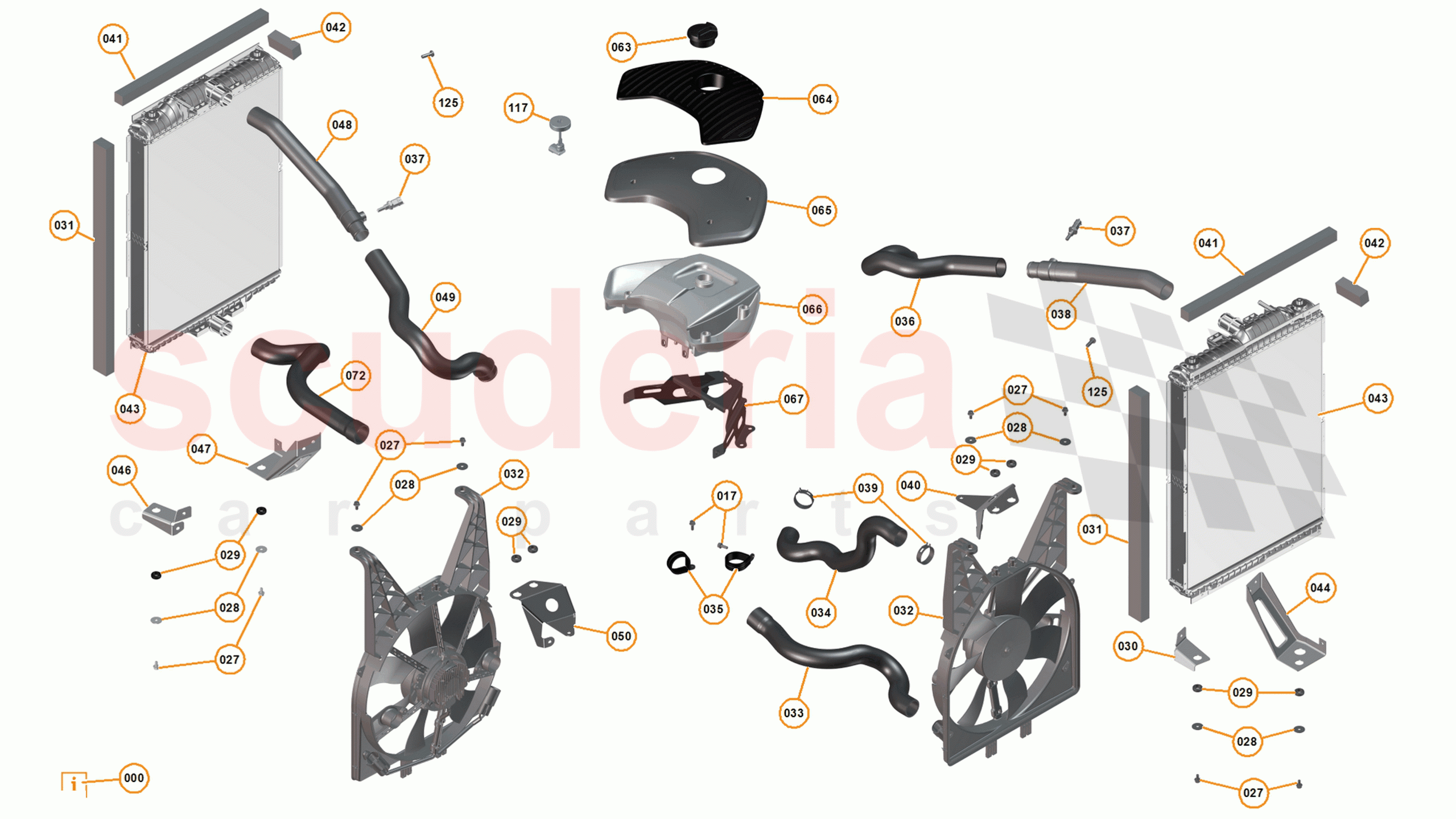

14 - L1 - COOLING SYSTEM - 14.2 - 01 - MAIN ENGINE RADIATORS, FANS AND COOLANT RESERVOIR of McLaren McLaren 650S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 2 Enquire
000 00RB130
CLIP - SPRING BAND - 22/12 		- 2 Enquire
017 00RA061
Screw - M6x16 - Flange Hex 		- 26 Enquire
027 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 8 Enquire
028 00RC043
WASHER - M6XOD25 		- 8 Enquire
029 00RG011
GROMMET - DIA 19 - RUBBER 		- 8 Enquire
030 11L0369CP
BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH 		$231.84 1
030 11L0085CP
Bracket - Radiator Mounting - Fore - Lower - LH 		$53.11 1
031 11L0378CP
SEAL - RADIATOR TO BODY - FRONT 		$62.38 2
031 11L0251CP
Seal - Radiator To Body - Front 		$151.17 1
032 11L0358CP
Fan - Assy - Radiator - MY2015 		$691.10 2
032 11L0280CP
Fan - Assy - Radiator 		$614.30 2
033 13L0241CP
HOSE - RADIATOR FROM ENGINE - LH 		$193.20 1
033 11L0199CP
ASSY-HOSE-ENGINE TO RADIATOR-L 		$96.59 1
034 11L0355CP
DUCT - COOLING - RADIATOR TO HVAC 		$135.24 1
034 11L0228CP
HOSE-COOLING DUCT-24AC COMPRES 		$106.26 1
035 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
036 11F1021CP
RADIATOR - INBOARD LH 		$251.18 1
037 11L0247CP
SENSOR - COOLANT TEMPERATURE - ENGINE 		$38.19 2
038 13LA040CP
Hose - Radiator - Upper - Outboard - LH - MY2015 		$144.91 1
038 11L0249CP
Hose - Radiator Outboard - LH 		$231.84 1
039 00RB056
SPRING BAND CLAMP - DIA 40 		- 2 Enquire
040 11L0373CP
Bracket - Radiator Mounting - Upper - LH - MY2015 		$57.94 1
040 11L0093CP
BRKT-MNTG-RADIATOR24PR-LH 		$72.45 1
041 11L0377CP
SEAL - RADIATOR TO CONDENSER 		$62.38 4
041 11L0250CP
SEAL - RADIATOR TO BODY - TOP 		$40.80 1
042 11L0252CP
Seal - Radiator Top - Rear 		$71.56 2
043 11L0392CP
RADIATOR - ENGINE COOLANT - LH 		$1,545.76 1
043 11L0376CP
RADIATOR - ENGINE COOLANT - RH 		$1,545.76 1
043 11L0225CP
Radiator - Engine Coolant - 12C 		$985.42 1
044 11L0371CP
BRACKET - RADIATOR MOUNTING - AFT - LOWER - LH 		$115.91 1
044 11L0091CP
BRKT-MNTG-RADIATOR24WR-AFT-LH 		$106.26 1
046 11L0370CP
BRACKET - RADIATOR MOUNTING - FORE - LOWER - RH 		$231.84 1
046 11L0092CP
BRKT-MNTG-RADIATOR24WR-FORE-RH 		$53.11 1
047 11L0372CP
BRACKET - RADIATOR MOUNTING - AFT - LOWER - RH 		$115.91 1
047 11L0094CP
BRKT-MNTG-RADIATOR24WR-AFT-RH 		$106.26 1
048 11L0361CP
Hose - Radiator - Upper - Outboard - RH - MY2015 		$209.95 1
048 11L0301CP
HOSE-RADIATOR-UPPE24RH OUTBOAR 		$251.18 1
049 11FA039CP
RADIATOR - INBOARD RH 		$251.18 1
050 11L0374CP
Bracket - Radiator Mounting - Upper - RH - MY2015 		$57.94 1
050 11L0096CP
Bracket - Radiator Mounting - Upper - RH 		$72.45 1
063 11L0438CP
CAP HEADER TANK METAL 		$460.74 1
063 11L0312CP
Cap - Header Tank 		$115.91 1
064 11L0233CP
COVER-HEADER TANK-24 		$212.54 1
064 11L0229CP
COVER CARBON HEADER TANK 		$2,550.54 1
065 11L0234CP
TRIM-COVER-HEADER 24NK 		$231.84 1
066 11L0553LP
Header Tank - Engine
Superseded parts: 11L0379CP; 		$289.82 1
067 11L0430CP
Bracket - Header Tank - MY2015 		$135.24 1
067 11L0223CP
Bracket - Header Tank 		$154.56 1
072 13L0248CP
HOSE - RADIATOR FROM ENGINE - RH 		$193.20 1
072 11L0200CP
ASSY-HOSE-ENGINE TO RADIATOR-R 		$106.26 1
117 11L0235CP
Sensor - Fluid Level - Header Tank 		$62.38 1
125 00RA404
Screw - M5x16 - Button Head 		- 2 Enquire
