16 - F1 - Power Unit - 16.10 - 01 - Power Unit - Front Cover + Timing Chains

McLaren 625C Coupe

Find Your Part

McLaren 625C Coupe - 16 - F1 - POWER UNIT - 16.10 - 01 - POWER UNIT - FRONT COVER + TIMING CHAINS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1920CP BOLT - M16X90 - TVD $9.43 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.58 To Order
Photo Part No Description Price (each) Stock
11F1393CP Seal - Engine - Front Cover Perimeter $52.96 To Order
11F0397CP Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal Enquire To Order
Photo Part No Description Price (each) Stock
11F0978CP Cover - Cylinder Head Front - RH - Engine $144.50 To Order
Photo Part No Description Price (each) Stock
11F0722CP Chain Drive Kit - Engine - Oil Pump $211.94 To Order
Photo Part No Description Price (each) Stock
11F0718CP Gear - Engine - Compound $250.47 To Order
Photo Part No Description Price (each) Stock
11F0723CP Camshaft Drive Kit - Engine $1,332.41 To Order
Photo Part No Description Price (each) Stock
11F0977CP Cover - Cylinder Head Front - LH - Engine $144.50 To Order
Photo Part No Description Price (each) Stock
11F0721CP Chain Drive Kit - Engine - Water Pump $250.47 To Order
Photo Part No Description Price (each) Stock
11F1387CP FRONT CRANK SEAL Enquire To Order
View All

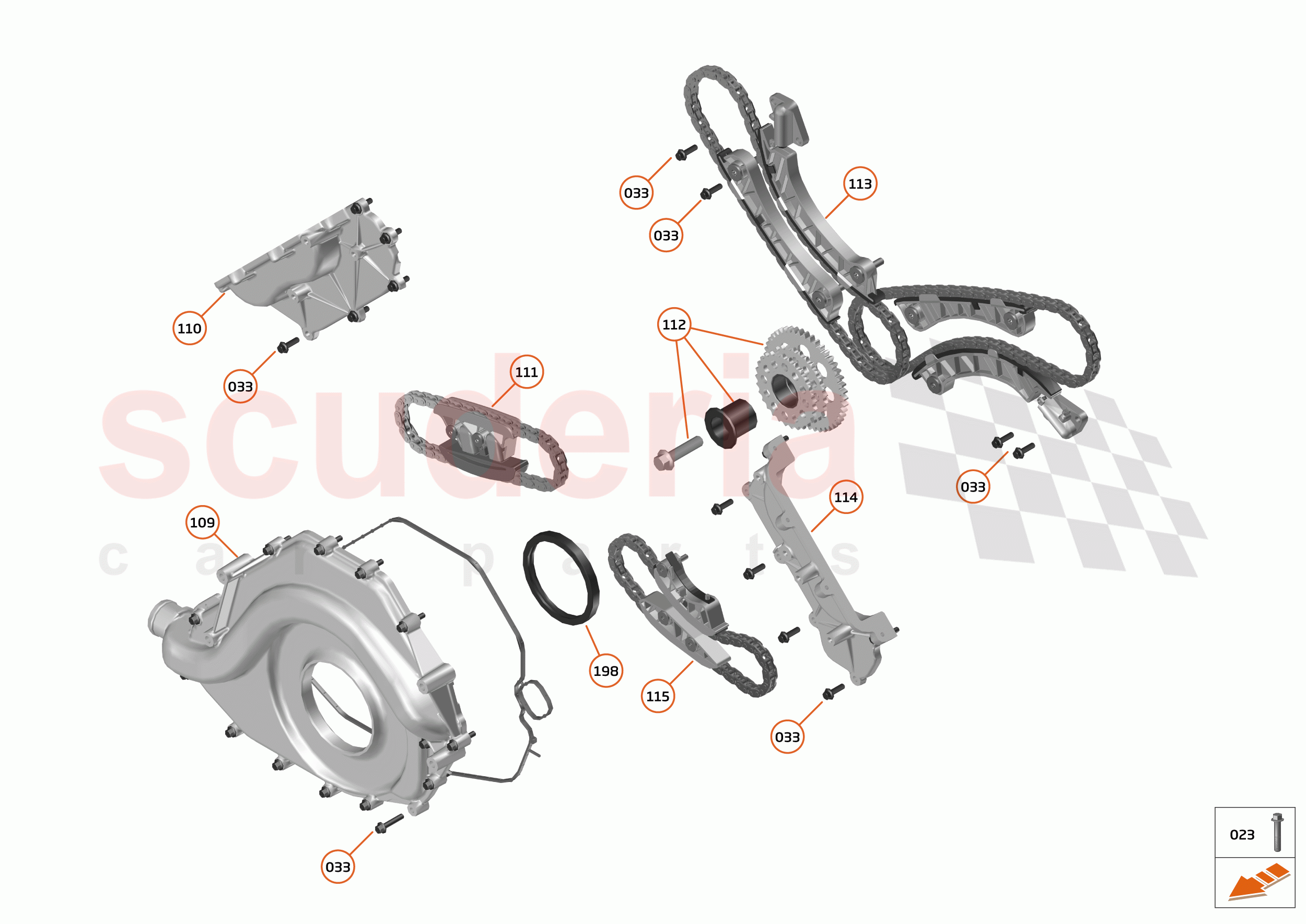

16 - F1 - POWER UNIT - 16.10 - 01 - POWER UNIT - FRONT COVER + TIMING CHAINS of McLaren McLaren 625C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
022 11F1776CP
BOLT - M6X30 - HEX 		$9.63 1
023 11F1920CP
BOLT - M16X90 - TVD 		$9.43 1
033 11F1793CP
BOLT - M6X20 - HEX 		$10.58 1
109 11F1393CP
Seal - Engine - Front Cover Perimeter 		$52.96 1
109 11F0397CP
Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal 		- 1 Enquire
110 11F0978CP
Cover - Cylinder Head Front - RH - Engine 		$144.50 1
111 11F0722CP
Chain Drive Kit - Engine - Oil Pump 		$211.94 1
112 11F0718CP
Gear - Engine - Compound 		$250.47 1
113 11F0723CP
Camshaft Drive Kit - Engine 		$1,332.41 1
114 11F0977CP
Cover - Cylinder Head Front - LH - Engine 		$144.50 1
115 11F0721CP
Chain Drive Kit - Engine - Water Pump 		$250.47 1
198 11F1387CP
FRONT CRANK SEAL 		- 1 Enquire
