24 - M2 - Electrical Hardware - 24.1 - 01 - Electrical Hardware

McLaren 625C Coupe

Find Your Part

McLaren 625C Coupe - 24 - M2 - ELECTRICAL HARDWARE - 24.1 - 01 - ELECTRICAL HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11E0022CP HEATSHIELD-WHEEL S24SOR $48.04 To Order
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
11M0426CP Sensor - Exterior Temperature $134.53 To Order
Photo Part No Description Price (each) Stock
11M0589CP Decoupling Ring - Parking Sensor $5.52 To Order
Photo Part No Description Price (each) Stock
11M3114CP SENSOR - PARKING - PALLADIUM GREY Enquire To Order
11M0593CP Sensor - Parking $143.21 To Order
Photo Part No Description Price (each) Stock
11M2699CP HORN - LOW TONE $62.05 To Order
11M0428CP Horn - Low Tone $62.05 To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0433CP SENSOR-ORC-GSAT-FI24 $288.29 To Order
Photo Part No Description Price (each) Stock
00RA299 Bolt - M6x16 - Locking Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC052 WASHER - M6X6.0MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0436CP ANTENNA - KEYLESS GO $190.95 To Order
Photo Part No Description Price (each) Stock
00RA235 BOLT - M5X35 - FLANGED - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
11M0776CP ANTENNA - SATELLITE TRACKING - RF $133.66 To Order
Photo Part No Description Price (each) Stock
11M0777CP DRIVER CARD - SATELLITE TRACKING - RF $248.24 To Order
Photo Part No Description Price (each) Stock
11M1076CP ANTENNA - SATELLITE TRACKING - GSM $114.57 To Order
Photo Part No Description Price (each) Stock
11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS $181.41 To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11M0506CP Antenna - Wireless LAN $181.41 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0438CP Antenna - GPS - Navigation $210.05 To Order
Photo Part No Description Price (each) Stock
11M0430CP SENSOR - WHEEL SPEED - FRONT $190.95 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA233 SCREW - M6X40 - BUTTON - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RA234 SPACER - NYLON - 6.53ID X 12.7OD X 25MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0485CP TRIGGER - TYRE PRESSURE MONITOR $210.05 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0508CP SENSOR-ORC-PSAT $324.63 To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
11M0512CP Bracket - AM/FM Amplifier $143.21 To Order
Photo Part No Description Price (each) Stock
11M0555CP SENSOR-ORC-GSAT-SIS $211.42 To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
11M0590CP Buzzer - Park Distance Control $90.70 To Order
Photo Part No Description Price (each) Stock
11M0502CP BRACKET - INTERIOR FUSEBOX - REAR $286.43 To Order
Photo Part No Description Price (each) Stock
11M0503CP RR HARNESS CARRIER BRACKET $192.19 To Order
Photo Part No Description Price (each) Stock
11M0743CP BUSBAR RETENTION PLATE $57.28 To Order
Photo Part No Description Price (each) Stock
11M0779CP BUSBAR RETENTION PLATE AFT - REAR $28.63 To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $190.95 To Order
Photo Part No Description Price (each) Stock
11M0484CP ANTENNA - TYRE PRESSURE MONITOR - 315MHZ Enquire To Order
11M0437CP ANTENNA - TYRE PRESSURE MONITOR - 433MHZ $286.43 To Order
Photo Part No Description Price (each) Stock
11M2838CP Control Unit - PDC Enquire To Order
11M1196CP Control Unit - PDC - 12C $477.41 To Order
Photo Part No Description Price (each) Stock
11M0515CP SWITCH CONTROL UNIT - STRAP $105.70 To Order
Photo Part No Description Price (each) Stock
11M1353CP RETAINING CLIP - A24IENT AIR T $0.75 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11M2698CP HORN - HIGH TONE $66.82 To Order
11M0427CP Horn - High Tone $62.05 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
11M1159CP Bracket and Shield - Alarm Siren $105.70 To Order
Photo Part No Description Price (each) Stock
11M1285CP NVH PAD - GROMMET - UPPER $38.17 To Order
Photo Part No Description Price (each) Stock
11M2530CP NVH PAD - GROMMET - LOWER - RHD $16.22 To Order
11M2517CP NVH PAD - GROMMET - LOWER - LHD $15.34 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
11M2873CP Bracket - Horn - LH $24.01 To Order
Photo Part No Description Price (each) Stock
11M2872CP Bracket - Horn - RH $24.01 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA523 SCREW - TORX - 3X16 Enquire To Order
View All

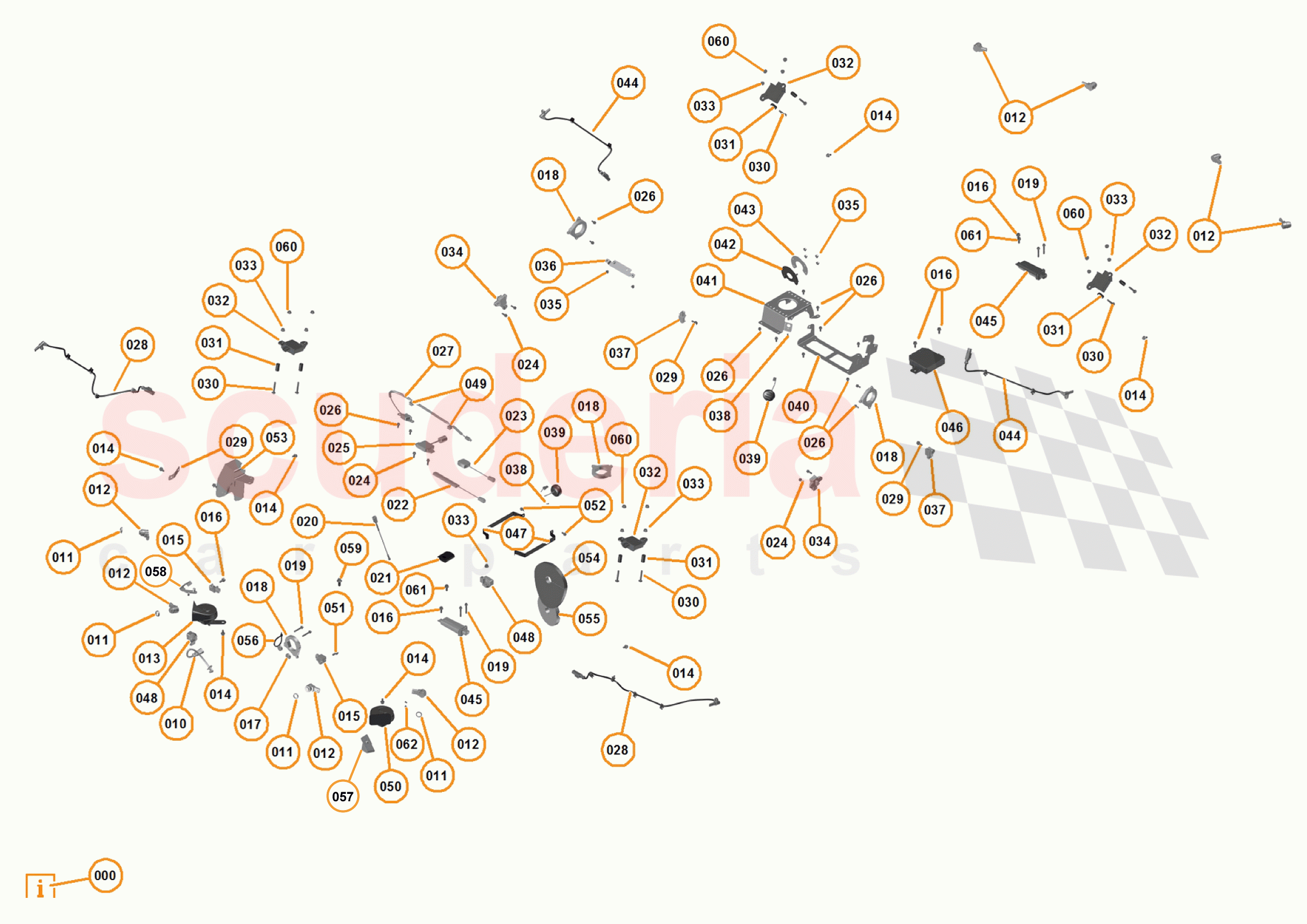

24 - M2 - ELECTRICAL HARDWARE - 24.1 - 01 - ELECTRICAL HARDWARE of McLaren McLaren 625C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$48.04 1
000 00RL004
FELT TAPE
Felt Tape; 		- 1 Enquire
010 11M0426CP
Sensor - Exterior Temperature 		$134.53 1
011 11M0589CP
Decoupling Ring - Parking Sensor 		$5.52 8
012 11M3114CP
SENSOR - PARKING - PALLADIUM GREY
Superseded parts: 11M3114CP; 		- 4 Enquire
012 11M0593CP
Sensor - Parking 		$143.21 8
013 11M2699CP
HORN - LOW TONE 		$62.05 1
013 11M0428CP
Horn - Low Tone 		$62.05 1
014 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 4 Enquire
015 11M0433CP
SENSOR-ORC-GSAT-FI24 		$288.29 2
016 00RA299
Bolt - M6x16 - Locking Hex 		- 2 Enquire
017 00RC052
WASHER - M6X6.0MM 		- 4 Enquire
018 11M0436CP
ANTENNA - KEYLESS GO 		$190.95 5
019 00RA235
BOLT - M5X35 - FLANGED - 8.8 		- 4 Enquire
020 11M0776CP
ANTENNA - SATELLITE TRACKING - RF 		$133.66 2
021 11M0777CP
DRIVER CARD - SATELLITE TRACKING - RF 		$248.24 1
022 11M1076CP
ANTENNA - SATELLITE TRACKING - GSM 		$114.57 1
023 11M0066CP
ANTENNA - SATELLITE TRACKING - VDL - GPS 		$181.41 1
024 00RA063
Screw - M5x16 - Hex 		- 6 Enquire
025 11M0506CP
Antenna - Wireless LAN 		$181.41 1
026 00RA064
BOLT - M5X12 - HEX 		- 18 Enquire
027 11M0438CP
Antenna - GPS - Navigation 		$210.05 1
028 11M0430CP
SENSOR - WHEEL SPEED - FRONT 		$190.95 1
029 00RA120
SCREW - M6X25 - HEX 		- 2 Enquire
030 00RA233
SCREW - M6X40 - BUTTON - FLANGE 		- 8 Enquire
031 00RA234
SPACER - NYLON - 6.53ID X 12.7OD X 25MM 		- 8 Enquire
032 11M0485CP
TRIGGER - TYRE PRESSURE MONITOR 		$210.05 4
033 00RA055
NUT - M6 - LOCKING - HEX 		- 8 Enquire
034 11M0508CP
SENSOR-ORC-PSAT 		$324.63 2
035 00RA054
Nut - M5 - Lock Hex 		- 10 Enquire
036 11M0512CP
Bracket - AM/FM Amplifier 		$143.21 1
037 11M0555CP
SENSOR-ORC-GSAT-SIS 		$211.42 2
038 00RA140
SCREW - 3X8 - TORX 		- 2 Enquire
039 11M0590CP
Buzzer - Park Distance Control 		$90.70 2
040 11M0502CP
BRACKET - INTERIOR FUSEBOX - REAR 		$286.43 1
041 11M0503CP
RR HARNESS CARRIER BRACKET 		$192.19 1
042 11M0743CP
BUSBAR RETENTION PLATE 		$57.28 1
043 11M0779CP
BUSBAR RETENTION PLATE AFT - REAR 		$28.63 1
044 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$190.95 1
045 11M0484CP
ANTENNA - TYRE PRESSURE MONITOR - 315MHZ 		- 2 Enquire
045 11M0437CP
ANTENNA - TYRE PRESSURE MONITOR - 433MHZ 		$286.43 2
046 11M2838CP
Control Unit - PDC
Superseded parts: 11M2838CP; 		- 1 Enquire
046 11M1196CP
Control Unit - PDC - 12C 		$477.41 1
047 11M0515CP
SWITCH CONTROL UNIT - STRAP 		$105.70 2
048 11M1353CP
RETAINING CLIP - A24IENT AIR T 		$0.75 1
049 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 2 Enquire
050 11M2698CP
HORN - HIGH TONE 		$66.82 1
050 11M0427CP
Horn - High Tone 		$62.05 1
051 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
052 00RA372
BOLT - HEX HEAD - LOCK - M5X25 - 8.8 		- 2 Enquire
053 11M1159CP
Bracket and Shield - Alarm Siren 		$105.70 1
054 11M1285CP
NVH PAD - GROMMET - UPPER 		$38.17 1
055 11M2530CP
NVH PAD - GROMMET - LOWER - RHD 		$16.22 1
055 11M2517CP
NVH PAD - GROMMET - LOWER - LHD
Superseded parts: 11M1286CP; 		$15.34 1
056 00RL012
CABLE TIE - 300X4.6MM 		- 4 Enquire
057 11M2873CP
Bracket - Horn - LH 		$24.01 1
058 11M2872CP
Bracket - Horn - RH 		$24.01 1
059 00RA002
BOLT - M8X20 - HEX 		- 2 Enquire
060 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 8 Enquire
061 00RA061
Screw - M6x16 - Flange Hex 		- 2 Enquire
062 00RA523
SCREW - TORX - 3X16 		- 2 Enquire
