41 - WIRING HARNESS - 41.2 - BODY WIRING HARNESS of McLaren McLaren 620R

View All

McLaren 620R - 41 - WIRING HARNESS - 41.2 - BODY WIRING HARNESS

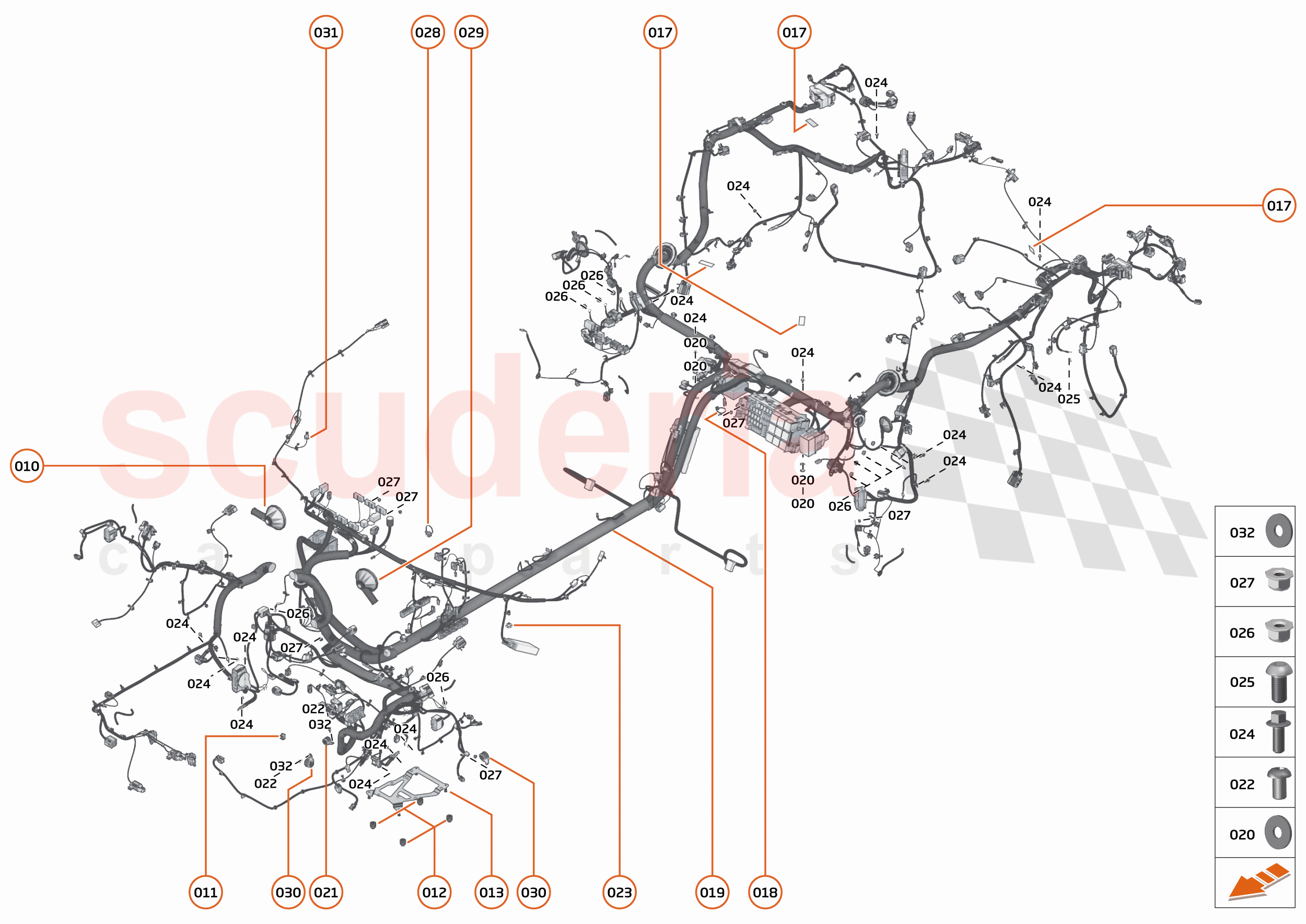

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M1285CP	NVH PAD - GROMMET - UPPER	$38.31	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0045CP	Mount - Anti-Vibration - Rubber	$38.56	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL004	FELT TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA256CP	HARNESS - BODY OCM LHD	Enquire	To Order
	13MA260CP	HARNESS - BODY OCM RHD	$18,012.69	To Order
	13MA258CP	HARNESS - BODY OCM LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA602	BOLT - M6X1X10 - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA394	STUD - 316-M1/B23 - M5X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA179	SCREW - M6X10-10.9 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order
	11M1324CP	EDGE CLIP TIE WRAP-RIGHT ANGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2530CP	NVH PAD - GROMMET - LOWER - RHD	$16.27	To Order
	11M2517CP	NVH PAD - GROMMET - LOWER - LHD	$15.40	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB097	P-CLIP - DIA 25 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0555CP	CONNECTOR HOLDER - SINGLE	$13.48	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC008	WASHER - M6X12.5X0.9	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M1285CP	NVH PAD - GROMMET - UPPER	11M1285CP NVH PAD - GROMMET - UPPER	$38.31	1
011	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL	-	1	Enquire
012	11C0045CP	Mount - Anti-Vibration - Rubber	11C0045CP Mount - Anti-Vibration - Rubber	$38.56	4
017	00RL004	FELT TAPE	00RL004 FELT TAPE Color codes: TAPE-FELT;	-	1	Enquire
018	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	1	Enquire
018	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM	-	1	Enquire
019	13MA256CP	HARNESS - BODY OCM LHD	13MA256CP HARNESS - BODY OCM LHD	-	1	Enquire
019	13MA260CP	HARNESS - BODY OCM RHD	13MA260CP HARNESS - BODY OCM RHD	$18,012.69	1
019	13MA258CP	HARNESS - BODY OCM LHD	13MA258CP HARNESS - BODY OCM LHD	-	1	Enquire
020	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	4	Enquire
021	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20	-	1	Enquire
022	00RA602	BOLT - M6X1X10 - TORX	00RA602 BOLT - M6X1X10 - TORX	-	2	Enquire
023	00RA394	STUD - 316-M1/B23 - M5X12	00RA394 STUD - 316-M1/B23 - M5X12	-	1	Enquire
024	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	16	Enquire
025	00RA179	SCREW - M6X10-10.9 - BUTTON	00RA179 SCREW - M6X10-10.9 - BUTTON	-	1	Enquire
026	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX	-	9	Enquire
027	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	5	Enquire
028	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM	-	1	Enquire
028	11M1324CP	EDGE CLIP TIE WRAP-RIGHT ANGLE	11M1324CP EDGE CLIP TIE WRAP-RIGHT ANGLE	-	1	Enquire
029	11M2530CP	NVH PAD - GROMMET - LOWER - RHD	11M2530CP NVH PAD - GROMMET - LOWER - RHD	$16.27	1
029	11M2517CP	NVH PAD - GROMMET - LOWER - LHD	11M2517CP NVH PAD - GROMMET - LOWER - LHD	$15.40	1
030	00RB097	P-CLIP - DIA 25 - M6	00RB097 P-CLIP - DIA 25 - M6	-	2	Enquire
031	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE	$13.48	4
032	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9	-	2	Enquire
