McLaren 620R - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.95 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $212.51 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $212.51 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $10.61 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $10.61 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $48.29 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $48.29 To Order
Photo Part No Description Price (each) Stock
11A8382RP CONDUCTIVITY LINK - ROLL HOOP - LH $62.77 To Order
Photo Part No Description Price (each) Stock
11A8383RP CONDUCTIVITY LINK - ROLL HOOP - RH $62.77 To Order
Photo Part No Description Price (each) Stock
13AA680MP ASSY HARNESS BAR - FED Enquire To Order
Photo Part No Description Price (each) Stock
00RA535 BOLT - M10X1.5X55 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA611 BLT-HX-HD-FL-M8X1X30-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
13AA575MP ROLL HOOP-WASHER PLATE $106.24 To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
13A7155MP ASSY HARNESS BAR $3,992.47 To Order
View All

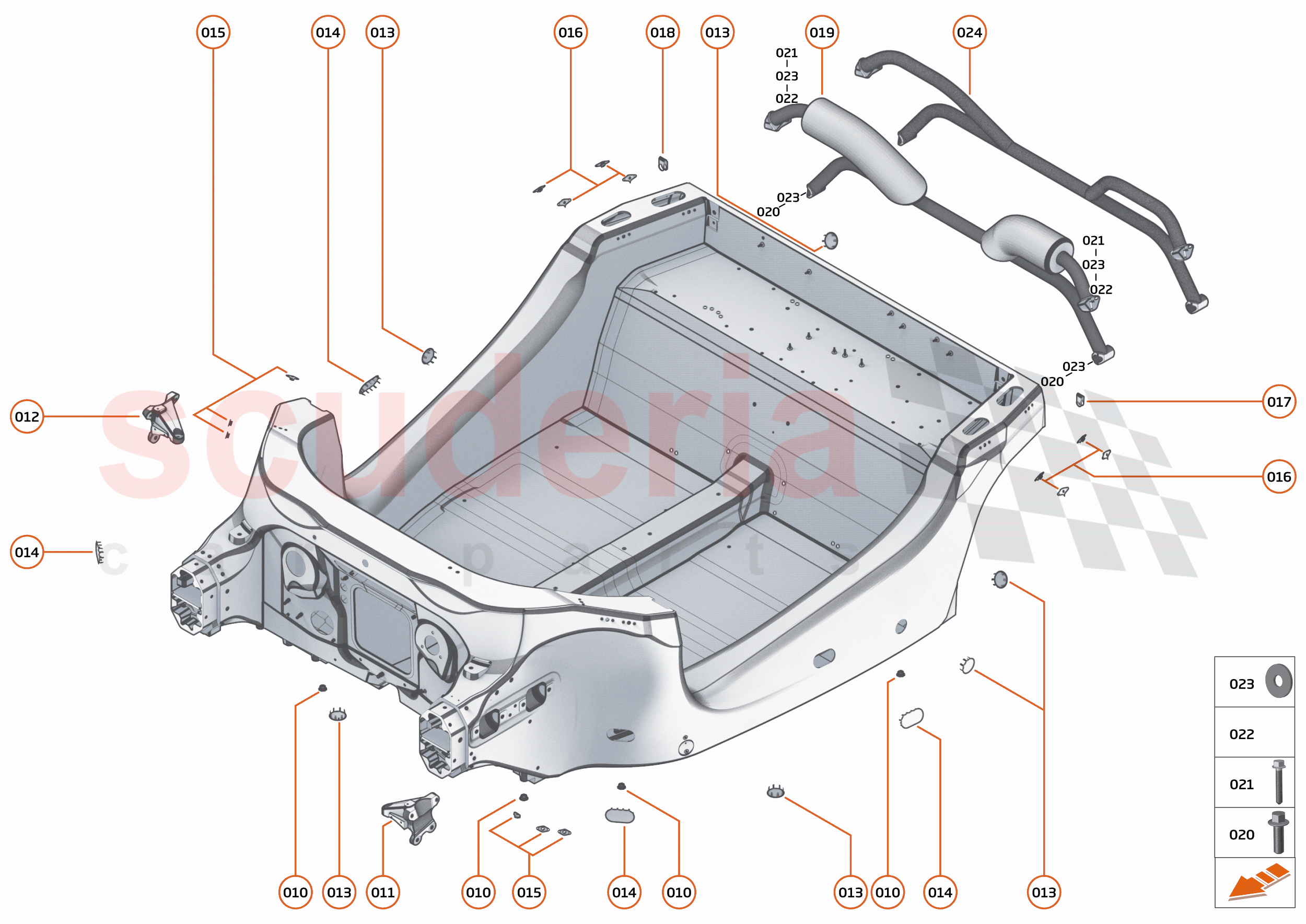

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11AA108CP
BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706 		$3.08 -
010 11A5736CP
PLUG - TUB DATUM 		$6.95 4
011 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$212.51 1
012 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$212.51 1
013 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$10.61 6
014 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$10.61 4
015 11A7572CP
NUT PLATE - A-POST - M8 		$48.29 6
016 11A7573CP
NUT PLATE - B-POST - M8 		$48.29 -
017 11A8382RP
CONDUCTIVITY LINK - ROLL HOOP - LH 		$62.77 1
018 11A8383RP
CONDUCTIVITY LINK - ROLL HOOP - RH 		$62.77 1
019 13AA680MP
ASSY HARNESS BAR - FED 		- 1 Enquire
020 00RA535
BOLT - M10X1.5X55 - HEX 		- 2 Enquire
021 00RA611
BLT-HX-HD-FL-M8X1X30-10.9-72 		- 2 Enquire
022 13AA575MP
ROLL HOOP-WASHER PLATE 		$106.24 2
023 00RC015
WASHER - M8X24X2 		- 4 Enquire
024 13A7155MP
ASSY HARNESS BAR 		$3,992.47 1
