8 - Exterior Ornamentation - 8.5 - Luggage

McLaren 620R

Find Your Part

McLaren 620R - 8 - EXTERIOR ORNAMENTATION - 8.5 - LUGGAGE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA320CP FOAM - SHROUD - HVAC $8.23 To Order
Photo Part No Description Price (each) Stock
31AA210CP HVAC TOP HAT $29.28 To Order
Photo Part No Description Price (each) Stock
00RB172 CLIP - EXPANDING Enquire To Order
Photo Part No Description Price (each) Stock
00RB173 STUD - CLIP - EXPANDING Enquire To Order
Photo Part No Description Price (each) Stock
00RB215 CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
13A3882CP HATCH - LUGGAGE BIN - FEDERAL Enquire To Order
13A3874CP HATCH - LUGGAGE BIN - REST OF WORLD $47.94 To Order
Photo Part No Description Price (each) Stock
11A5697CP OUTLET - 12V $124.68 To Order
Photo Part No Description Price (each) Stock
11A3519CP SWITCH - LUGGAGE COMPARTMENT - LID RELEASE - US Enquire To Order
Photo Part No Description Price (each) Stock
00RA238 SCREW - M6X16 - LOCK BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA584 SCREW - BUTTON - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
31AA242CP ASSY-LUGGAGE BIN-FRNT-FIRE EXT $1,534.66 To Order
31AA245CP ASSY LUGGAGE BIN FRNT $1,255.00 To Order
Photo Part No Description Price (each) Stock
31AA165CP SEAL - LUGGAGE BIN DUCT $40.33 To Order
Photo Part No Description Price (each) Stock
31AA246CP SEAL - LUGGAGE BIN DUCT LH $67.56 To Order
Photo Part No Description Price (each) Stock
11N2342CP LUGGAGE BIN NET $91.69 To Order
Photo Part No Description Price (each) Stock
11N2343CP HOOK - LUGGAGE BIN NET $4.59 To Order
Photo Part No Description Price (each) Stock
13A3439CP LUGGAGE BIN - FIXING - CAP $33.78 To Order
Photo Part No Description Price (each) Stock
13A3868CP LUGGAGE BIN - FIXING - CAP - PERIMETER-LH $37.95 To Order
Photo Part No Description Price (each) Stock
13A3869CP LUGGAGE BIN - FIXING - CAP - PERIMETER-RH $37.95 To Order
Photo Part No Description Price (each) Stock
31AA108CP ASSY LUGGAGE BIN DUCTS $6,081.14 To Order
Photo Part No Description Price (each) Stock
13A5452CP NVH PAD - LUGGAGE BIN $57.54 To Order
Photo Part No Description Price (each) Stock
13A5839CP FOAM SUPPORT-LUGGAGE BIN LIP $6.31 To Order
Photo Part No Description Price (each) Stock
13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN $38.34 To Order
View All

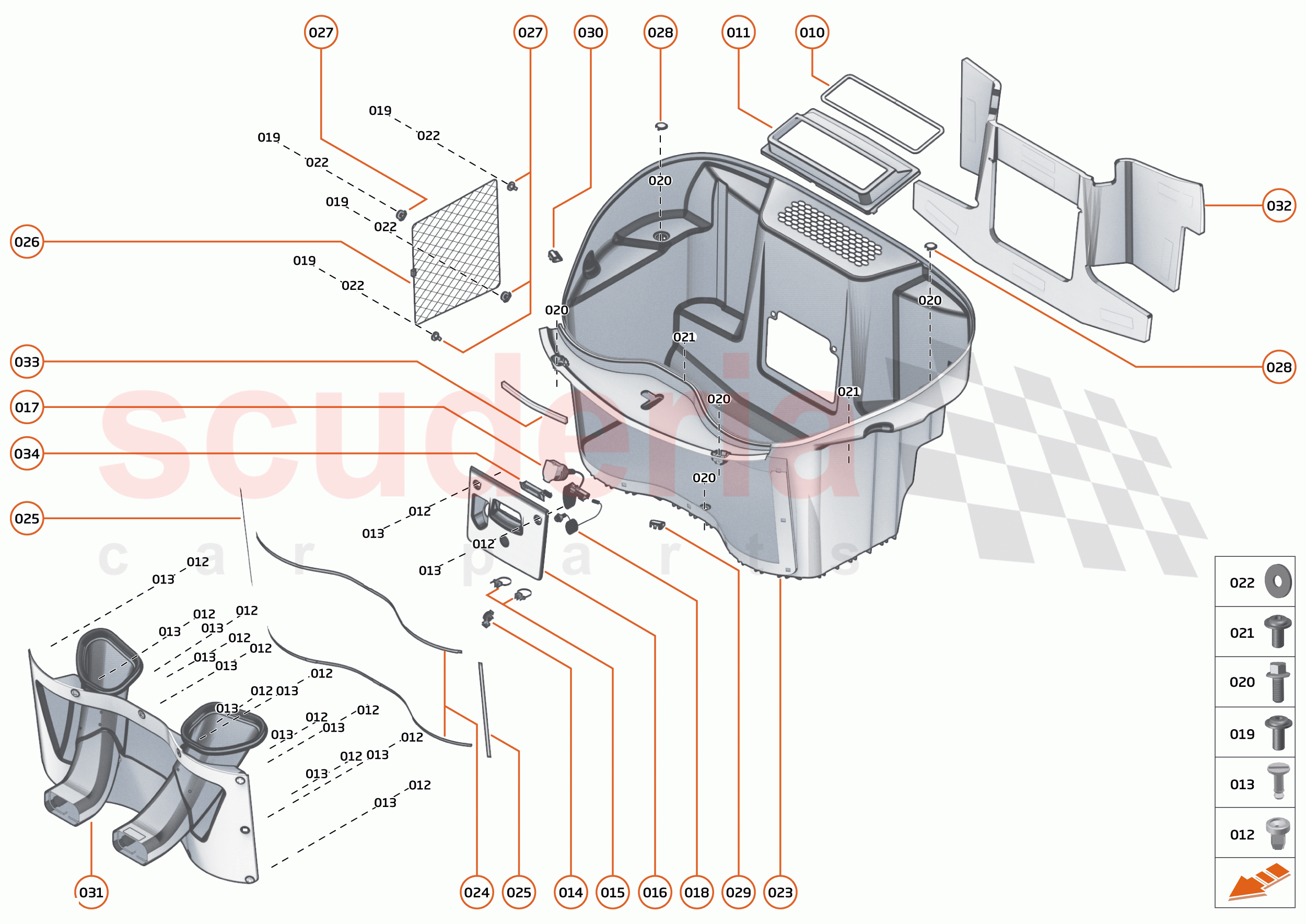

8 - EXTERIOR ORNAMENTATION - 8.5 - LUGGAGE of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA320CP
FOAM - SHROUD - HVAC 		$8.23 1
011 31AA210CP
HVAC TOP HAT 		$29.28 1
012 00RB172
CLIP - EXPANDING 		- 2 Enquire
013 00RB173
STUD - CLIP - EXPANDING 		- 2 Enquire
014 00RB215
CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK 		- 1 Enquire
015 00RL011
EDGE CLIP - 202X4.6MM 		- 1 Enquire
016 13A3882CP
HATCH - LUGGAGE BIN - FEDERAL 		- 1 Enquire
016 13A3874CP
HATCH - LUGGAGE BIN - REST OF WORLD 		$47.94 1
017 11A5697CP
OUTLET - 12V 		$124.68 1
018 11A3519CP
SWITCH - LUGGAGE COMPARTMENT - LID RELEASE - US 		- 1 Enquire
019 00RA238
SCREW - M6X16 - LOCK BUTTON 		- 4 Enquire
020 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
021 00RA584
SCREW - BUTTON - TORX - M6X16 		- 3 Enquire
022 00RC043
WASHER - M6XOD25 		- 4 Enquire
023 31AA242CP
ASSY-LUGGAGE BIN-FRNT-FIRE EXT 		$1,534.66 1
023 31AA245CP
ASSY LUGGAGE BIN FRNT 		$1,255.00 1
024 31AA165CP
SEAL - LUGGAGE BIN DUCT 		$40.33 -
025 31AA246CP
SEAL - LUGGAGE BIN DUCT LH 		$67.56 1
026 11N2342CP
LUGGAGE BIN NET 		$91.69 1
027 11N2343CP
HOOK - LUGGAGE BIN NET 		$4.59 4
028 13A3439CP
LUGGAGE BIN - FIXING - CAP 		$33.78 2
029 13A3868CP
LUGGAGE BIN - FIXING - CAP - PERIMETER-LH 		$37.95 1
030 13A3869CP
LUGGAGE BIN - FIXING - CAP - PERIMETER-RH 		$37.95 1
031 31AA108CP
ASSY LUGGAGE BIN DUCTS 		$6,081.14 1
032 13A5452CP
NVH PAD - LUGGAGE BIN 		$57.54 1
033 13A5839CP
FOAM SUPPORT-LUGGAGE BIN LIP 		$6.31 1
034 13A5971CP
LAMP - LICENCE PLATE - LUGGAGE BIN 		$38.34 1
035 31AA247CP
SEAL - LUGGAGE BIN DUCT RH 		$67.56 1
