McLaren 600LT Spider - 28 - FUEL TANK - 28.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB074 Swivel Clip - 11-13mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
11H0301CP Bung - Check Valve $4.59 To Order
Photo Part No Description Price (each) Stock
11K0027CP ASSY-FUEL PUMP-LH 24 $1,033.99 To Order
Photo Part No Description Price (each) Stock
11K0047CP ASSY-PLATE-ACCESS 24 $115.61 To Order
Photo Part No Description Price (each) Stock
11K0054CP BRACKET - CHARCOAL CANISTER $143.59 To Order
Photo Part No Description Price (each) Stock
11K0057CP FILTER - CHARCOAL $612.72 To Order
Photo Part No Description Price (each) Stock
11K0134CP PIPE - PURGE - FUEL TANK $211.99 To Order
Photo Part No Description Price (each) Stock
11K0151CP PIPE-MOULDED-CANNISTER-UPR $211.99 To Order
Photo Part No Description Price (each) Stock
11K0153CP BREATHER DUCT - FUEL TANK - LOWER $52.64 To Order
Photo Part No Description Price (each) Stock
11K0250CP SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FORRETAININGRING13K0066CP $43.34 To Order
Photo Part No Description Price (each) Stock
11K0004CP PUMP - FUEL - RH $1,033.99 To Order
Photo Part No Description Price (each) Stock
11K0009CP FILTER - FUEL $363.82 To Order
Photo Part No Description Price (each) Stock
13K0066CP RETAINING RING - FUEL TANK - ACCESS PLATE $33.72 To Order
Photo Part No Description Price (each) Stock
13M1258CP HARNESS - FUEL CELL $818.68 To Order
Photo Part No Description Price (each) Stock
13KA014CP BREATHER HOSE - FUEL TANK - CANISTER $89.08 To Order
Photo Part No Description Price (each) Stock
13KA015CP BREATHER HOSE - FUEL TANK - CANISTER $89.08 To Order
Photo Part No Description Price (each) Stock
13KA017CP PAD - FUEL TANK - SEPARATOR $5.29 To Order
Photo Part No Description Price (each) Stock
13K0077CP PAD - FUEL TANK - BULKHEAD - UPPER-RH $17.21 To Order
Photo Part No Description Price (each) Stock
13KA049CP Fuel Tank - Assy - No Pumps & Controllers $2,853.07 To Order
View All

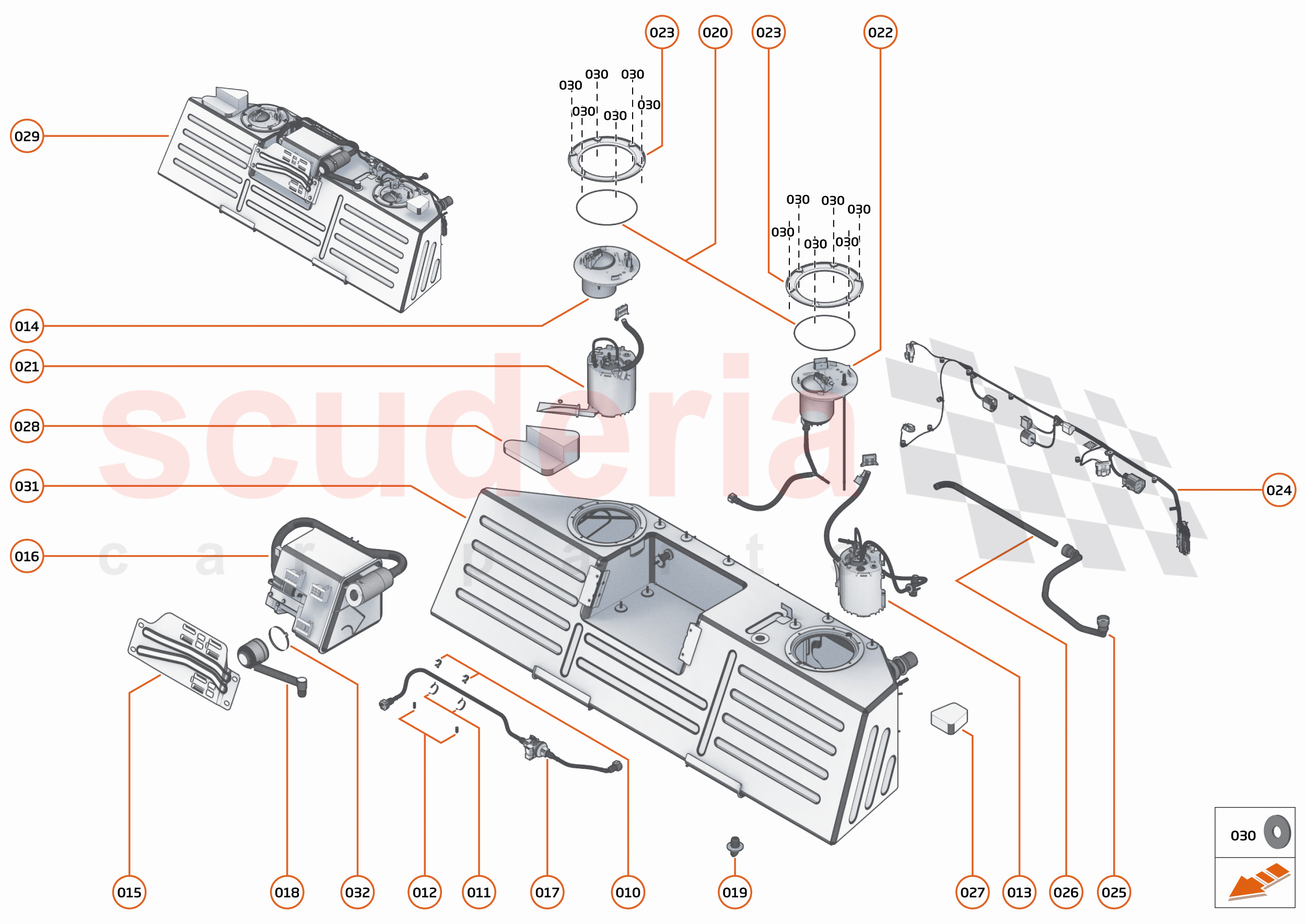

28 - FUEL TANK - 28.1 - FUEL TANK of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB074
Swivel Clip - 11-13mm - Female 		- 2 Enquire
011 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 2 Enquire
012 11H0301CP
Bung - Check Valve 		$4.59 2
013 11K0027CP
ASSY-FUEL PUMP-LH 24 		$1,033.99 1
014 11K0047CP
ASSY-PLATE-ACCESS 24 		$115.61 1
015 11K0054CP
BRACKET - CHARCOAL CANISTER 		$143.59 1
016 11K0057CP
FILTER - CHARCOAL 		$612.72 1
017 11K0134CP
PIPE - PURGE - FUEL TANK 		$211.99 1
018 11K0151CP
PIPE-MOULDED-CANNISTER-UPR 		$211.99 1
019 11K0153CP
BREATHER DUCT - FUEL TANK - LOWER 		$52.64 1
020 11K0250CP
SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FORRETAININGRING13K0066CP 		$43.34 2
021 11K0004CP
PUMP - FUEL - RH 		$1,033.99 1
022 11K0009CP
FILTER - FUEL 		$363.82 1
023 13K0066CP
RETAINING RING - FUEL TANK - ACCESS PLATE 		$33.72 2
024 13M1258CP
HARNESS - FUEL CELL 		$818.68 1
025 13KA014CP
BREATHER HOSE - FUEL TANK - CANISTER 		$89.08 1
026 13KA015CP
BREATHER HOSE - FUEL TANK - CANISTER 		$89.08 1
027 13KA017CP
PAD - FUEL TANK - SEPARATOR 		$5.29 1
028 13K0077CP
PAD - FUEL TANK - BULKHEAD - UPPER-RH 		$17.21 1
029 13KA049CP
Fuel Tank - Assy - No Pumps & Controllers 		$2,853.07 1
