2 - Mid Structures - 2.1 - Monocoque

McLaren 600LT

Find Your Part

McLaren 600LT - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4872CP Rivnut - M6 - 0.5-3.0 - 2332-906-0519 $4.81 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $10.61 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $10.61 To Order
Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.95 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $212.45 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $212.45 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $48.27 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $48.27 To Order
View All

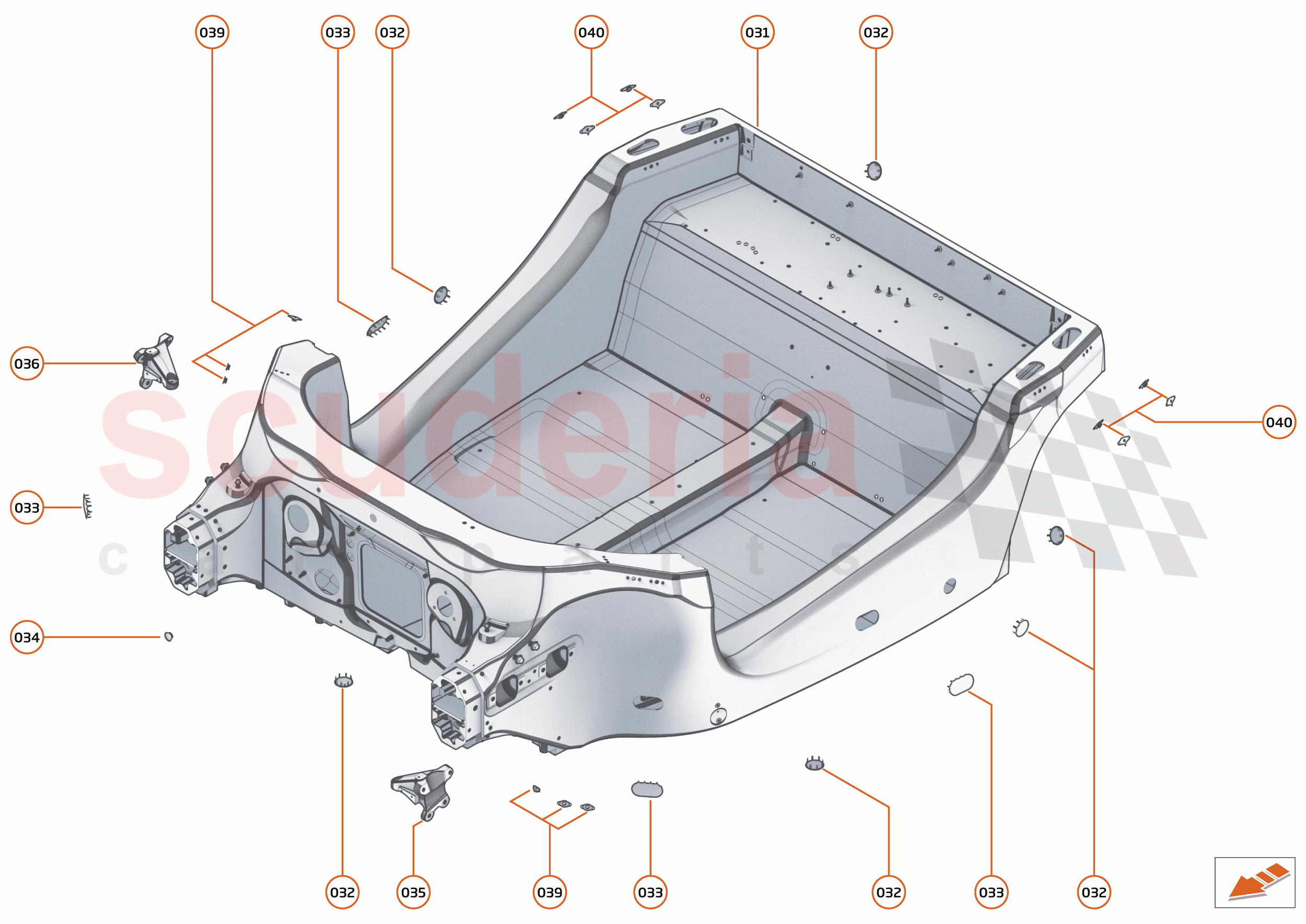

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4759CP
SOP-RNUT-M4-1.75-2.50-2330-704 		$8.67 1
011 11A4761CP
SOP-RNUT-M5-1.00-2.00-2330-705 		$5.20 1
012 11A4762CP
Helicoil - M6x1D - 1084-6CNW060 		$9.06 1
013 11A4763CP
Helicoil - M8x1.5D - 1084-8CNW120 		$10.61 1
014 11A4766CP
Helicoil - M10x2D - 1084-10CNW200 		$5.01 1
015 11A4768CP
SOP-HELICOIL-M12x2D-1084-12CNW 		$10.61 1
016 11A4769CP
SOP-RIVETSTUD-M5x15-315-3732-7 		$5.58 1
017 11A4770CP
Helicoil - M16x1.5D - 3745-16CNW240 		$15.42 1
018 11A4771CP
Rivet - 2.0-9.5 - HKLP-R8-6 		$5.58 1
019 11A4772CP
Rivnut - M8 - 2.0-3.5 - 2330-708-0035 		$5.40 1
020 11A4773CP
SOP-RIVNUT-M5-3.0-4.0-2330-705 		$5.01 1
021 11A4774CP
SOP-RNUT-M6-1.50-3.00-2330-706 		$5.20 1
022 11A4775CP
Rivnut - M6 - 3.0-4.5 - 2330.706-0045 		$5.20 1
023 11A4776CP
Rivnut - M5 - 2.0-3.0 - 2330.705-0030 		$5.20 1
024 11A4778CP
Clip - Jetpress - EPF233 		$6.54 5
025 11A4781CP
Helicoil - M8x2D - 1084-8CNW160 		$7.31 5
026 11A4782CP
SOP-RIVET STUD-M6x20-315-3732- 		$6.15 5
027 11A4783CP
SOP-RIVNUT-M6-3.0-5.5-2330-706 		$5.20 5
028 11A4791CP
SOP-RIVNUT-M6-0.7-1.5-2330.706 		$6.54 5
029 11A4870CP
Rivnut - M4 - 1.0-2.0 - 2330-104-0020 		$1.90 1
030 11A4871CP
Rivnut - M5 - 0.5-3.0 - 2330-105-0030 		$1.54 1
031 11A4872CP
Rivnut - M6 - 0.5-3.0 - 2332-906-0519 		$4.81 1
032 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$10.61 6
033 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$10.61 4
034 11A5736CP
PLUG - TUB DATUM 		$6.95 1
035 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$212.45 1
036 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$212.45 1
039 11A7572CP
NUT PLATE - A-POST - M8 		$48.27 6
040 11A7573CP
NUT PLATE - B-POST - M8 		$48.27 8
