McLaren 570S Spider - 7 - OPENING ROOF SYSTEMS - 7.4 - CONVERTIBLE ROOF (RHT) - SEALS - DRAIN HOSES - ELECTRICAL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A8322SP RHT - SEAL - COMPOUND $62.31 To Order
Photo Part No Description Price (each) Stock
11A4030SP ECU - RHT $752.31 To Order
Photo Part No Description Price (each) Stock
11A4031SP Wiring Harness - RHT $983.79 To Order
Photo Part No Description Price (each) Stock
11A4009SP RHT - Sealing - Tonneau Inner - Complete Kit $1,388.90 To Order
Photo Part No Description Price (each) Stock
13AA426SP Seal - Roof Panel - Front Enquire To Order
Photo Part No Description Price (each) Stock
11A4011SP RHT - Roof - Carrier Seal Kit - Front $250.75 To Order
Photo Part No Description Price (each) Stock
13AA554SP SEAL - ROOF PANEL - REAR Enquire To Order
Photo Part No Description Price (each) Stock
11A4013SP RHT - Seal Kit - Back Light Upper Carrier $231.47 To Order
Photo Part No Description Price (each) Stock
11A4014SP RHT - Seal Kit - Back Light $2,256.98 To Order
Photo Part No Description Price (each) Stock
11A4006SP BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH $601.87 To Order
Photo Part No Description Price (each) Stock
11A6611SP RHT - Seal - Bridging - LH $28.92 To Order
Photo Part No Description Price (each) Stock
11A6612SP RHT - Seal - Bridging - RH $38.56 To Order
Photo Part No Description Price (each) Stock
13AA743SP SEAL - LEADING EDGE - TONNEAU COVER $29.10 To Order
Photo Part No Description Price (each) Stock
11A4006SP BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH $601.87 To Order
Photo Part No Description Price (each) Stock
11A4164SP Release Button - Tonneau - Luggage Compartment Lid - US Enquire To Order
Photo Part No Description Price (each) Stock
13AA019SP Seal Finisher - Front - LH Enquire To Order
Photo Part No Description Price (each) Stock
13AA407SP SEAL FINISHER - FRONT - RH $126.18 To Order
Photo Part No Description Price (each) Stock
13AA409SP SEAL FINISHER - REAR - RH $155.31 To Order
Photo Part No Description Price (each) Stock
13AA408SP SEAL FINISHER - REAR - LH $155.31 To Order
View All

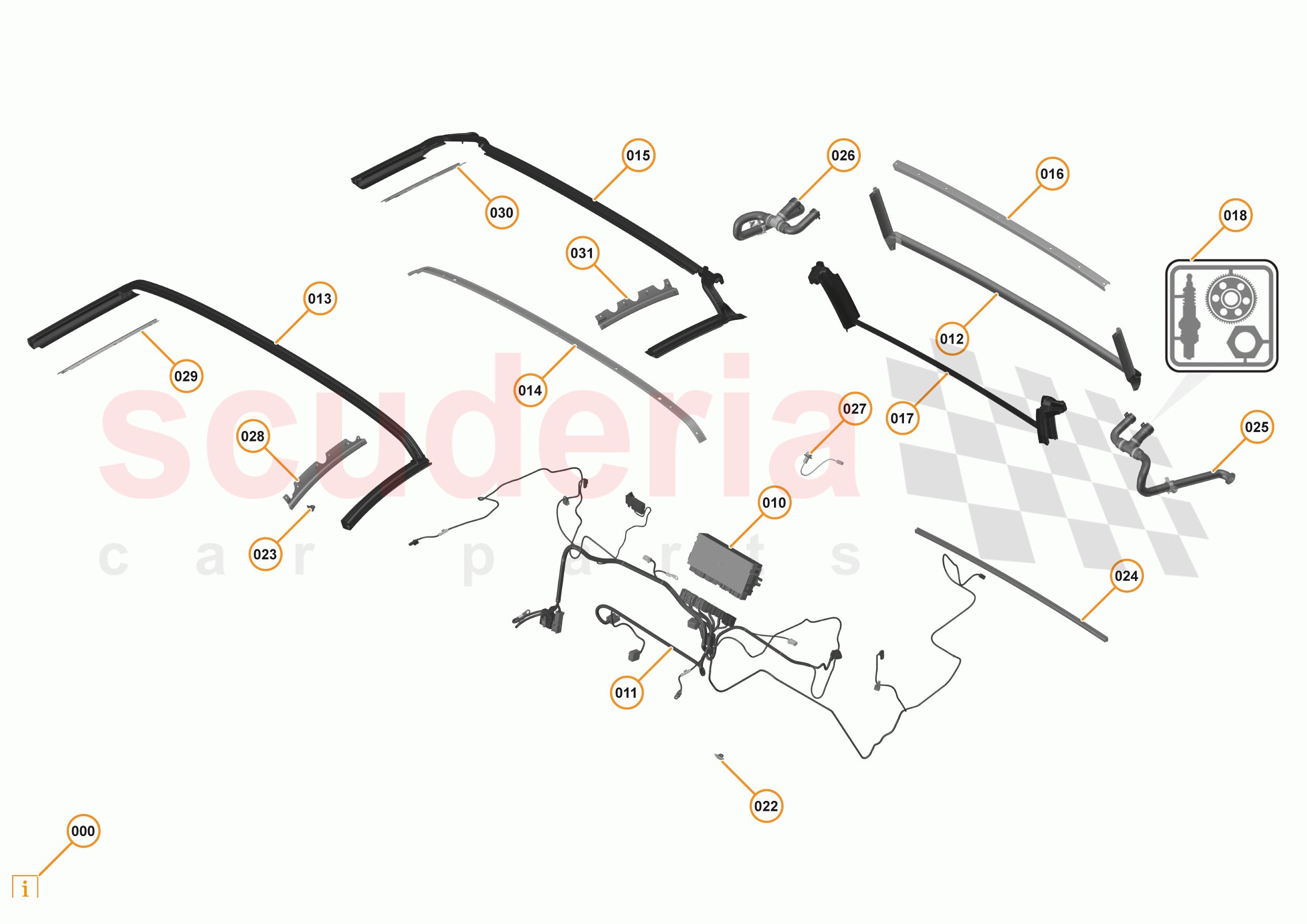

7 - OPENING ROOF SYSTEMS - 7.4 - CONVERTIBLE ROOF (RHT) - SEALS - DRAIN HOSES - ELECTRICAL of McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A8322SP
RHT - SEAL - COMPOUND 		$62.31 1
010 11A4030SP
ECU - RHT
ECU - RHT; 		$752.31 1
011 11A4031SP
Wiring Harness - RHT 		$983.79 1
012 11A4009SP
RHT - Sealing - Tonneau Inner - Complete Kit 		$1,388.90 1
013 13AA426SP
Seal - Roof Panel - Front 		- 1 Enquire
014 11A4011SP
RHT - Roof - Carrier Seal Kit - Front 		$250.75 1
015 13AA554SP
SEAL - ROOF PANEL - REAR 		- 1 Enquire
016 11A4013SP
RHT - Seal Kit - Back Light Upper Carrier 		$231.47 1
017 11A4014SP
RHT - Seal Kit - Back Light 		$2,256.98 1
018 11A4006SP
BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH 		$601.87 1
022 11A6611SP
RHT - Seal - Bridging - LH 		$28.92 1
023 11A6612SP
RHT - Seal - Bridging - RH 		$38.56 1
024 13AA743SP
SEAL - LEADING EDGE - TONNEAU COVER 		$29.10 1
025 11A4006SP
BACKLIGHT WATER DRAINAGE KIT - SPIDER - LH AND RH 		$601.87 1
027 11A4164SP
Release Button - Tonneau - Luggage Compartment Lid - US 		- 1 Enquire
028 13AA019SP
Seal Finisher - Front - LH 		- 1 Enquire
029 13AA407SP
SEAL FINISHER - FRONT - RH 		$126.18 1
030 13AA409SP
SEAL FINISHER - REAR - RH
Superseded parts: 13AA025SP; 		$155.31 1
031 13AA408SP
SEAL FINISHER - REAR - LH
Superseded parts: 13AA022SP; 		$155.31 1
