49 - Interior Systems - 49.13 - Seat Assembly - Components & Hardware - Manual

McLaren 570S Spider

Find Your Part

McLaren 570S Spider - 49 - INTERIOR SYSTEMS - 49.13 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - MANUAL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13NA082CP Side Valance - Inboard - Manual - LH - Areia $1,061.79 To Order
13NA080CP Side Valance - Inboard - Manual - LH - Andesite $1,061.79 To Order
13NA098CP Side Valance - Outboard - Manual - RH - Areia $1,061.79 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13NA099CP Side Valance - Outboard - Manual - LH - Areia $1,061.79 To Order
13NA097CP Side Valance - Outboard - Manual - LH - Andesite $1,200.25 To Order
13NA079CP Side Valance - Inboard - Manual - RH - Andesite $1,180.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13NA029CP Seat - Backing and Cushion - Foam - Manual - Hybrid $1,100.22 To Order
Photo Part No Description Price (each) Stock
13NA068CP Backrest Shell Assembly - Manual - Hybrid - Carbon $1,061.79 To Order
13NA067CP Backrest Shell Assembly - Manual - Hybrid - Black $1,061.79 To Order
Photo Part No Description Price (each) Stock
13NA070CP Lever - Backrest Recline - Andesite - LH $902.68 To Order
13NA069CP Lever - Backrest Recline - Andesite - RH $902.68 To Order
Photo Part No Description Price (each) Stock
13NA086CP Assy - Seat Base - Manual - LH $1,200.25 To Order
13NA085CP Assy - Seat Base - Manual - RH $1,200.25 To Order
View All

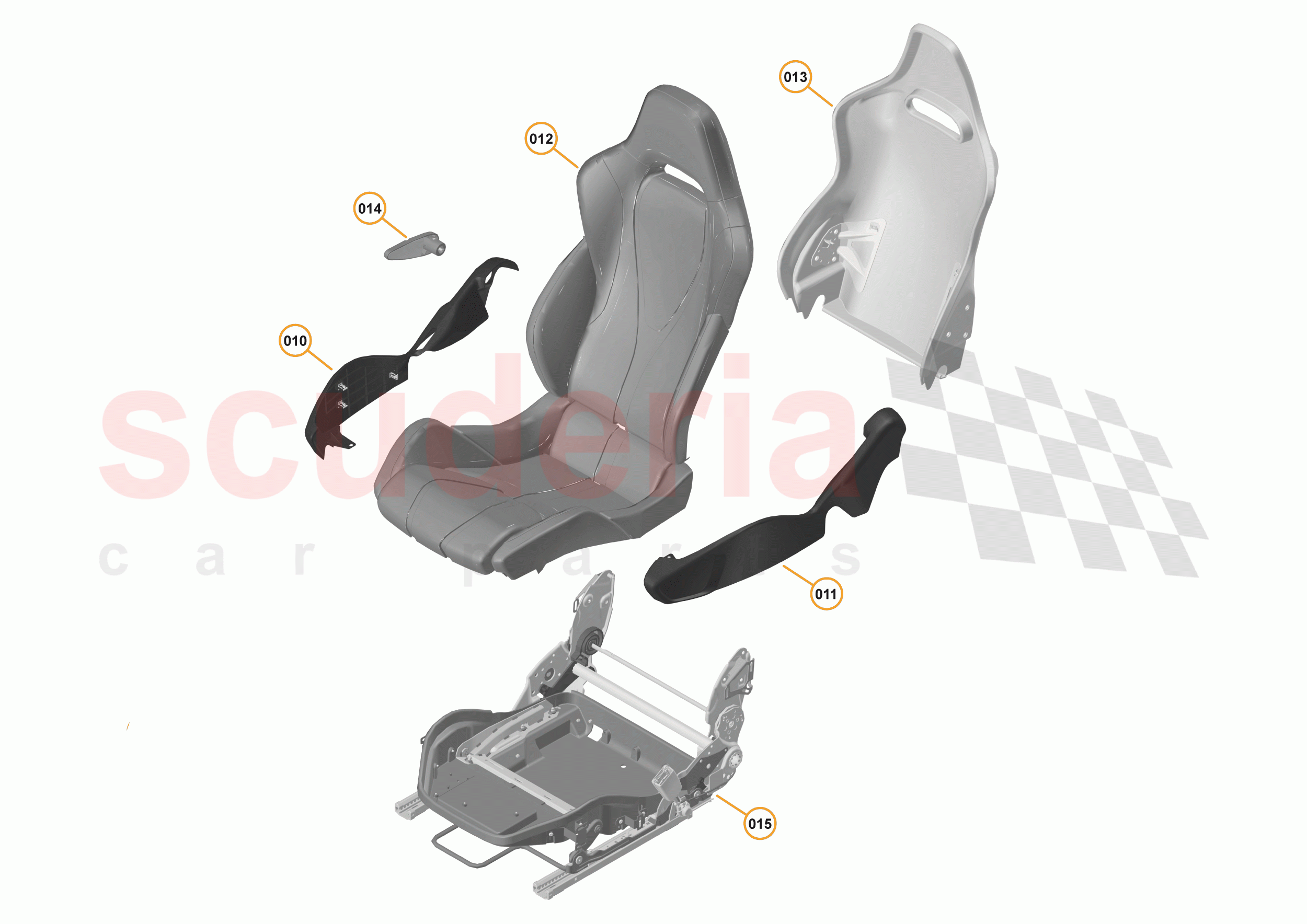

49 - INTERIOR SYSTEMS - 49.13 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - MANUAL of McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13NA082CP
Side Valance - Inboard - Manual - LH - Areia 		$1,061.79 1
010 13NA080CP
Side Valance - Inboard - Manual - LH - Andesite 		$1,061.79 1
010 13NA098CP
Side Valance - Outboard - Manual - RH - Areia 		$1,061.79 1
010 13NA096CP
Side Valance - Outboard - Manual - RH - Andesite 		$1,061.79 1
011 13NA099CP
Side Valance - Outboard - Manual - LH - Areia 		$1,061.79 1
011 13NA097CP
Side Valance - Outboard - Manual - LH - Andesite 		$1,200.25 1
011 13NA079CP
Side Valance - Inboard - Manual - RH - Andesite 		$1,180.24 1
011 13NA081CP
Side Valance - Inboard - Manual - RH - Areia 		$1,061.79 1
012 13NA029CP
Seat - Backing and Cushion - Foam - Manual - Hybrid 		$1,100.22 2
013 13NA068CP
Backrest Shell Assembly - Manual - Hybrid - Carbon 		$1,061.79 2
013 13NA067CP
Backrest Shell Assembly - Manual - Hybrid - Black 		$1,061.79 2
014 13NA070CP
Lever - Backrest Recline - Andesite - LH 		$902.68 1
014 13NA069CP
Lever - Backrest Recline - Andesite - RH 		$902.68 1
015 13NA086CP
Assy - Seat Base - Manual - LH 		$1,200.25 1
015 13NA085CP
Assy - Seat Base - Manual - RH 		$1,200.25 1
