McLaren 540C Coupe - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA803CP FRAME ASSY - REAR $52,089.35 To Order
Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM $14.46 To Order
Photo Part No Description Price (each) Stock
11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM $9.98 To Order
Photo Part No Description Price (each) Stock
11A1734CP Shim - 0.5mm - Rear - Lower $13.50 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $105.52 To Order
Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $105.52 To Order
Photo Part No Description Price (each) Stock
11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM $24.13 To Order
Photo Part No Description Price (each) Stock
11A1241CP Shim - 1mm - Rear - Upper $15.42 To Order
Photo Part No Description Price (each) Stock
11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 $14.46 To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
14AA942CP CROSS BEAM - TRANSMISSION FLOOR $1,343.23 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $1.90 To Order
Photo Part No Description Price (each) Stock
13AA511CP CRASH CAN ASSY REAR RH $1,680.29 To Order
Photo Part No Description Price (each) Stock
13AA512CP CRASH CAN ASSY REAR LH $1,673.41 To Order
View All

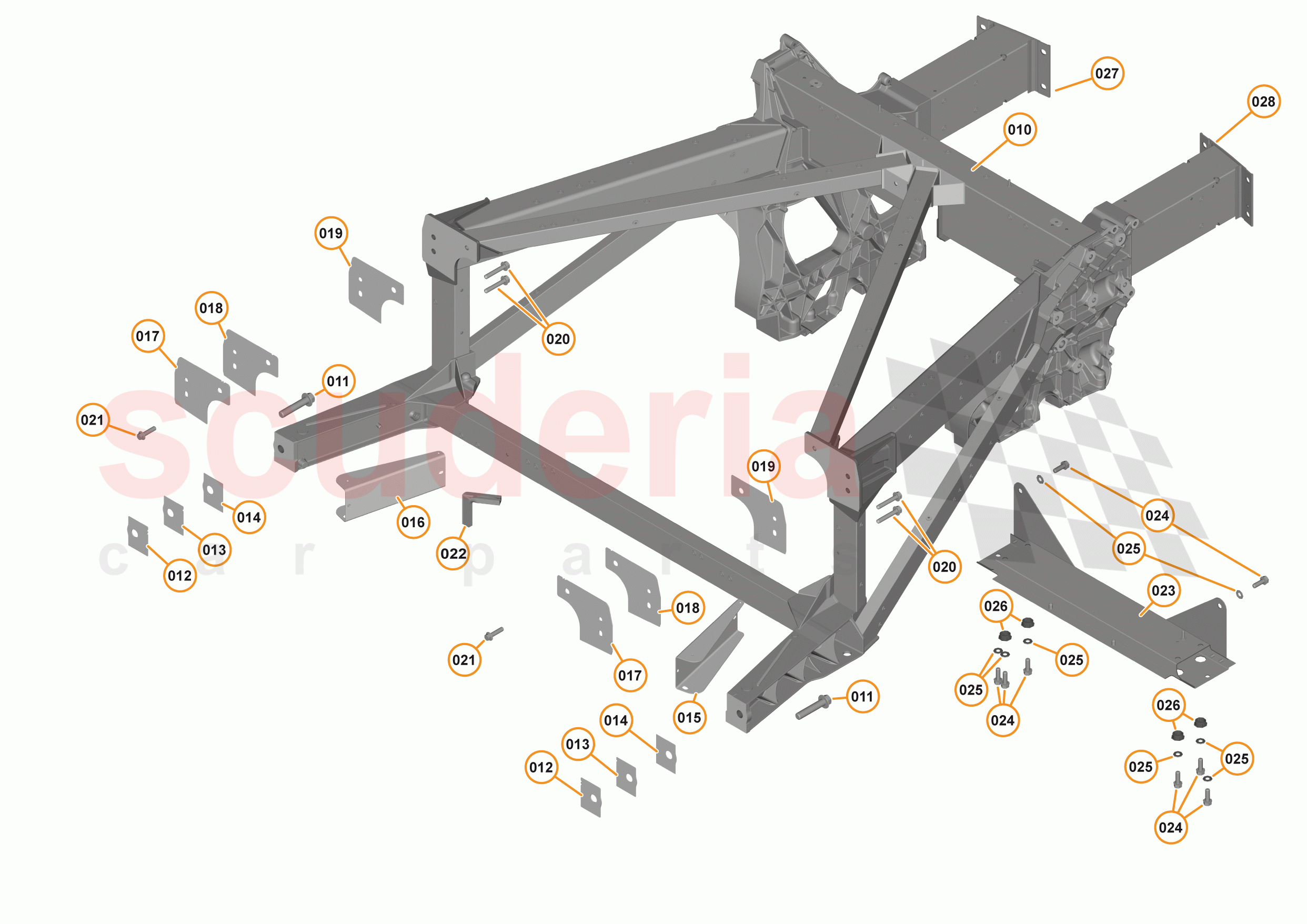

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA803CP
FRAME ASSY - REAR 		$52,089.35 1
011 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2 Enquire
012 11A1732CP
SHIM REAR FRAME TO TUB-LWR-2MM 		$14.46 2
013 11A1733CP
SHIM REAR FRAME TO TUB-LWR-1MM 		$9.98 2
014 11A1734CP
Shim - 0.5mm - Rear - Lower 		$13.50 2
015 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.52 1
016 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.52 1
017 11A1240CP
SHIM REAR FRAME TO24UB-UPR-2MM 		$24.13 2
018 11A1241CP
Shim - 1mm - Rear - Upper 		$15.42 2
019 11A1242CP
SHIM REAR FRAME TO TUB-UPR-0.5 		$14.46 2
020 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4 Enquire
021 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2 Enquire
022 13A4205CP
FOAM - REAR FRAME - LOWER 		$4.59 1
023 14AA942CP
CROSS BEAM - TRANSMISSION FLOOR 		$1,343.23 1
024 00RA457
SCREW - M10X30-10.9 - HEX 		- 8 Enquire
025 00RC065
WASHER - M10X21X2.0 		- 8 Enquire
026 11A4284CP
PLUG - DOME - 25 DIAMETER 		$1.90 4
027 13AA511CP
CRASH CAN ASSY REAR RH 		$1,680.29 1
028 13AA512CP
CRASH CAN ASSY REAR LH 		$1,673.41 1
